Description

ABB UFC760BE42 3BHE004573R0042 is an electrical converter or measurement and control device produced by ABB.The following is a detailed introduction to the product:

1.Product Overview

Brand and Model:ABB UFC760BE42 3BHE004573R0042

Main Application:Usually used in AC circuits of power systems to measure and control current.

2.Functional Features

Conversion Function:

The device can convert the measured AC voltage into a DC current or voltage output in linear proportion.

High Precision:

The reference standard is GB/T 13850-1998(IEC688-1992),the accuracy level is 0.2%F·S,the long-term stability is≤±0.2%/year,and there is no cumulative error.

Fast Response:

The response time is less than 400ms,which is suitable for application scenarios that require fast response.

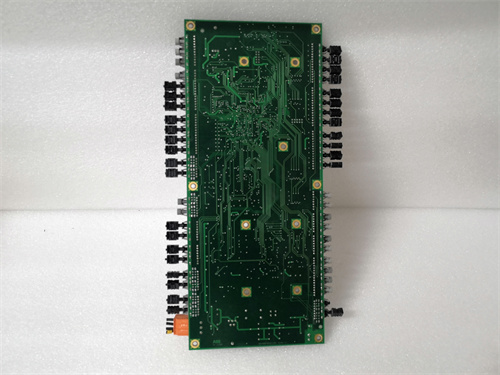

ABB UFC760BE42 3BHE004573R0042

Wide temperature range:

Working conditions are-10~55℃,relative humidity≤95%(no condensation),suitable for various harsh environments.

Multiple protection functions:

It may be equipped with multiple protection functions such as overcurrent protection,overtemperature protection and short circuit protection to ensure the safe operation of the system.

Programmability:

It may have programmable functions,allowing users to customize settings according to actual needs.

Communication interface:

Support Modicon S908 RIO fieldbus protocol,with a communication rate of 1.544Mbps,which is convenient for data exchange and communication with other devices.

III.Technical specifications

Input power consumption:current less than 0.2VA,voltage less than 0.1VA.

Operating frequency:nominal frequency±10%.

Output load:current output rated 10V voltage drop,maximum 15V voltage drop(optional);voltage output rated 2mA,maximum 5mA output.

Output load impact:less than 0.1%.

Auxiliary power supply:rated voltage 80%120%,rated frequency 90%110%.

Over input is allowed:3 times of current continuously,10 times for 30 seconds,50 times for 1 second;voltage is up to 2 times continuously.

Voltage test:2kV AC 1min between input/output/power supply/housing(IEC866).

Impact test:ANSI C37.90a/1973,IEC 255-4(5kV 1.2/50us pulse voltage).

ABB UFC760BE42 3BHE004573R0042

IV.Application areas

Power plants:used to monitor and control current to ensure stable operation of power systems.

Hydropower stations:also used for current measurement and control to improve power generation efficiency.

Other industrial applications:such as power transmission,industrial machinery and energy storage,etc.,may also require this device to measure and control current.
