ABB TVOC-2-240

Description

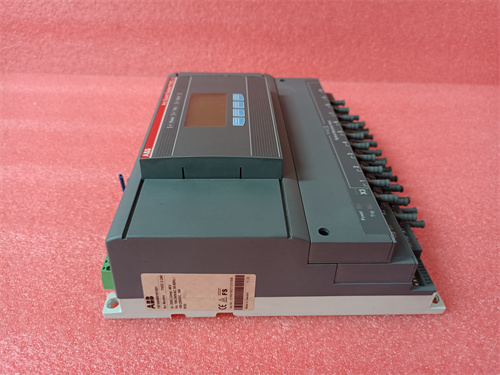

ABB TVOC-2-240 is an arc monitoring system,also known as an arc protection relay,produced by ABB.The following is a detailed introduction to the product:

I.Product Overview

TVOC-2-240 is part of the ABB TVOC-2 arc protection system,designed to mitigate arc faults and protect the safety of personnel and equipment.It detects the light of the arc and uses fast IGBT contacts to send an electrical signal to the nearby circuit breaker in a very short time(within 1 millisecond)to disconnect the power supply and extinguish the arc.

ABB TVOC-2-240

II.Technical Features

Arc Detection:

TVOC-2-240 is equipped with an optical sensor for detecting arcs,which can monitor arc faults in the power system in real time.

Fast Response:

When an arc is detected,the system sends an electrical signal to the circuit breaker within 1 millisecond through fast IGBT contacts to achieve rapid power disconnection and arc extinguishing.

Scalability:

TVOC-2-240 has 10 detector inputs,and the number of light detectors can be expanded to 30 through up to 2 expansion units to adapt to power systems of different sizes.

Multiple installation methods:

The product supports rail or screw installation,providing flexible installation options.

Easy to operate and maintain:

The product has a clear and easy-to-read interface and a simple startup menu,which is convenient for users to install,set up and operate.

No calibration required:

TVOC-2-240 is reliable,quick to install,and does not require calibration,reducing maintenance costs.

3,system composition and working principle

System composition:

TVOC-2-240 consists of arc monitors equipped with optical sensors for detecting arcs.For some special applications,additional current sensing units can be added to prevent external factors such as strong light(such as sunlight)from accidentally triggering the system.

Working principle:

The working process of the system can be divided into three stages:detection,identification and action.First,the optical sensor detects the light generated by the arc;then,the arc monitor determines the intensity of the light to determine whether it is an arc;finally,when an arc is identified,the trip contact closes and disconnects the power supply to extinguish the arc.

IV.Application Scenarios

TVOC-2-240 is suitable for various occasions where arc faults need to be prevented,such as low-voltage and medium-voltage switchgear.Its design focuses on product reliability,flexibility and simplicity,and can provide reliable arc fault solutions for various equipment.

ABB TVOC-2-240

V.Certification and Standards

TVOC-2 arc monitoring system has obtained functional safety(SIL-2)standard certification and complies with IEC61508 and IEC62061 standards.These standards ensure the reliability and safety of the product.

VI.Product Advantages

Protect personnel and equipment safety:

Through fast response and accurate arc detection,TVOC-2-240 can effectively prevent damage to personnel and equipment caused by arc faults.

Improve system reliability:

The reliability and stability of the product have been rigorously tested and verified,and it can operate stably for a long time in harsh industrial environments.

Easy to integrate and maintain:

The product supports a variety of communication interfaces and protocols,which is convenient for integration with other devices and systems.At the same time,the simple operation interface and the characteristics of no calibration reduce maintenance costs.
