Description

REF615E-E-HBFAABAANAA4BNA11E is an advanced relay protection device produced by ABB.The following is a detailed introduction to the device:

1.Main functions

The device is designed for equipment protection and control in power systems and integrates multiple protection functions to ensure the stable operation of power systems.These protection functions include:

Overcurrent protection:When the current exceeds the set value,the device automatically cuts off the circuit to prevent damage caused by equipment overload or short circuit.

Undervoltage protection:When the voltage is lower than the set value,the device will sound an alarm or cut off the circuit to prevent the equipment from being damaged by running under low voltage conditions.

Overvoltage protection:When the voltage exceeds the set value,the device will quickly cut off the circuit to protect the equipment from being damaged by high voltage shocks.

Phase loss protection:When a phase in the power system loses power supply,the device will sound an alarm and may cut off the circuit to prevent the equipment from being damaged due to phase loss operation.

Ground fault protection:When a ground fault occurs at a point in the power system,the device will quickly cut off the fault circuit to prevent the fault from expanding and causing greater losses.

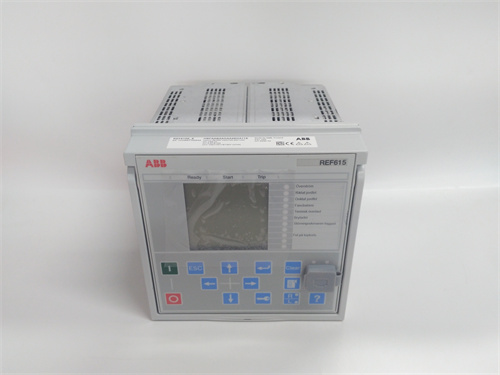

ABB REF615E-E-HBFAABAANAA4BNA11E

2.Technical Specifications

The technical specifications of the REF615E-E-HBFAABAANAA4BNA11E device are as follows:

Rated voltage:usually 220V(but some descriptions mention the rated voltage as 150V,which may be related to the specific application scenario or product series and needs to be confirmed based on the actual product).

Rated current:5A(but in some descriptions,the rated current of the add-on card related to the REF615E series can reach 2630A,depending on the specific application and configuration).

Operating temperature:-10℃55℃(the operating temperature range mentioned in some descriptions is-20℃+55℃,which may also be related to the specific product series or application scenario).

Communication interface:supports multiple communication protocols such as Modbus RTU and IEC 61850,which facilitates communication and data exchange with other devices.

Product size:200mm x 150mm x 50mm(the specific size may vary depending on the product series or model).

3.Application fields

REF615E-E-HBFAABAANAA4BNA11E devices are widely used in the following fields:

Small and medium-sized substations:provide comprehensive equipment protection and control functions to ensure the stable operation of substations.

Distribution room:real-time monitoring and protection of equipment in the distribution system to prevent faults.

Industrial plant:provide comprehensive protection and control functions for electrical equipment on industrial production lines to ensure the smooth progress of the production process.

Power plant:protect generators and other key equipment from various faults and damage threats.

ABB REF615E-E-HBFAABAANAA4BNA11E

4.Product advantages

High-precision measurement:equipped with high-precision measurement modules,it can monitor key power parameters such as current and voltage in real time.

Flexible communication:supports multiple communication protocols,which is convenient for data interaction and remote monitoring with the host computer or other intelligent devices.

Easy to install and maintain:the product is compactly designed,easy to disassemble and install,which greatly saves installation space and maintenance costs.

High reliability and stability:using high-quality materials and strict manufacturing processes to ensure long-term stable operation and reduce failure rates.
