Description

ABB REF543KB127AAAA is a comprehensive and stable communication measurement module or integrated protection device.The following is a detailed introduction to it:

1.Product Overview

ABB REF543KB127AAAA integrates advanced communication,measurement,protection and control technologies,and is mainly used to realize the communication,measurement,protection and control functions of various data in the power system.It is suitable for various switchgears,such as single bus,double bus and dual machine systems,to meet the needs of different systems.

2.Main functions

Protection function:

Supports various types of network protection,including neutral point ungrounded network,arc suppression coil grounded network and partially grounded network,to ensure stable and reliable protection in various network environments.

Provides multiple protection functions such as overcurrent protection,quick-break protection,overload protection,etc.,and can make fast and accurate protection actions for different fault types.

Measurement function:

It can measure and display electrical parameters such as current and voltage in real time,providing accurate data reference for operators.

Control function:

Realize remote control of medium voltage feeders,such as closing and opening operations.

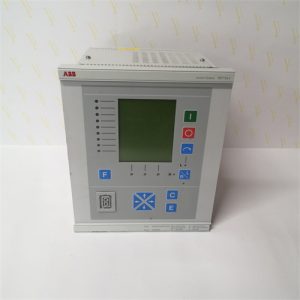

ABB REF543KB127AAAA

Real-time monitoring and control of switch status.

Status monitoring function:

Through internal sensors and measurement modules,real-time supervision of medium-voltage feeders is achieved,abnormal conditions are detected in time and alarms are triggered,which helps prevent accidents.

PLC function:

It provides a wealth of PLC functions,which can play a greater role in the substation automation system,realize the integration of multiple automation and sequential logic control functions,and improve the overall efficiency and reliability of the system.

Communication function:

Supports multiple communication standards,such as SPA bus protocol,LON bus protocol,IEC 60870-5-103 protocol,etc.,and can be seamlessly connected with various upper-layer devices to achieve real-time data transmission and sharing.

Compatible with IEC 61850 and Profitbus DPV1 protocols,further expanding its communication capabilities.

III.Application fields

ABB REF543KB127AAAA is widely used in various fields of power systems,including but not limited to:

Medium-voltage feeder protection and control:Provides comprehensive protection and control functions to ensure the safe and stable operation of medium-voltage feeders.

Power quality measurement and protection:Used to monitor and protect power quality and improve the stability and reliability of power systems.

Capacitor bank protection and control:protect and control the parallel capacitor bank to ensure its normal operation in the power system.

Motor protection:provide comprehensive protection and control functions for medium-sized three-phase asynchronous motors to extend the service life of the motor.

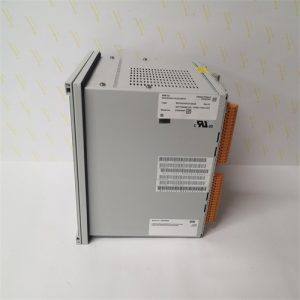

ABB REF543KB127AAAA

IV.Product features

High-performance CPU:designed for various industrial applications such as packaging,assembly and automation control,significantly reducing engineering and operating costs.

Easy to install and maintain:supports flexible switch cabinet installation methods and can be customized according to actual needs.At the same time,it has a self-diagnosis function,which is convenient for users to find and solve problems in time.

Strong scalability:can be combined and expanded with other modules,which is convenient for users to configure and upgrade the system according to their needs.

The company mainly imports PLC modules,programmable controllers,servo control systems and DCS spare parts,such as:ABB,AB(Rockwell),GE(General Electric),Bentley,Honeywell Er),Emerson.),Motorola,Invensys,Westinghouse,etc.The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers.We can purchase goods directly from abroad and provide equipment and spare parts from different countries and manufacturers.
We supply goods directly from abroad,without intermediaries,reducing the cost of use.
There is really no medium that can make a difference!!
Shenzhen Changxin Automation-sufficient supply,large spot quantity,guaranteed quality,you can buy with confidence and use with peace of mind~!
If you have any defects or needs for imported PLC and DCS spare parts,please contact our team,we will help you find reliable and high-quality products super quickly,while shortening delivery time to ensure that your equipment can operate normally in the right environment.Just in time.
Professionally provide:PLC programmable control system,distributed control system(DCS),safety instrument system(SIS),ESD system,vibration monitoring system,turbo compressor unit control system(CCS)and other PLC modules,various industrial control systems,system modules,CPU,IO module,DO module,AI module,DI module,network communication module,Ethernet module,motion controller,analog input module,analog output module,digital input module,digital output module,module redundancy,power module,relay output unit,relay input unit,processor unit.
Products are widely used in:electricity,petroleum,mine hoisting,ports,heating,gas,water supply,sewage treatment,metallurgy,papermaking,textile,chemical industry,water conservancy and other modern industrial fields!
