Description

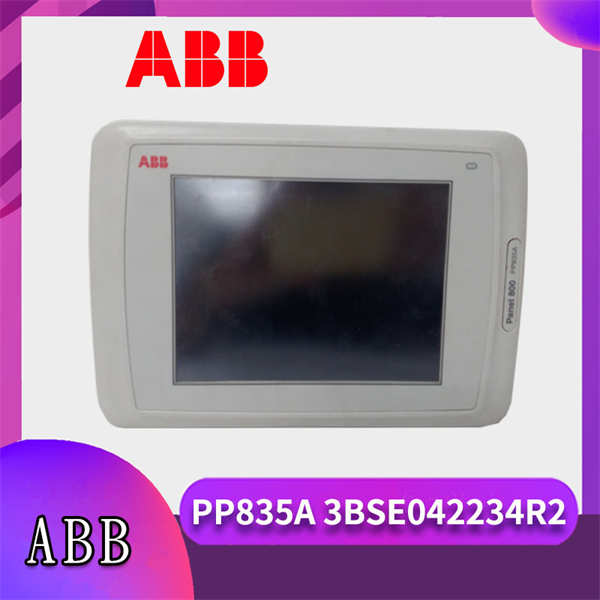

ABB PP835A-3BSE042234R2 Operator Panel

Product Description:

The ABB PP835A-3BSE042234R2 is an operator panel designed for use in ABB’s automation control systems. It serves as a human-machine interface (HMI), allowing operators to monitor and control industrial processes, equipment, or systems.

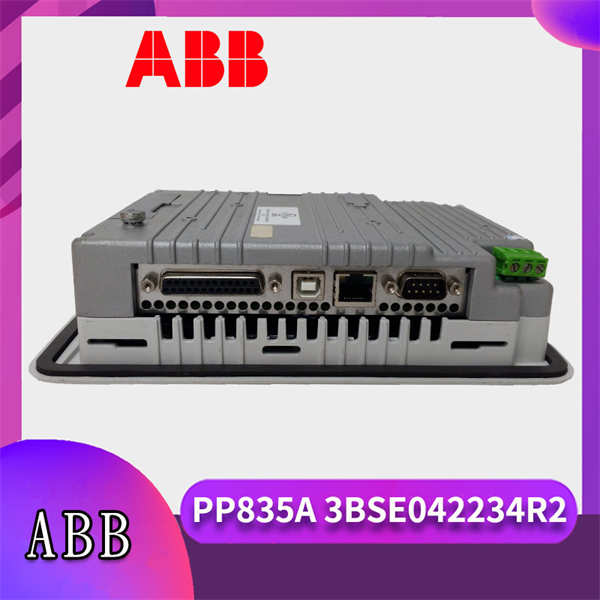

ABB PP835A-3BSE042234R2 Operator Panel

Product Parameters:

Display: Color TFT screen with a resolution of 640×480 pixels

Touchscreen: Yes, with capacitive touch technology

Dimensions: 180mm (W) x 270mm (H) x 76.5mm (D)

Weight: 1.48kg

Power Supply: Standard industrial power supply, typically 40-220VAC

Product Specifications:

User-Friendly Interface: The panel provides an intuitive HMI with touchscreen, buttons, indicators, and other interactive elements

Data Display: It can display real-time data, graphical interfaces, alarm information, and other relevant information

Operational Control: Operators can use the panel to perform various operations, such as starting/stopping equipment, adjusting parameters, selecting modes

Communication Interface: The panel typically has communication interfaces for data transmission and receiving commands from control systems and other devices

Durability: It is designed for durability, withstanding vibrations, temperature changes, and humidity in industrial environments

Series:

The PP835A-3BSE042234R2 belongs to the PP800 series of operator panels from ABB, which offers a range of models with different specifications and features.

ABB PP835A-3BSE042234R2 Operator Panel

Features:

Human-Machine Interface: The panel provides a user-friendly interface, enabling operators to monitor and control industrial processes efficiently

Integrated Functionality: It integrates multiple features, such as U-connectors, digital input modules, and analog modules, for compact planning and reduced variable usage

PROFINET IRT Support: The panel supports PROFINET IRT for cyclic synchronous operations, with a minimum cycle time of 250 microseconds

Fast Diagnostics: It supports fast fault repair with channel-level diagnostic messages, allowing operators to quickly identify and resolve issues

Smart Product Design: The intelligent product design reduces cabinet assembly costs and allows for centralized and distributed operation of all modules in the ET200MP I/O system

Functions:

The ABB PP835A-3BSE042234R2 operator panel serves as a critical component in industrial automation systems. It provides real-time monitoring and control of industrial processes, equipment, or systems, enhancing operator efficiency and productivity.

Applications and Uses:

The PP835A-3BSE042234R2 operator panel finds widespread applications across various industries and systems. It is commonly used in:

Manufacturing: For monitoring and controlling production lines, machines, and automated workstations

Process Control: In chemical, oil, food, and beverage processing industries for monitoring and controlling industrial processes to ensure product quality and operational safety

Power Industry: For monitoring and controlling power distribution, generation, and substation equipment

Building Automation: In building management systems for controlling lighting, HVAC systems, security systems, etc.

Water Treatment: For monitoring and controlling water treatment and wastewater treatment processes to ensure water quality and environmental compliance

Transportation: In traffic control systems for monitoring and controlling traffic signals, railway signals, and tunnel safety equipment
