Description

ABB PM866K01 3BSE050198R1 is a high-performance controller unit produced by ABB.The following is a detailed introduction to the product:

1.Basic information

Manufacturer:ABB(ABB Group,Switzerland)

Model:PM866K01

Order number/part number:3BSE050198R1

2.Technical specifications

Processor:Dual-core ARM Cortex-A9,main frequency is 800MHz

Memory:4GB eMMC memory,2GB RAM

Power supply:DC(12~36V)wide redundant dual power supply,with reverse connection protection function,power consumption is less than 4W,with DC1500V voltage isolation

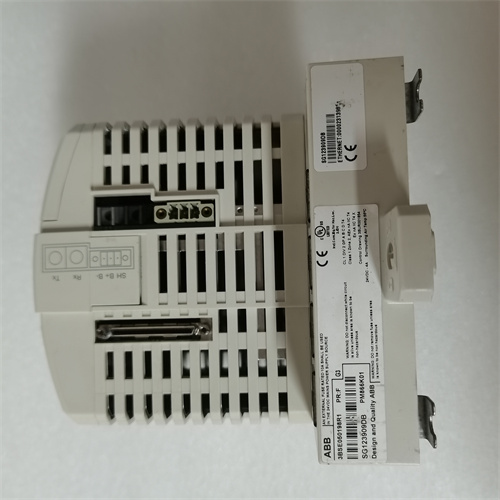

ABB PM866K01 3BSE050198R1

Communication protocol:Support Ethernet/IP,Modbus TCP/IP,Profinet and other communication protocols

Programming software:CODESYS programming software is provided to facilitate user development and application maintenance

Scalability:Provides a variety of communication interfaces and expansion slots to meet different application requirements

Dimensions:There may be multiple versions,one is length x width x height=239mm×80mm×35mm,the other is 147mm×118mm×54mm(subject to the actual product)

Weight:There may be multiple versions,one is 0.72kg,the other is 0.69kg or 0.8kg(subject to the actual product)

Operating temperature:Usually-20℃~+60℃,there are also claims of-10℃~+70℃,optional wide temperature range is-40℃~+85℃

Relative humidity:≤90%(no condensation)

Storage temperature:-40℃~+85℃

III.Functional features

Programmability:Users can configure control logic,data processing and communication protocols through programming

High-precision measurement and control:With high-precision measurement and control capabilities,it can adapt to different material types and process requirements

Real-time monitoring:Provides real-time data monitoring and alarm functions,which facilitates operators to understand the system status at any time and take necessary measures

Safety:With safety functions,ensure the stability and safety of the control system

High reliability:The design is stable and reliable,suitable for long-term stable operation in industrial environments

IV.Application areas

ABB PM866K01 3BSE050198R1 controller units are widely used in various industrial application scenarios,including but not limited to:

Industrial automation:used to monitor and control production processes,including manufacturing,assembly and other industrial operations

Process control:in the chemical,oil,gas and other industries,to achieve precise control of complex processes

Energy production:in power stations and other energy production facilities,monitor and control generators,transformers and other key equipment

Manufacturing:widely used in automated production lines,control mechanical equipment,robots and other manufacturing equipment

Building automation:used for intelligent building control,lighting systems,HVAC systems,etc.

Traffic systems:coordinate signal lights,monitor traffic flows and manage traffic systems

Environmental monitoring:monitor environmental parameters such as atmospheric conditions and water quality

Communication base stations:control and manage communication base station equipment

ABB PM866K01 3BSE050198R1
