Description

ABB-PM865K01-3BSE031151R1 is an Ethernet port controller,which is an important part of ABB’s industrial automation solutions.The following is a detailed introduction to the product:

1.Product Overview

The ABB-PM865K01-3BSE031151R1 Ethernet port controller integrates a microprocessor and RAM memory,with powerful processing power and fast data storage capabilities.It is designed for industrial automation and control applications and can meet various complex environments and requirements.

2.Main Features

High-performance processor:

The controller contains a high-performance CPU board with an integrated microprocessor and RAM memory to ensure fast data processing and efficient operation.

Multiple communication interfaces:

Equipped with two RJ45 Ethernet ports(CN1,CN2)for connecting to the control network to achieve high-speed data transmission and remote control.

At the same time,two RJ45 serial ports(COM3,COM4)are provided,one of which(COM3)is an RS-232C port with a modem control signal,and the other port(COM4)is isolated and is mainly used to connect configuration tools.

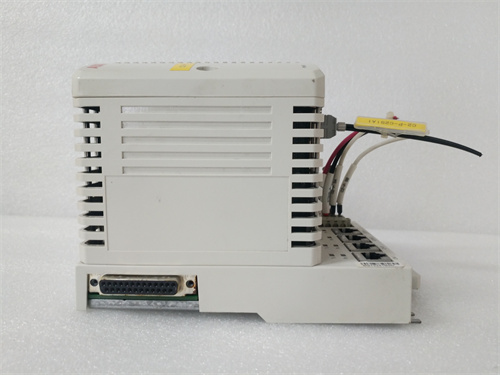

ABB-PM865K01-3BSE031151R1

CPU redundancy function:

Supports CPU redundancy.When the main CPU fails,the backup CPU can take over immediately to ensure high availability and continuity of the system.

High integrity function:

By adding SM81x modules and SIL certification software,high integrity function can be achieved,making it suitable for non-critical control schemes,and can meet the requirements of SIL certification schemes through software upgrades.

Convenient operation and storage:

Equipped with real-time clock,LED indicator,initialization button and CompactFlash interface,it provides convenience of operation and flexibility of data storage.

Industrial grade design:

Adopting industrial grade materials and manufacturing processes,it has high reliability and stability and can adapt to various industrial environments and working conditions.

III.Application field

ABB-PM865K01-3BSE031151R1 Ethernet port controller is widely used in industrial automation and control fields,such as power systems,manufacturing processes,mechanical equipment control,etc.It can be used to realize functions such as data acquisition,control and monitoring,helping users improve production efficiency,reduce operating costs and enhance system reliability.

ABB-PM865K01-3BSE031151R1

4.Technical specifications

Processor type:MPC862P

Clock frequency:96 MHz

Memory:32 MB(RAM available for applications)

Flash memory:4 MB(for storage)

Power supply:24 V DC(19.2 V-30 V DC)

Power consumption:6.9 W(maximum 11.4 W)

Communication protocols:Manufacturing Message Service(MMS)and Inter-Application Communication(IAC)

I/O modules:Supports a variety of I/O modules to meet different input and output requirements

Environmental conditions:

Operating temperature:+5 to+55°C(+41 to+131°F)

Storage temperature:-40 to+70°C(-40 to+158°F)

Relative humidity:5%to 95%,non-condensing
