Product Description:

The ABB PM803F is a high-performance field controller designed for industrial automation applications. It is a key component of ABB’s 800xA system, offering advanced control and monitoring capabilities.

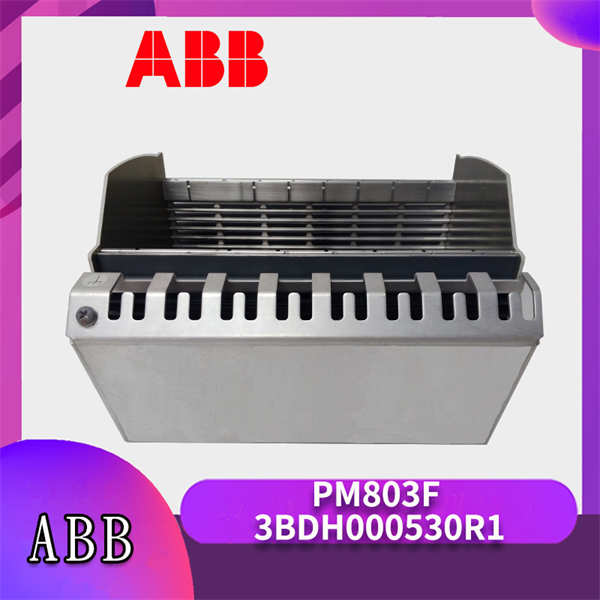

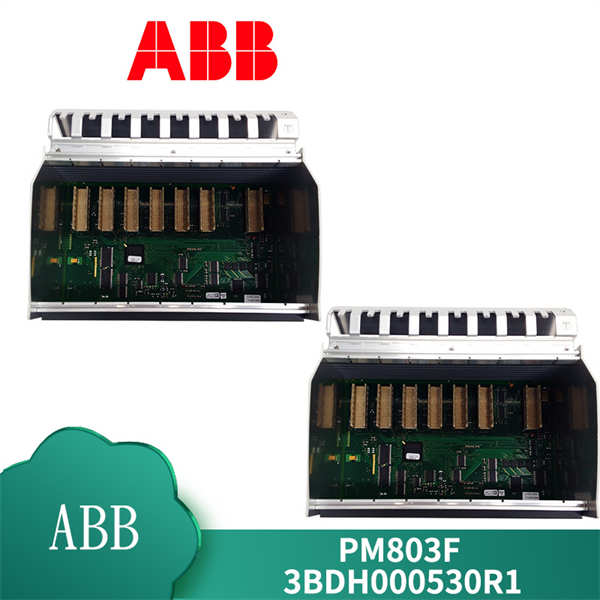

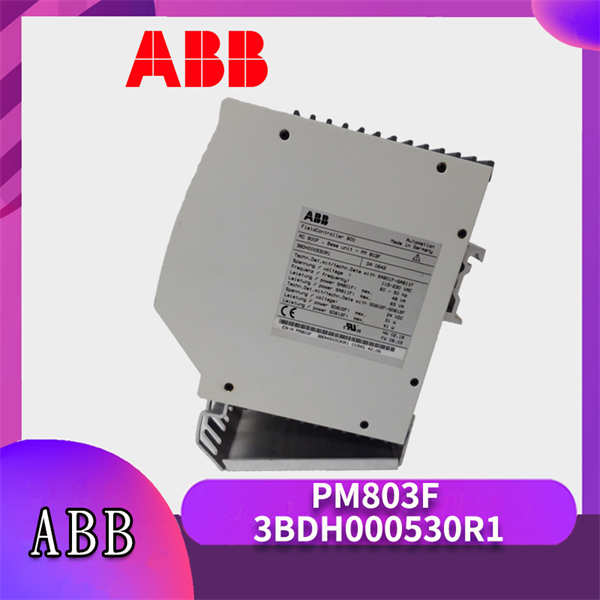

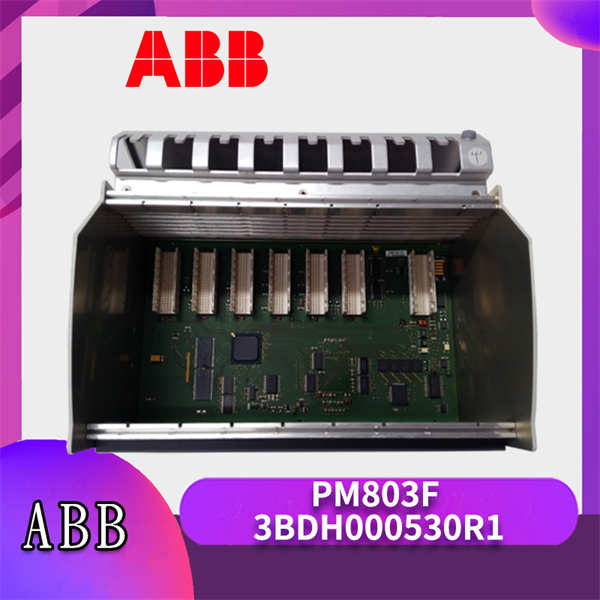

ABB PM803F Field Controller

Product Parameters:

Processor: 800 MHz ARM Cortex A8

Memory: 4 GB eMMC Flash storage and 512 MB DDR3 RAM

Operating System: ABB’s proprietary Trio OS or Linux

Power Supply: DC 24V

Communication Interfaces: Supports multiple protocols including Modbus RTU/TCP, IEC 60870-5-101/104, DNP3, and OPC UA

Digital I/O Ports: Supports up to 32 digital input/output ports

Analog I/O Ports: Supports up to 8 analog input/output ports

Operating Temperature: -25°C to +70°C

Protection Rating: IP20

Product Specifications:

High Performance: The PM803F is equipped with a powerful 800 MHz ARM Cortex A8 processor and ample memory, ensuring fast and responsive control

Versatile Connectivity: With support for multiple communication protocols, the PM803F can seamlessly integrate with various devices and systems

Expandability: The controller supports expansion through PM8M22 or PM8M26 modules, allowing for additional digital and analog I/O ports

High Security: The PM803F incorporates various security mechanisms, such as access control and data encryption, to protect the system’s integrity

Series:

The PM803F belongs to the PM800 series of controllers from ABB, which are designed for industrial automation and control tasks. These controllers offer a range of features and specifications to meet different application requirements.

ABB PM803F Field Controller

Features:

High Performance and Reliability: The PM803F is built with advanced technology and components, ensuring reliable and consistent performance in demanding industrial environments

Versatile Connectivity: Supports a wide range of communication interfaces, allowing for seamless integration with various devices and systems

Large Memory and Storage: Equipped with ample memory and storage capacity to support complex control algorithms and data management

Programmable: Users can program and customize the controller using specific programming languages like ABB’s ControlBuilder M

High Expandability: The PM803F supports modular expansion, allowing for the addition of various input/output modules and functional modules to adapt to different application scenarios

Functions:

The PM803F serves as a key component in industrial automation systems, performing critical control and monitoring tasks. It can process complex control algorithms and logic, manage data, and communicate with other devices and systems to ensure smooth and efficient operation

Applications and Uses:

Industrial Automation: The PM803F is widely used in industrial automation systems, where it performs critical control and monitoring tasks

Process Control: It can be used in various process control applications, such as manufacturing, power generation, and water/wastewater treatment

Data Acquisition and Monitoring: The controller collects and analyzes data from various sensors and devices, providing real-time insights into system performance and enabling informed decision-making

System Integration: The PM803F integrates seamlessly with other components and systems, providing a unified and coordinated control solution for complex industrial processes
