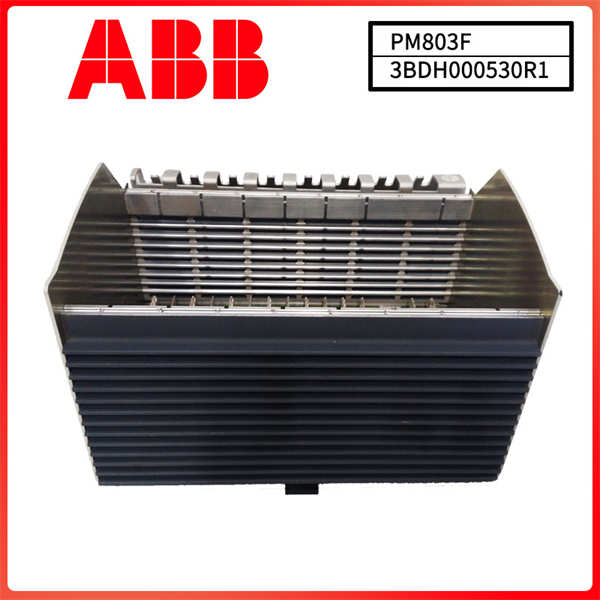

ABB PM803F-3BDH000530R1 Processor Module

Product Description:

The ABB PM803F-3BDH000530R1 is a high-performance processor module designed for industrial automation and control systems. It is a key component of the PM800xA system, providing powerful processing capabilities and reliable control for various industrial processes.

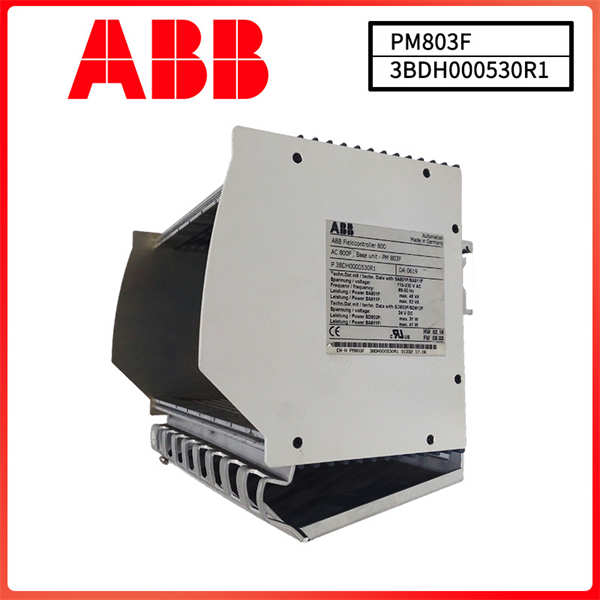

ABB PM803F-3BDH000530R1 Processor Module

Product Parameters:

Processor Type: Intel 80960 H25/75 32-bit RISC SuperScalar

RAM: 16MB of read/write memory

I/O Scanning Cycle: Configurable based on the load capacity of the fieldbus module

Processor Execution Time: 1000 instructions

Power Consumption: 6.0W (maximum 10W)

Power Supply: SA811F 115/230V AC or SD812F 2X24VDC

Product Specifications:

High Performance: Equipped with a high-performance Intel 80960 H25/75 processor, ensuring fast and responsive control

Versatile Connectivity: Supports multiple communication interfaces, including Ethernet, serial communication, and others, for seamless integration with other devices and systems

Large Memory: 16MB of read/write memory for handling complex control algorithms and logic

High Reliability: Designed for demanding industrial environments, withstanding harsh conditions and ensuring continuous, stable operation

Series:

The PM803F module belongs to the PM800 series of controllers from ABB, which are specifically designed for industrial automation and control tasks. These controllers offer a range of features and specifications to meet different application requirements.

Features:

High Performance and Reliability: The PM803F-3BDH000530R1 is built with advanced technology and components, providing reliable and consistent performance in demanding industrial environments

Versatile Connectivity: Supports a wide range of communication interfaces, allowing for seamless integration with various devices and systems

Powerful Processing Capabilities: Equipped with a high-performance processor, the module can handle complex control algorithms and logic, ensuring precise and responsive control

Configurable I/O Scanning Cycle: The module’s I/O scanning cycle can be configured based on the load capacity of the fieldbus module, providing flexibility in meeting different application requirements

User-Friendly Programming: Users can program and configure the module using ABB’s engineering tools, such as Control Builder M, to create logic control programs and configure input/output settings

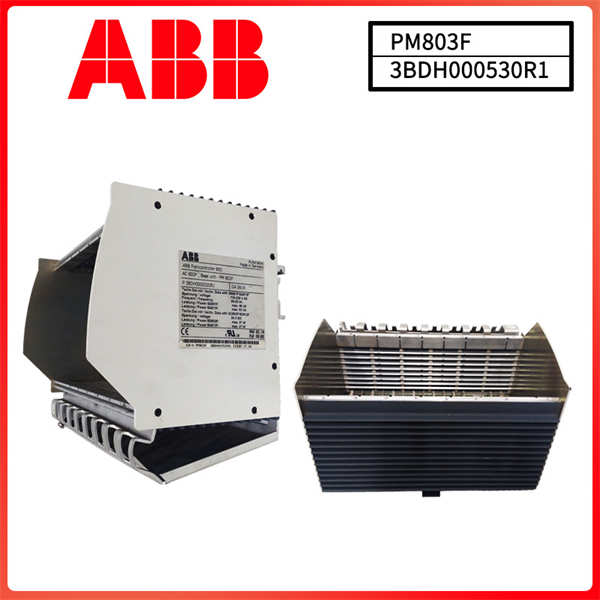

ABB PM803F-3BDH000530R1 Processor Module

Functions:

The PM803F-3BDH000530R1 processor module serves as a core component in industrial automation and control systems. It handles real-time data, executes logic control, performs data processing and communication tasks, and integrates with other PLCs, sensors, actuators, and upper-level monitoring systems

Applications and Uses:

Industrial Automation: The PM803F-3BDH000530R1 is widely used in industrial automation systems, where it performs critical control and monitoring tasks in various industries such as manufacturing, process control, power distribution, and building automati

Complex Control Scenarios: With its powerful processing capabilities and high reliability, the module is suitable for handling complex control scenarios that require precise and responsive control

Integration with Other Systems: The module’s versatile connectivity allows for seamless integration with other devices and systems, providing a unified and coordinated control solution for complex industrial processes
