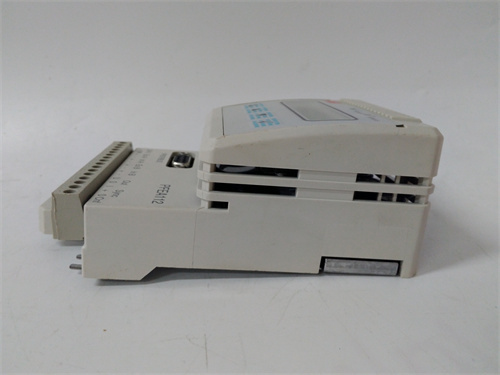

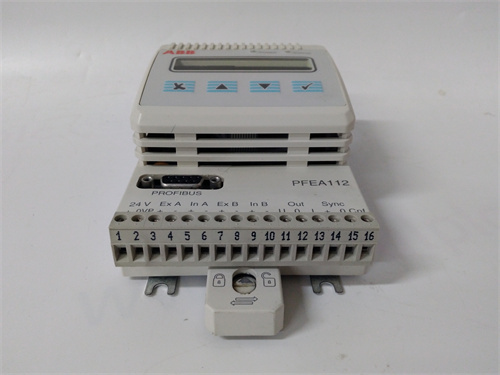

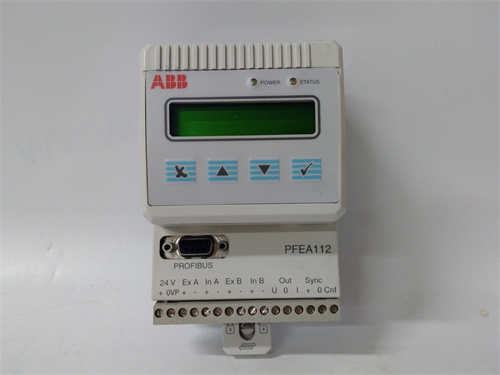

ABB PFEA112-20 3BSE030369R20 is an intelligent all-digital stepper driver.The following is a detailed introduction to it:

1.Product Overview

Type:Based on the high-speed DSP+IPM all-digital three-phase stepper motor driver architecture design.

Features:Added advanced fuzzy control algorithm,it is the fourth generation stepper motor driver.

2.Technical specifications

Motor adaptability:

Adaptive voltage range:50V low-voltage motor to 300V high-voltage motor(high and low voltage dual mode).

Adaptive current:below 10.0A.

Adaptive motor outer diameter:57-150mm.

Adaptive motor torque:2NM-60NM.

Signal input:

Compatible with 5V,12V,and 24V signal inputs,no external current limiting resistor is required.

The input control signal can be adaptive in the range of 5V to 24V.

Communication interface:

2MHz high-speed RS485 bus,supporting cascade interpolation control.

Motion control:

The motion control function is integrated internally,supporting touch screen control and processing parameter reading.

The stamping and cutting system,automatic feeding and cutting system or any complex single-axis motion control function can be pre-installed according to user needs.

IO interface:

The internally integrated 4-input and 2-output digital IO port can meet general motion control needs.

Multi-point digital and analog IO components can be expanded externally.

Positioning accuracy:up to 0.006 degrees.

Response frequency:up to 500Kpps(or 200KHz,which may vary depending on the product version or application scenario).

Maximum withstand voltage:AC255V.

Using voltage range:AC80V-230V.

Resolution:up to 60000PPR.

III.Functional features

Strong adaptability,high and low voltage dual modes,suitable for motors with various voltage ranges.

High-speed performance,high response frequency,and fast response.

Low-speed stability,high subdivision accuracy,backward shift of the inflection point of loss of torsion,and stable low-speed operation.

Integrated motion control function can save PLC or motion controller and simplify system structure.

Automatic semi-flow function improves the safety and stability of equipment.

IV.Application fields

It can be widely used in engraving machines,laser marking machines,textile machinery,wire stripping machines,winding machines,packaging machinery,spring machines,fluid control,CNC machine tools,wave soldering machines,electronic equipment,advertising equipment,laser processing equipment and other fields.

It can provide corresponding solutions for yaw systems,climbing assistance systems,cabin cooling systems and pitch control systems,especially in the wind power industry,there are wind power-specific drivers to choose from.
