ABB NTAC-02

Description

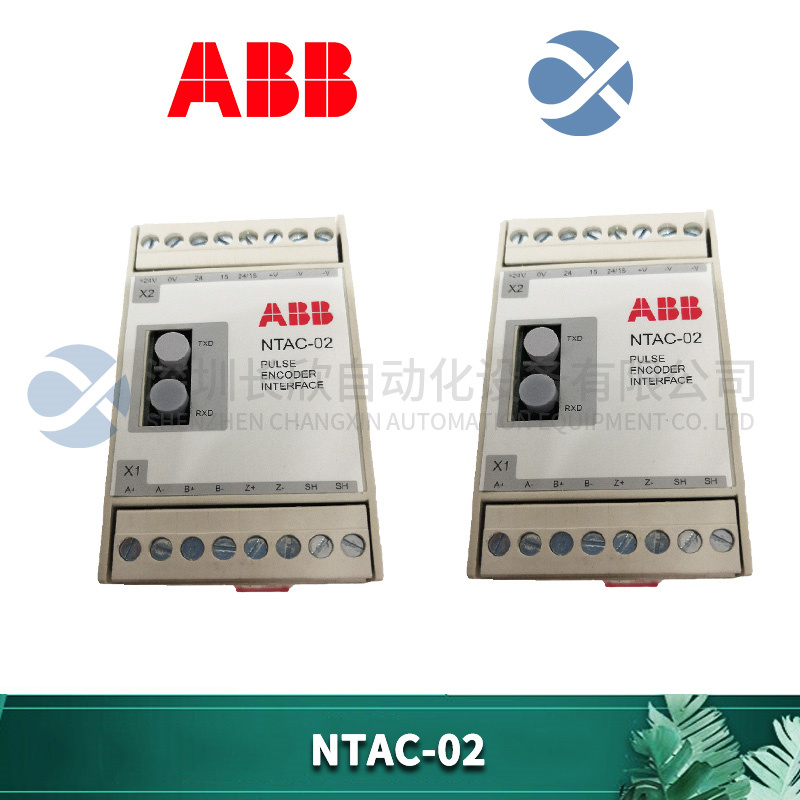

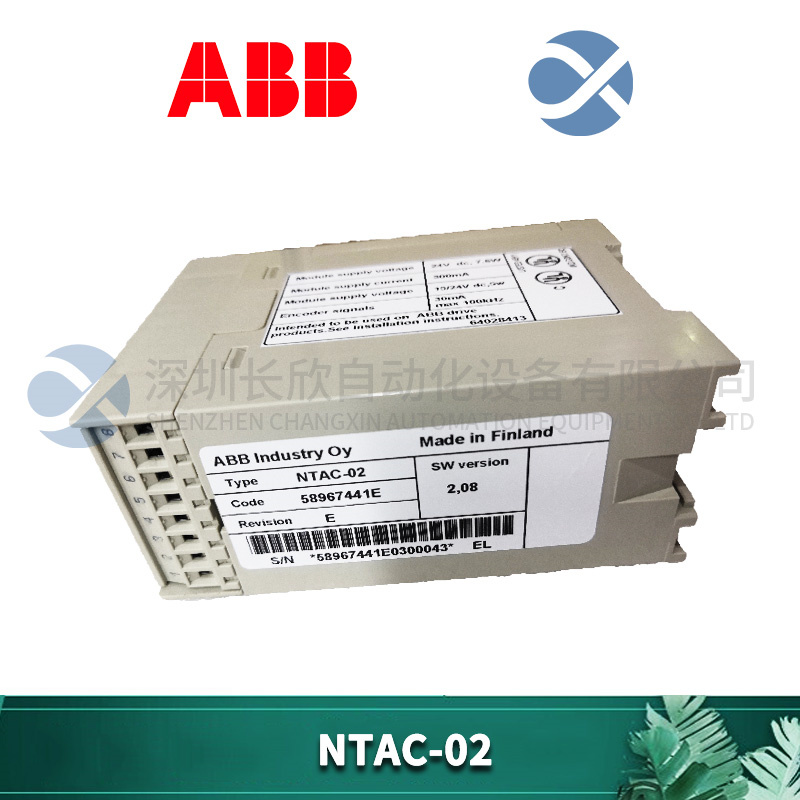

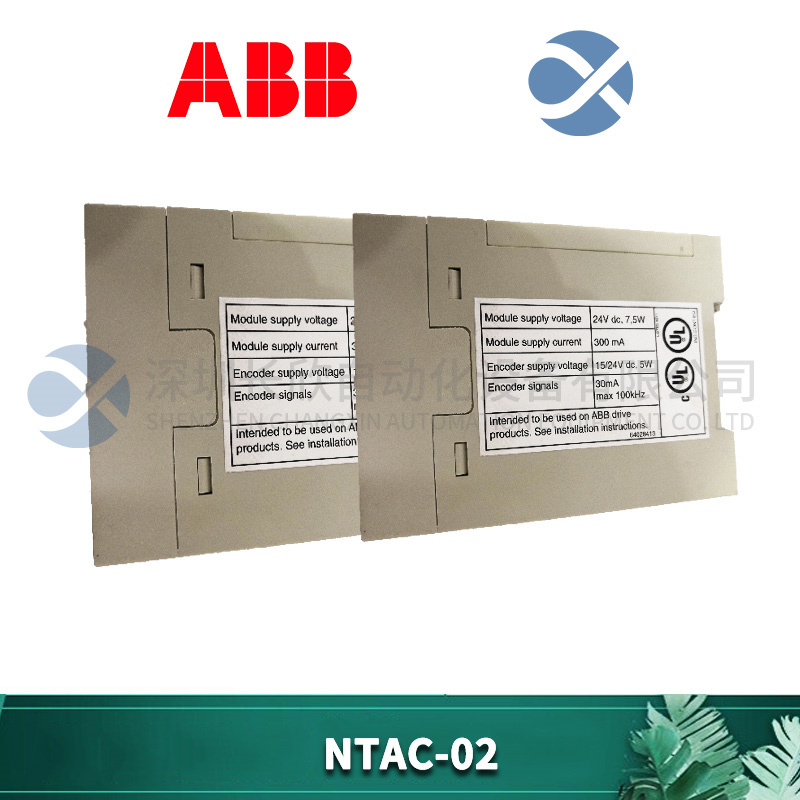

ABB NTAC-02 is a pulse encoder interface module 1.

The pulse encoder is an optical position detection element. The encoding disk is directly installed on the rotating shaft of the motor to measure the rotation Angle position and speed change of the shaft. The output signal is an electrical pulse. The pulse encoder is a kind of angular displacement sensor, which can turn the mechanical Angle into an electrical pulse. Pulse encoders can be divided into photoelectric, contact and electromagnetic three kinds, of which photoelectric application is more 1

ABB NTAC-02 specifications 1:

Model: NTAC-02.

Brand: ABB.

Manufacturer: ABB.

Series: Drives.

Net weight: 0.5kg.

Product net depth/length: 108 mm.

Product height: 75mm.

Product width: 45 mm.

ABB NTAC-02 parameters are as follows: 1

Structure: modular.

Installation method: Installation in control room.

LD instruction processor: hard PLC.

Function: Module.

Working voltage: 220V.

Output frequency: 30Hz.

Processing speed: 15Hz.

Program capacity: 3MB.

Data capacity: 2MB.

Model: NTAC-02.
