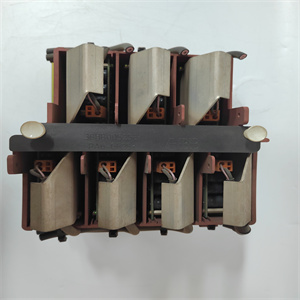

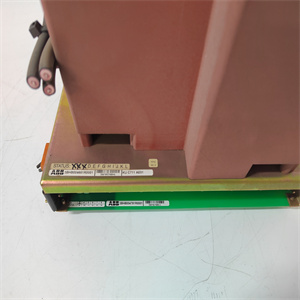

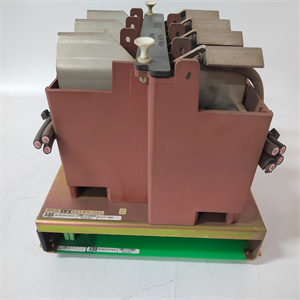

ABB KUC711AE01 3BHB004661R0001

ABB KUC711AE01 3BHB004661R0001 product in English, including its parameters, specifications, dimensions, weight, series, features, and function:

Product Details:

• Brand: ABB
• Model Number: KUC711AE01
• Material Code: 3BHB004661R0001

Product Parameters:

• Input/Output: Supports various input and output signals such as voltage, current, thermocouples (K, S, E, J, T, B, N, etc.), thermal resistors (Pt100, Cu50, etc.), and relays with contact switch output¹.
• Communication: Offers communication via Rs485, supporting advanced connectivity and data exchange¹.
• Measurement and Control: Provides precise measurement and control of various electrical parameters with an accuracy of ±0.2%F.S±1 digit¹.

Specifications:

• Input-Output Isolation: 1500V¹.
• Input Impedance: Varies depending on the input signal type (e.g., ≥5MΩ for 0-20mV voltage input)¹.
• Output Load Resistance: Specified for different output signals (e.g., 0-10mA current output with load resistance ≤1000Ω)¹.
• Relay Output: Capable of switching 220VAC/2A or 24VDC/2A loads¹.

Dimensions and Weight:

• Without Installation Accessories: 440 x 45 x 224 mm (17.32 x 1.77 x 8.82 in)².
• With Installation Accessories: 480 x 45 x 224 mm (18.9 x 1.77 x 8.82 in)².
• Weight: 2.94 kg².

Series:

• This model belongs to ABB’s range of control modules, specifically designed for industrial automation and control systems. It is part of the ACS 6000 series, which includes various excitation control modules³.

Features:

• Mini Screen and Buttons: Equipped with an LCD display and 4 membrane buttons for easy field configuration².
• Versatility: Supports a wide range of input and output signals, making it suitable for various industrial applications¹.
• Precision: Offers high-precision measurement and control capabilities for electrical parameters¹.
• Communication: Enables seamless integration into industrial automation systems through communication protocols like Rs485¹.
• Protection and Diagnostics: Incorporates various protection features (e.g., overcurrent, overvoltage, undervoltage protection) and diagnostic functions to ensure reliable operation⁴.

Function:

The ABB KUC711AE01 3BHB004661R0001 is an industrial control module designed for use in various industrial applications such as power generation, marine, oil and gas, traction, harbor cranes, and mining trucks³. It serves as a key component in the excitation control system, providing precise control and regulation of electrical parameters to ensure the smooth and efficient operation of equipment and processes.

Note:

• Always refer to the official ABB product documentation for the most accurate and up-to-date information about this product.
• If you have specific requirements or questions, contact ABB’s technical support or sales team for assistance.
