Description

ABB EI813F 3BDH000022R1 is an Ethernet module produced by ABB.The following is a detailed introduction to the product:

1.Product Overview

ABB EI813F 3BDH000022R1 is designed for industrial automation and control systems for remote monitoring,control and data transmission.It supports multiple network protocols such as TCP/IP,UDP and Modbus TCP,and is suitable for different network topologies.

2.Technical Specifications

Interface type:10BaseT Ethernet interface.

Data transmission rate:10Mbps.

Operating temperature range:0°C to 55°C.

Storage temperature range:-25°C to 70°C.

Relative humidity:5%to 95%(no condensation).

Dimensions:125 mm long,28 mm wide,155 mm high.

Net weight:0.15 kg.

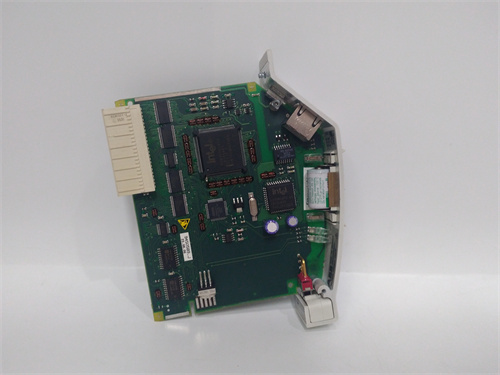

ABB EI813F 3BDH000022R1

3.Product Features

High-precision signal acquisition:The module has high-precision signal acquisition function,which can ensure accurate capture of external signal state changes.

Real-time data transmission:supports real-time data transmission for process data monitoring and fault diagnosis.

High reliability:suitable for harsh industrial environments,with high stability and reliability.

Flexible configuration:can be flexibly configured through software to adapt to different application requirements.

Modular design:convenient installation and maintenance.

Support for multiple industrial protocols:supports multiple industrial protocols,such as Modbus TCP,PROFINET,etc.,and is compatible with the Ethernet protocol of IEEE 802.3 standard.

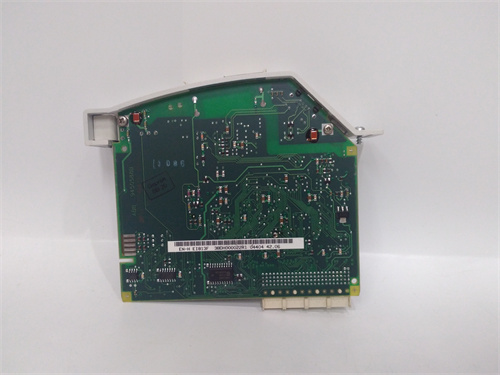

ABB EI813F 3BDH000022R1

IV.Application fields

ABB EI813F 3BDH000022R1 is mainly used in the following fields:

Manufacturing:such as automobile manufacturing,electronic manufacturing,food processing,etc.

Power industry:such as power plants,substations,etc.

Process industry:such as petrochemicals,metallurgy,etc.

In addition,the module is also widely used in various industrial automation systems,such as process control,robot control,production line automation and building automation.

V.Functions and applications

Network communication:realize network communication between the controller and host computer,HMI and other devices.

Data exchange:realize data exchange between the controller and other devices.

Remote control:Realize remote monitoring and control of the controller.
