Description

CI858K01 3BSE018135R1 is a high-performance communication interface module produced by ABB.The following is a detailed introduction to the product:

I.Product Overview

CI858K01 3BSE018135R1 is part of the ABB AC800M automation system.As an important component of the AC800M controller,it is mainly used to connect the ABB inverter and the AC800M controller to achieve data communication and control between devices.The module adopts a modular design,which is easy to install and maintain,and has high reliability and flexibility.

II.Main Features

Multiple communication interfaces:

Supports multiple communication interfaces,such as Ethernet,serial port,CAN bus,etc.,for data communication with other devices or upper systems.

The optical fiber interface supports multi-mode and single-mode optical fibers,with wavelengths including 850nm,1310nm(multi-mode and single-mode)and 1550nm(single-mode),and the transmission distance can reach 2km for multi-mode and 20km for single-mode(longer distances are optional).

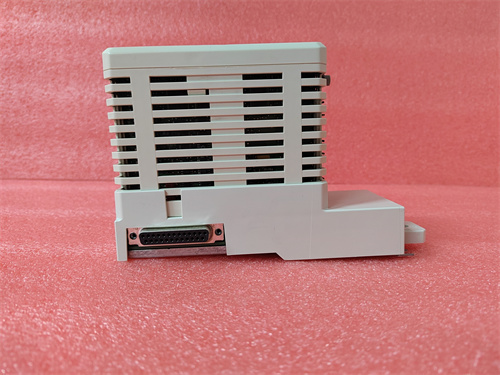

CI858K01 3BSE018135R1

Protocol support:

Supports multiple communication protocols,such as DriveBus(a protocol designed for ABB drives and I/O module communication),PROFIBUS DP,Ethernet/IP,etc.,enabling seamless integration with different types of equipment and systems.

High-speed data transmission:

Supports high-speed data transmission rates,including 9.6Kbps,19.2Kbps,45.45Kbps,93.75Kbps,187.5Kbps,500Kbps,1.5Mbps,6Mbps,12Mbps,etc.,to ensure fast and reliable communication.

Lightning protection and overcurrent protection:

With 4000V lightning protection,1.5A overcurrent protection and 600W surge protection,it improves the reliability and safety of the equipment.

Flexibility:

The CI858K01 interface module is flexible and can adapt to different application requirements and scenarios.

3.Application fields

CI858K01 3BSE018135R1 is widely used in industrial automation,robotics,energy management and other fields,providing efficient and reliable communication solutions for equipment and systems.In addition,it is also widely used in modern industrial fields such as electricity,manufacturing,chemical industry,water treatment,etc.

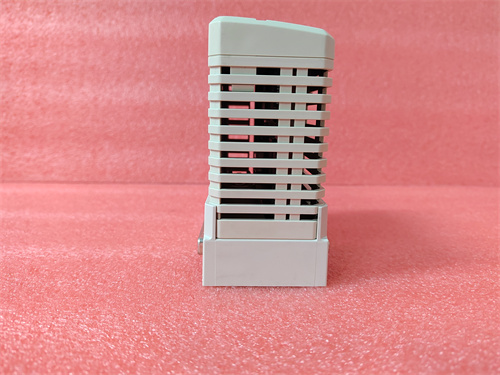

CI858K01 3BSE018135R1

4.Technical specifications(partial)

Model:CI858K01 3BSE018135R1

Brand:ABB

Input voltage:typically 24VDC(dual power supply redundant input,DC12-36V)

Current:power consumption is less than 4W(specific current value may vary depending on usage)

Operating temperature range:-25°C to+70°C(optional wide temperature range:-40°C to+85°C)

Relative humidity:≤90%(no condensation)

Dimensions:about(136x106x54)mm

Enclosure protection level:IP30

Installation method:35mm rail installation

Net weight:about 800g
