Description

ABB ASE2UDC920AE01 is a high-performance,multi-functional controller module produced by ABB.The following is a detailed introduction to the module:

1.Main features

High-precision control and monitoring:

Adopting advanced control algorithms and high-precision sensor technology,it can control and monitor equipment and machines with high precision to ensure the stable operation of the production line and the stability of product quality.

Strong versatility:

It can adapt to the needs of different fields and different application scenarios,and provide precise and reliable control for various equipment and systems.

Strong programmability:

Supports multiple programming languagesand programming methods,providing users with flexible control and configuration options.

High reliability:

It has perfect self-diagnosis and troubleshooting functions,can automatically detect and troubleshoot faults,and ensure the safe and stable operation of the system.

Modular design:

It can be used in combination with other controller modules and sensors to form a complete control system.At the same time,it supports multiple communication protocols and communication interfaces,and can be seamlessly integrated with other equipment and systems.

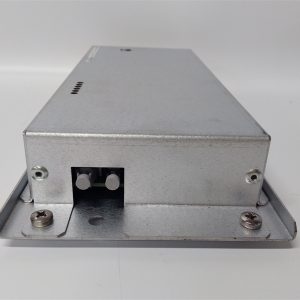

ABB ASE2UDC920AE01

2.Technical specifications

Working power supply:

The power supply voltage range is 220V/380V±10%,and the frequency is 50HZ.

Ambient temperature:

Can work normally in the ambient temperature range of-10℃~40℃.

Configuration and performance:

Usually equipped with 2 communication channels,as well as 64MB I-die SDRAM and 2MB SRAM.

Supports DeviceNet protocol executed on the card,with diagnostic LED and UCMM(unconnected message manager)function.

Supports dynamic explicit connection,including the first group,the second group and the third group.

Supports the simultaneous execution of the second group of client(master)and server(slave)operations,as well as all DeviceNet standard baud rates(such as 125.250K and 500K).

Supports polling,strobing,change of state(COS)and cyclic I/O messaging,as well as slicedexplicit and I/O messaging.

The client(master)can explicitly send messages to slave devices.

Operating system and driver:

Supports operating systems such as Microsoft Windows NT4/2000/XP.

Provides a console and a set of software tools,including OPC server configuration and diagnostic tools.

Provides open,documented memory mapping and sample C source code interface for code and Windows 32-bit DLL custom driver development.

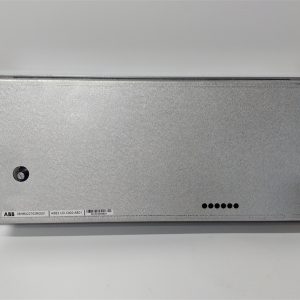

ABB ASE2UDC920AE01

III.Application Areas

ABB ASE2UDC920AE01 module is widely used in industrial automation,power system control,process control,mechanical control,building automation,and remote monitoring and control.For example:

Industrial Automation:

Used for production line control,machine control,etc.to improve production efficiency and product quality.

Power System Control:

Used for monitoring and control of generators and transformers to ensure stable operation of power systems.

Process Control:

Used for monitoring and control of process parameters,plays an important role in chemical,pharmaceutical and other industries.

Machinery Control:

Used for precise control of mechanical equipment and automation systems to improve the operating efficiency and safety of equipment.

Building Automation:

Used for control of lighting,air conditioning,security systems and access control systems in buildings to improve the intelligence level of buildings.
