Description

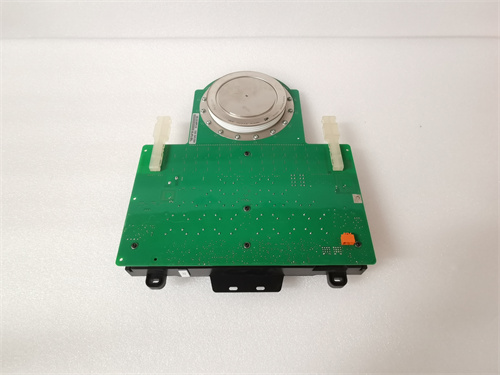

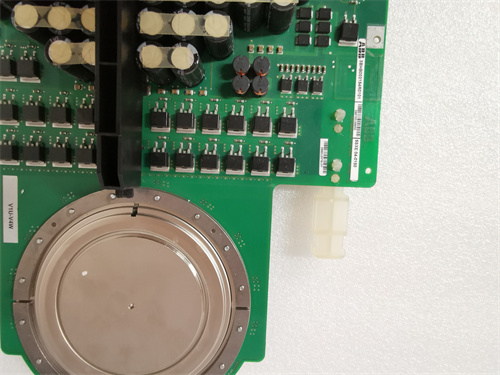

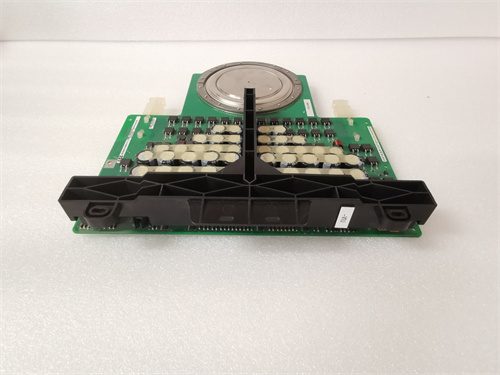

ABB 5SHX2645L0004 3BHL000389P0104 is a programmable logic controller(PLC)module.The following is a detailed introduction to the product:

1.Product Overview

This module is also regarded as a thyristor module,designed for industrial automation applications,providing advanced functions and reliable performance to meet the requirements of modern industrial processes.

2.Main parameters

Input voltage:24V DC

Digital input and output:16 channels each

Communication protocol:Support Modbus and Ethernet/IP

Programming language:IEC 61131-3

Dimensions:120mm x 90mm x 70mm(or 67.5mm wide,112mm high,114.5mm deep,data from different sources may vary)

Operating temperature:-20°C to+60°C(-20°C to+70°C when storing/transporting)

ABB 5SHX2645L0004 3BHL000389P0104

3.Product characteristics

Thyristor characteristics:Very low normal leakage current,and special coupled dual-transistor feedback amplifier.These characteristics enable it to work effectively when the circuit is disconnected and quickly adjust the current and voltage when receiving the control signal.

Protection level:The shell material is non-reinforced polyamide PA,the shell color is yellow,the protection level is IP20,and the minimum protection level of the insertion position is IP54.

Environmental adaptability:The maximum allowable humidity(storage/transportation)is 75%(average,sometimes 85%),and the maximum allowable relative humidity(operation)is also 75%(average,sometimes 85%).

Pluggability:Supports pluggable design,which is convenient for users to install and replace.

IV.Application fields

Industrial power control:such as motor control,power adjustment and temperature control.

Power electronics applications:used to control and adjust AC voltage and current to meet different power control needs.

Other industrial fields:It has a wide range of applications in many industrial fields such as PCB industry,semiconductor packaging industry,and electronic processing industry.

ABB 5SHX2645L0004 3BHL000389P0104
