ABB 5SHX1960L0004 is an integrated gate-commutated thyristor(IGCT)module designed for high-performance switching and control of AC power in a variety of industrial applications.The following is a detailed introduction to the product:

I.Product Overview

The ABB 5SHX1960L0004 IGCT module combines the high current handling capability of thyristors with the fast switching capability of insulated gate bipolar transistors(IGBTs),providing fast switching speeds,high efficiency,and precise control capabilities.Its compact design,high current and voltage ratings,and advanced gate drive technology make it a reliable and versatile solution for demanding power conversion tasks.

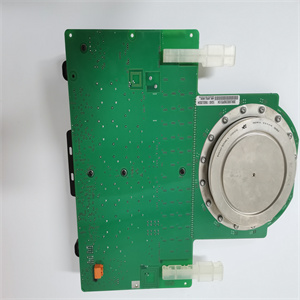

ABB 5SHX1960L0004

II.Main Features

High power handling capability:The module is designed for power electronic devices that handle high power and is capable of controlling high currents and high voltages.

Fast switching:IGCTs have fast switching speeds,enabling fast power control and are suitable for applications that require fast response.

High efficiency:The high efficiency of IGCTs minimizes energy losses and improves the efficiency of the entire system.

High reliability:The rugged design ensures long-term operation in harsh industrial environments and provides stable performance.

Versatility:Suitable for a wide range of applications requiring high-power switching and control.

Compact Design:Space-saving design suitable for installation in narrow control cabinets.

Advanced Gate Drive Technology:Ensures precise,reliable switching operation.

Low On-State Voltage Drop:Minimizes power losses and maximizes efficiency.

IP65 Protection Rating:Ensures protection against dust,water,and other contaminants.

ABB 5SHX1960L0004

3.Technical parameters

Here are some key technical parameters:

Rated voltage:3300V AC(1900V mentioned in some information may be the value under specific conditions or the parameters of different models)

Rated current:1900A

Peak forward current:3000A

On-state voltage drop:2.5V

Gate trigger current:0.5A

Operating temperature:-40°C to+85°C(-10°C to 60°C mentioned in some information may be the operating range under specific applications or conditions)

Storage temperature:-40°C to+125°C

Dimensions:335mm x 250mm x 120mm(different from 100mm×80mm×30mm in some information,which may be due to the size difference under different models or application scenarios)

4.Application areas

ABB 5SHX1960L0004 IGCT modules are widely used in various industrial automation and power conversion fields,including but not limited to:

AC drives:used for speed control of AC motors in applications such as pumps,fans and conveyors.

Renewable energy systems:used to control and regulate the conversion and transmission of power in wind and solar power generation systems.

Grid infrastructure:used for power transmission and distribution,reactive power compensation and voltage regulation.

Industrial power supplies:used for high-power DC power supply for industrial processes and equipment.

Electric vehicles:used for power conversion and control in electric vehicle traction systems.
