A-B 1769-L23E-QB1B

Description

The following is a list of Product Details, Specifications, Parameters, and Application Fields for the A-B 1769-L23E-QB1B in English:

Product Details:

Manufacturer: Allen-Bradley (A-B), a part of the Rockwell Automation Group
Model Number: 1769-L23E-QB1B
Product Type: CompactLogix PLC Module (Programmable Logic Controller)
Compatibility: Designed for use with CompactLogix 5370 L2 series controllers

Specifications:

Power Supply: Integrated 24VDC power supply
Input Channels: 16 discrete 24VDC input channels
Output Channels: 16 discrete output channels
User Memory: 512KB, capable of accommodating up to 32 cycles or combinations of continuous tasks
Communication Ports: One Ethernet port and one USB interface

Parameters:

Ethernet Speed: Supports 10/100 Mbps transmission rates
Scan Time: Request data packet interval (RPI) speed of approximately 1 to 4 milliseconds for 1 module
Consumption: Draws 700mA current at 24VDC and consumes 7 watts of power
Operating Temperature: Rated for use at 10 to 30VDC at 30°C (86°F)

Application Fields:

Manufacturing Automation: Used for controlling and monitoring various processes and equipment in manufacturing settings
Factory Automation: Supports factory automation systems by providing logic control and data handling capabilities
Data Acquisition and Monitoring: Interfaces with SCADA (Supervisory Control and Data Acquisition) and HMI (Human-Machine Interface) systems for real-time monitoring and control
Power and Energy Management: Integrated into power distribution and energy management systems for precise control and monitoring

Please note that these specifications and details may vary slightly depending on the specific version or manufacturing batch of the product. It is always recommended to consult official product documentation or contact the manufacturer for precise and up-to-date information.

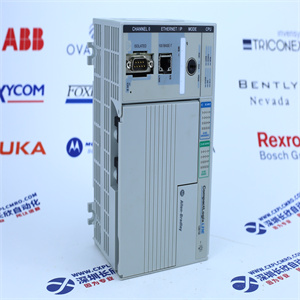

A-B 1769-L23E-QB1B

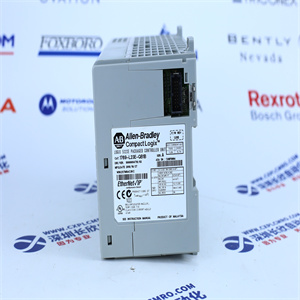

A-B 1769-L23E-QB1B

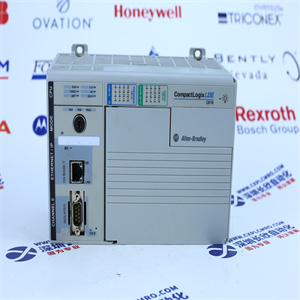

A-B 1769-L23E-QB1B
