Description

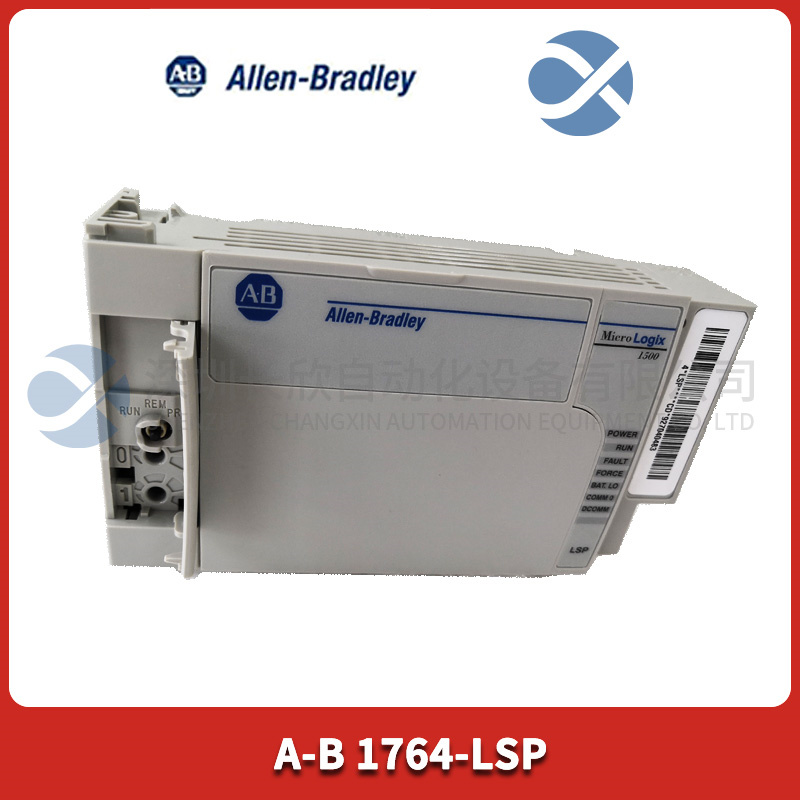

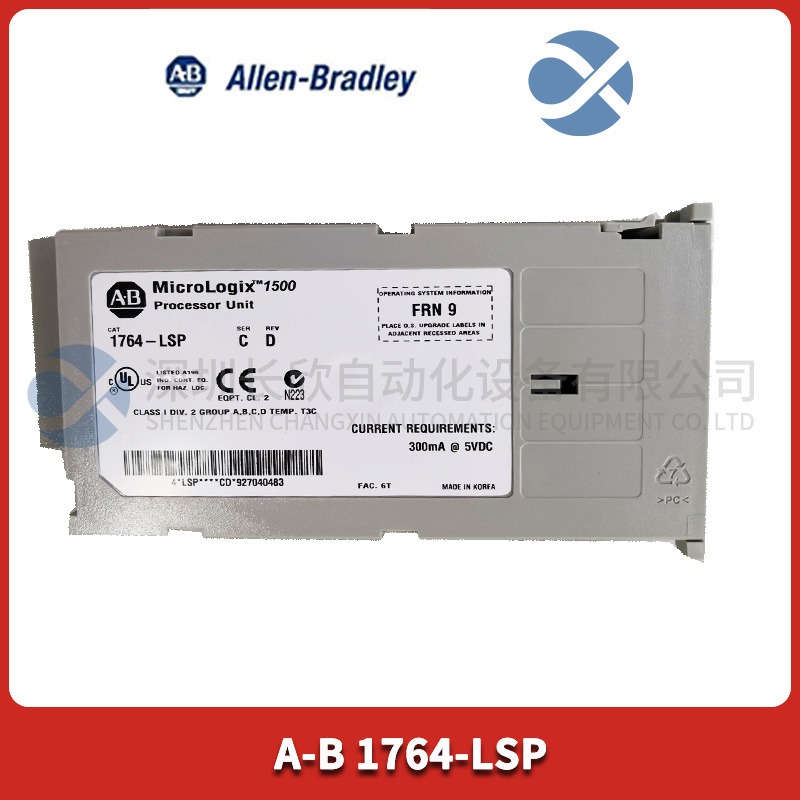

| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1764-LSP |
| Series | MicroLogix 1500 |
| Product Family: | MicroLogix |
| Function | Processor Unit |
| Product Type: | MicroLogix Controller |
| Memory | 7.6 Kb |
| Supported Base Units: | 1764-AWA; 1764-BWA; 1764-BXB |
| Communication Ports | DH-485, Modbus, DF1, and ACSII |
| Enclosure Type | IP20 |
| Power supply: | MicroLogix Bus |
| Output Source | Relay Port and DC FET |
| Heat Dissipation: | 1.9 Watts |
| Bus Current Draw: | 380 MA |
| Communication Port: | 1; RS232 |
| Digital Trim Potentiometers | 2 built-in |
| User Memory: | Series B; 12K (8K Program; 4K Data) Series C: 14K (10K Program; 4K Data) |
| Compatible Memory Module | 1764-MM1, 1764-MM2, 1764-MM3 |
| Communication Protocol: | Channel 0: DF1, DH485, Modbus, ASCII |
| Compatible Real Time Clock | 1764-RTC |
| RS232 Topology: | Point to point |
| UPC | 10611320023630 |
| Support for removal under power: | 28 |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Expansion I/O: | 512 |
The Allen-Bradley 1756-L61 is a ControlLogix controller. It has 2 MB user memory and 478 kb I/O memory available, with an optional non-volatile storage memory of 128 MB with the use of 1784-CF128 CompactFlash memory card. It is a chassis-based controller and can be placed in any available slot of the 1756 ControlLogix chassis. Compatible chassis for this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and the 1756-A17. It has an open-style type of enclosure and can support up to a maximum of 250 controller connections. It also has a built-in RS-232 serial communication port. Supported protocols of the RS232 port are DF1 full/half-duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.
It has a maximum digital I/O of 128,000, a maximum analog I/O of 4,000, and a maximum total I/O of 128,000. Controller tasks of the 1756-L61 include 32 tasks, 100 programs per task, and event tasks: all event triggers. The 1756-L61 has various communication options, such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, Remote I/O, and third-party process and device networks. The current draw of the 1756-L61 controller is 1200 mA at 5.1V DC and 14 mA at 24V DC. Power dissipation is at 3.5 W and thermal dissipation is 11.9 BTU/hr. It also has a continuous isolation voltage of 30V and has been tested at 720V DC for 60 s. It has an operating temperature of 0 to 60 Degrees Celsius, a storage temperature of -40 to 85 Degrees Celsius, and a maximum surrounding air temperature of 60 Degrees Celsius. Relative humidity is between 5% to 95% (noncondensing) and its vibration is 2 g at 10 to 500 Hz, with operating and non-operating shocks of 30 g and 50 g respectively.
