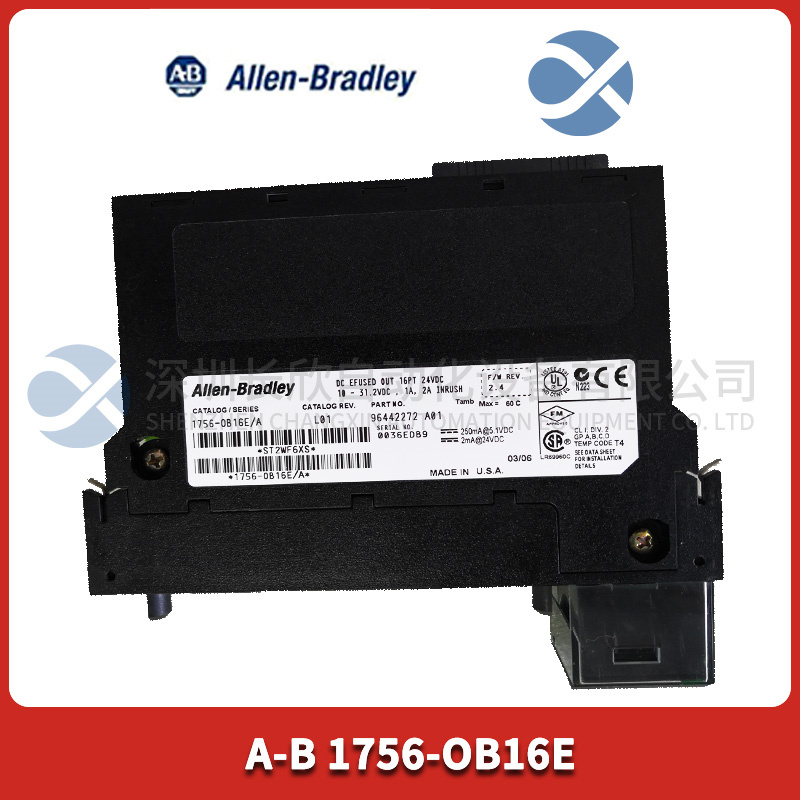

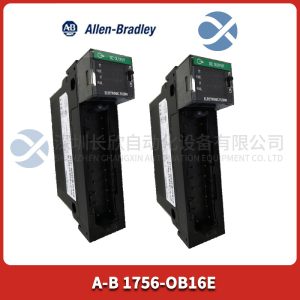

A-B 1756-OB16E

Description

The A-B 1756-OB16E is A single slot width module that is compatible with any 1756 ControlLogix controller and can be installed into any 1756 ControlLogix rack 1.

A-B

The 1756-OB16E is a discrete output module that is part of the ControlLogix Programmable Automation controller (PLC) platform with sixteen output channels divided into two electronic fusion groups of eight channels each, typically used to drive 24VDC rated devices. Such as relay coils, solenoid drive devices, indicators, alarms, and other similar electrical loads2.

A-B 1756-OB16E specifications are as follows 12:

Output current: 1A 60°C per channel or 8A 60°C per module.

Surge current: 2A.

Load current: Minimum 3mA per channel.

Off-state leakage current: 1mA per point.

Dc voltage: 400mV.

On-state voltage drop: 400mV for each point 1A.

Backplane current: 250mA at 5VDC and 2mA at 24VDC.

Backplane power: 1.32W.

Power consumption: 4.1W 60°C.

Voltage category: 12~24VDC power supply voltage, 10~31.2VDC operating voltage.

A-B 1756-OB16E parameters are as follows:

Output channels: Sixteen output channels.

Output voltage: 12 to 24 volts DC supply voltage.

Rated current: 1 amp (60 degrees Celsius) per channel.

Maximum current: 3 amps (60 degrees Celsius) per channel.

Surge current: 2 amps per point for 10 milliseconds.
