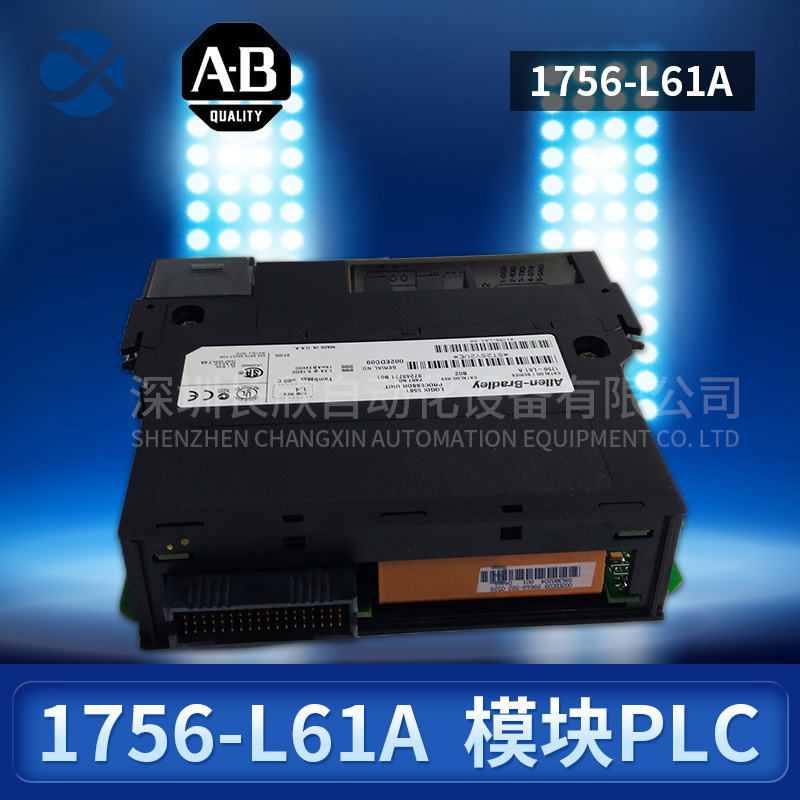

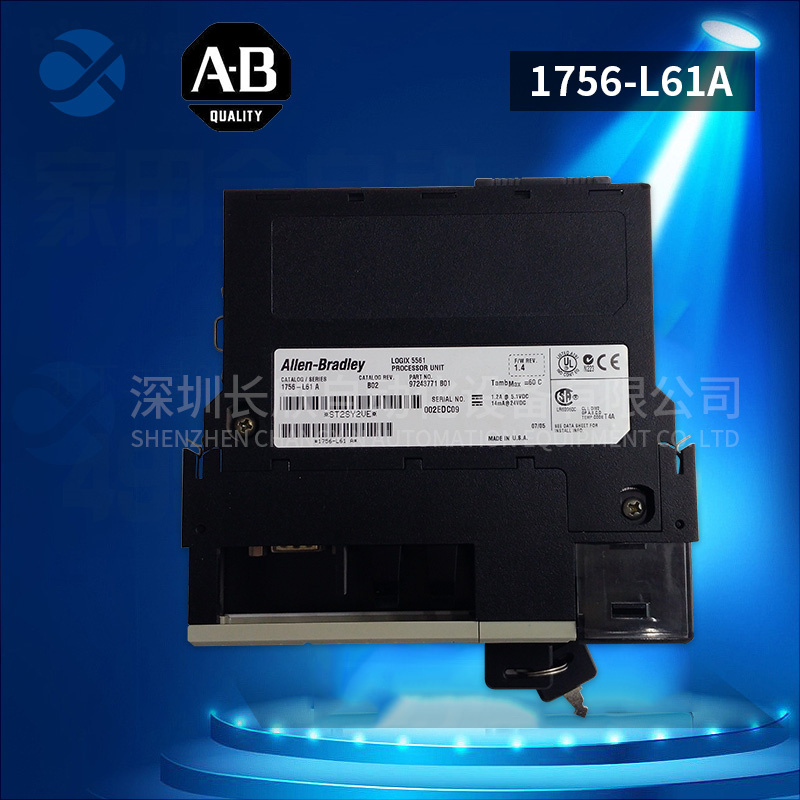

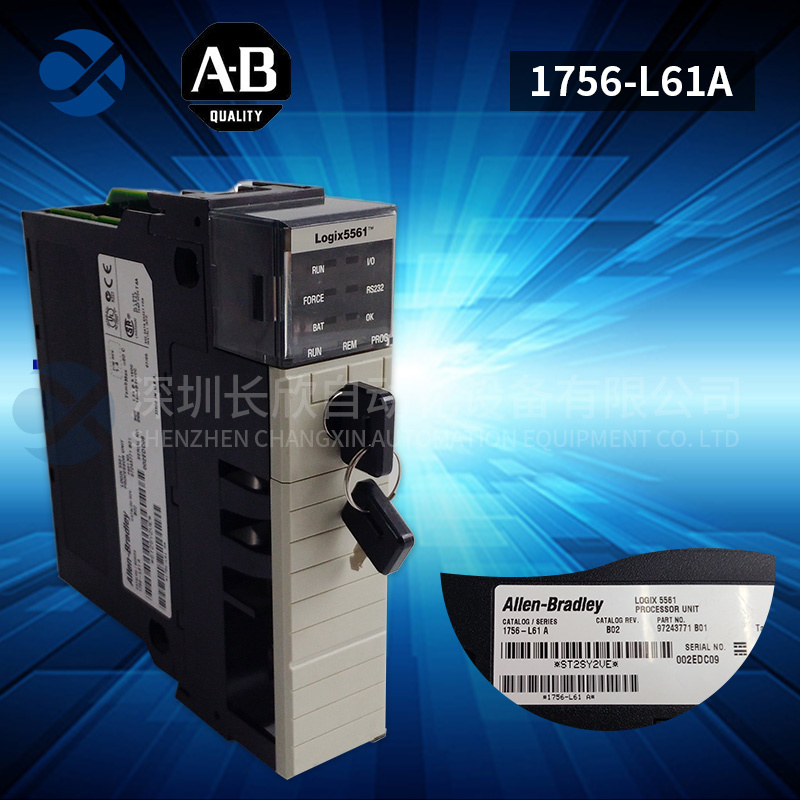

A-B 1756-L61A

Description

The A-B 1756-L61A is part of the programmable automation control system manufactured by Rockwell Automation and is one of the controllers in the ControlLogix series.

A-B

The 1756-L61A has 2MB of user memory and 478kbI/O memory, as well as 128MB of optional non-volatile storage memory using a 128-CF1784CompactFlash memory card. It is a chassis based controller that can be placed in 1756

ControlLogix chassis in any available slot 2.

A-B

Specifications of the 1756-L61A are as follows: 1

Controller type: Programmable automation controller.

Memory: 2MB user memory, 478kbI/O memory.

Memory card: 128MBCompactFlash memory card.

Controller Size: 1756 ControlLogix Any available slot in the chassis.

Controller weight: 0.075 lb (340.2 g).

Parameters of A-B 1756-L61A are as follows: 1

Current consumption: 1mA at 1200.5V DC, 24mA at 14V DC.

Power consumption: 3.5W.

Heat dissipation: 11.9 BTU/ hour.

Continuous isolation voltage: 30V.

Test voltage: 720V DC.

Operating temperature: 0-60℃.

Storage temperature: -40-85℃.

Maximum ambient air temperature: 60℃.

Relative humidity: 5%-95% (non-condensing).

Vibration: 2-10Hz, 500g.

Working impact: 30g.

Non-working impact: 50g.
