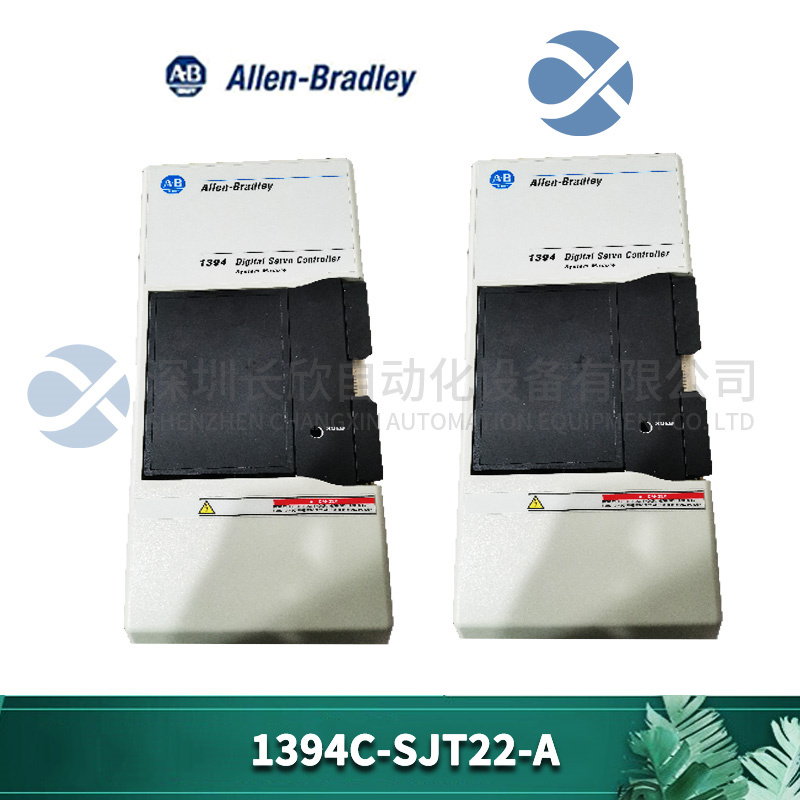

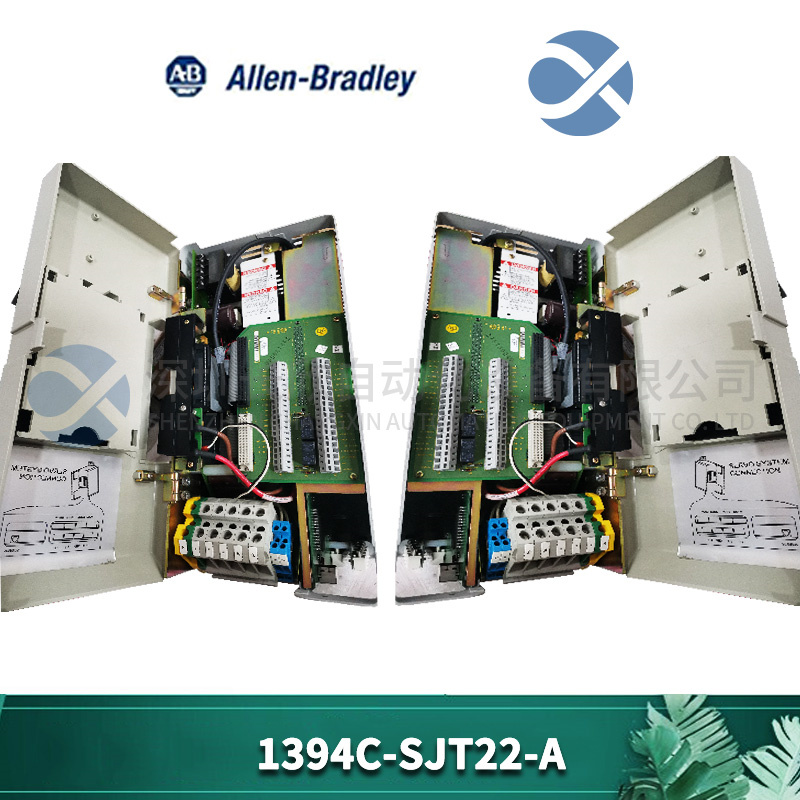

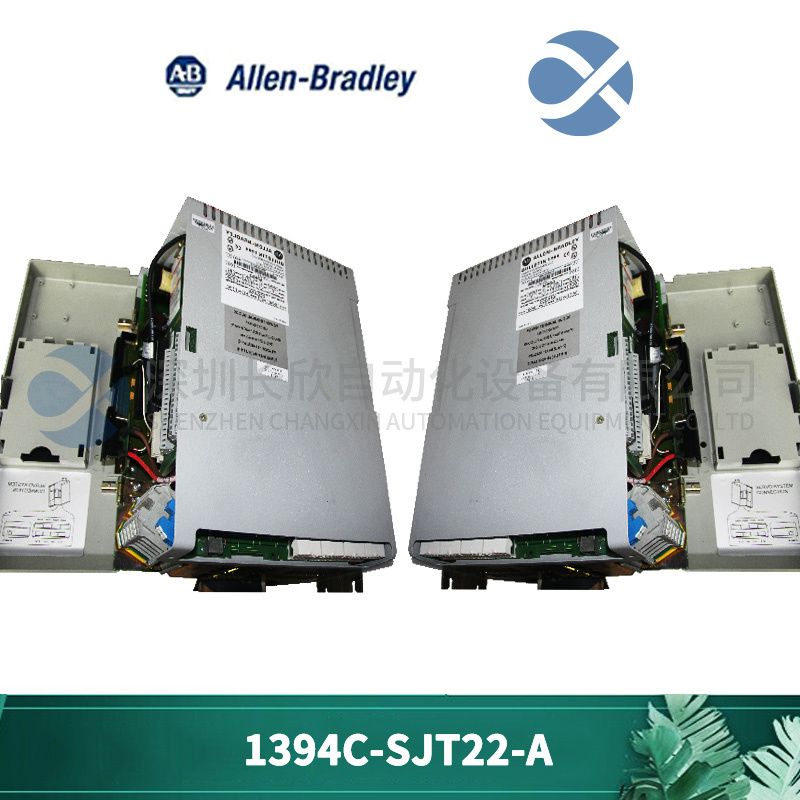

A-B 1394C-SJT22-A

Description

The 1394C-SJT22-A is an Allen-Bradley servo controller with analog module functionality and a ±10 volt DC analog interface. It is a CSeries system module with features such as smart power, EMI filtering and improved terminals. The 1394C-SJT22-A system supports up to four axes and is used as a speed or torque controller. It comes with a Bulletin 1201 human-machine interface module that allows for automatic adjustment and quick startup. The 1394C-SJT22-A also has a SCANport interface, continuous output current of 33.8 amps at DC voltage, continuous output power of 22 kW, and a three-phase power supply. The 1394C-SJT22-A has power inputs such as 24 volt AC power, disconnect function, fuse box, and 24 volt DC power for motor brakes and hot contacts.
