Description
Product Description

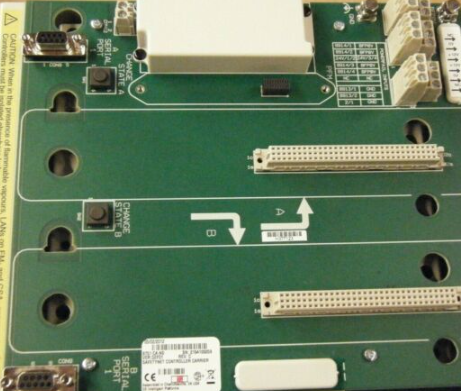

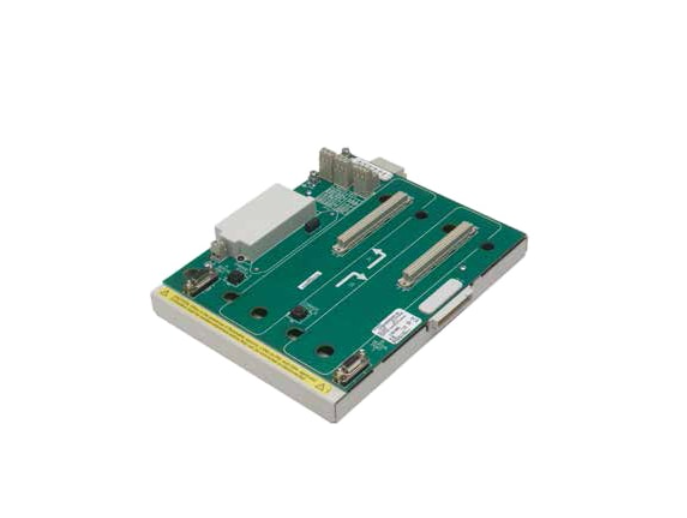

8751-CA-NS GE PAC8000 Controller Carrier
Function:Provide an installation platform for the GE PAC8000 secure network controller
Usage:Used for various industrial safety applications
Features:
A platform that can accommodate up to two SafetyNet controllers
Leakage fault detection terminal
9-pin,D-type(female head)(x2)
Flat panel(4 fixed parts)
The ELFD controller bracket provides an installation platform for up to two SafetyNet controllers(8851-LC-MT).It can also accommodate a power monitoring module(8410-NS-PS),which can monitor the operation status of up to two 8913-PS-AC,four 8914-PS-AC power supplies,and the 12V power supply of the intrinsic safety module(when used).Each controller has a serial port connector and a manually operated”change state”button.The operator also provides terminals that need to be used for leakage fault detection.
The 8751-CA-NS GE PAC8000 controller carrier is a product used for installing GE PAC8000 secure network controllers.It can provide installation platforms for two controllers and provide power monitoring and ground leakage fault detection functions.
The controller carrier adopts a sturdy and durable design,suitable for various industrial environments.It is easy to install and use,and can help users quickly deploy secure network controllers.
Product parameters
Input voltage:24 VDC
Power consumption:<10 W
Dimensions:225 mm x 175 mm x 85 mm
Weight:2.5 kg
Product specifications
Supported secure network controllers:8851-LC-MT
Power monitoring module:8410-NS-PS
Ground leakage fault detection:supported
Application field
Oil and natural gas
Chemical industry
Electricity
Pharmaceutical
Food and Beverages
Metallurgy
Water treatment
Environmental protection
