531X305NTBANG1 F31X305NTBANG1

Description

531X305NTBANG1 F31X305NTBANG1

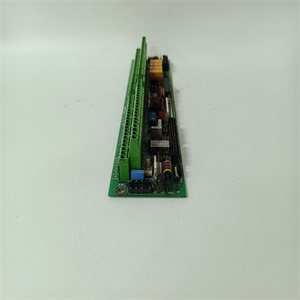

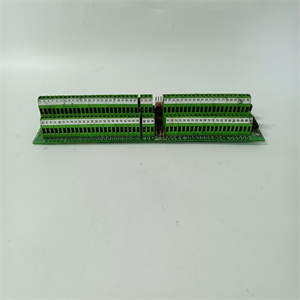

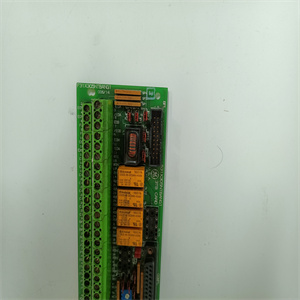

GE 531X305NTBANG1/F31X305NTBANG1 is a modular interface board manufactured by General Electric (GE) and widely used in industrial automation systems. The following is a comprehensive description of the detailed parameters, specifications, dimensions, weight, series, features and functions of this product.

Parameters and Specifications

Input voltage: 24V DC
Output voltage: 24V DC
Maximum output current: 10A
Operating Temperature Range: -40℃ to +70
Communication interface: Support Ethernet and RS485 protocols.
Mounting: DIN-rail mountable

Dimensions and weight

The dimensions of the module vary depending on the source:

According to some sources, its external dimensions are 150mm × 100mm × 50mm.
Another source states that the dimensions are 531 mm x 305 mm x 65 mm.
Still another source mentions a width of 105 mm, a height of 130 mm and a depth of 86 mm.

There are also different accounts of its weight:

Some sources state that it weighs 1.5 kilograms.
Another source mentions a weight of between 1.2 and 2.2 kilograms.

Materials and Certifications

The module is made of industrial-grade PCBs and has good durability. The housing material is polycarbonate and is CE, UL and RoHS compliant.
Features and Functions

The GE 531X305NTBANG1/F31X305NTBANG1 module supports a wide range of communication protocols and can be seamlessly integrated with different devices and systems. It includes passive interface circuitry and connection terminals for most external signal-level inputs/outputs. In addition, the module has a fast response time of less than 5 ms for digital inputs.
Application Areas

Due to its high reliability and flexibility, the GE 531X305NTBANG1/F31X305NTBANG1 is primarily used in a variety of industrial automation systems that require high performance interface solutions. These systems may include, but are not limited to, signal processing and control applications within drive cabinets.
Conclusion

The GE 531X305NTBANG1/F31X305NTBANG1 is a powerful and reliable modular interface board for a wide range of industrial automation environments. Its diverse communication interfaces and wide temperature adaptation range make it ideal for a variety of complex systems. However, for specific applications, it is recommended to refer to the official documentation or contact the manufacturer for the most accurate and up-to-date product information.
