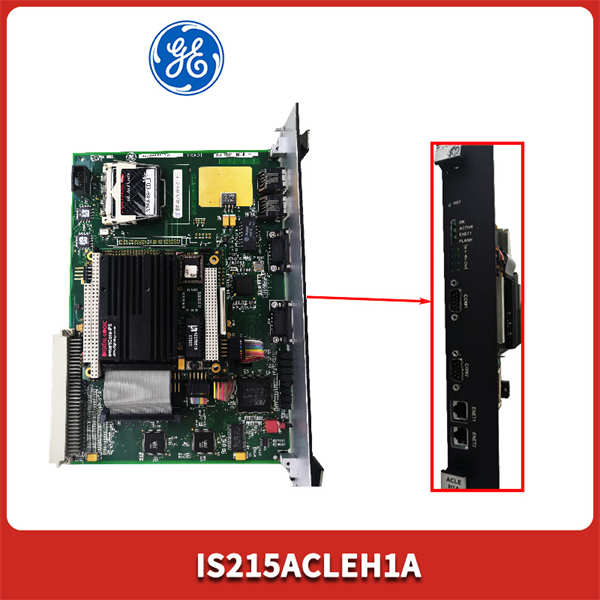

IS215ACLEH1A GE Application Control Layer Module

Product Description:

The IS215ACLEH1A is a Microprocessor-Based Controller Module from GE’s Industrial Systems division. It is part of the EX2100 series and is designed for use as an application control layer module.

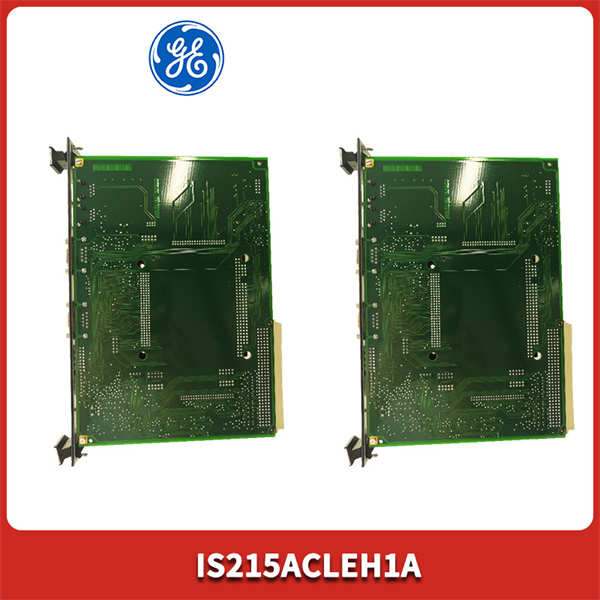

IS215ACLEH1A GE Application Control Layer Module

Product Parameters and Specifications:

Input Voltage Range: 10-30VDC

Output Voltage: 24VDC

Output Current: Maximum 5mA per channel

Power Consumption: 360W

Operating Temperature: -25°C to 70°C

Size: 96mm x 48mm x 16mm

Weight: Approximately 1.2kg

Series:

The IS215ACLEH1A belongs to the EX2100 series of controllers from GE, which are specifically designed for use in industrial control applications.

Features:

Microprocessor-Based: The module is built around a microprocessor, enabling it to perform complex control tasks.

PCI Controller: Equipped with a PCI (Peripheral Component Interconnect) controller for efficient data communication.

Ethernet Ports: Features two Ethernet ports for network connectivity.

LED Indicators: The module has LED indicators for status monitoring, such as Active, OK, ENET, Status, and Flash.

BIOS Functionality: Supports the Basic Input/Output System (BIOS), initializing and recognizing other hardware components.

Functions:

Serves as a controller in industrial automation systems, responsible for executing control logic and managing system resources.

Supports communication with other modules and devices within the industrial control system.

Monitors system status and provides feedback through LED indicators.

IS215ACLEH1A GE Application Control Layer Module

Applications and Uses:

The IS215ACLEH1A GE Application Control Layer Module finds applications in various industrial control systems, including:

Power Generation: Used in power generation systems for monitoring and controlling the operation of turbines, generators, and other critical equipment.

Oil and Gas: Applied in oil and gas processing facilities for managing the flow of fluids and monitoring equipment status.

Manufacturing: Integrated into manufacturing systems for controlling production lines, robots, and other automation equipment.

Water and Wastewater Treatment: Utilized in water and wastewater treatment plants for monitoring and controlling water flow, treatment processes, and equipment status.
