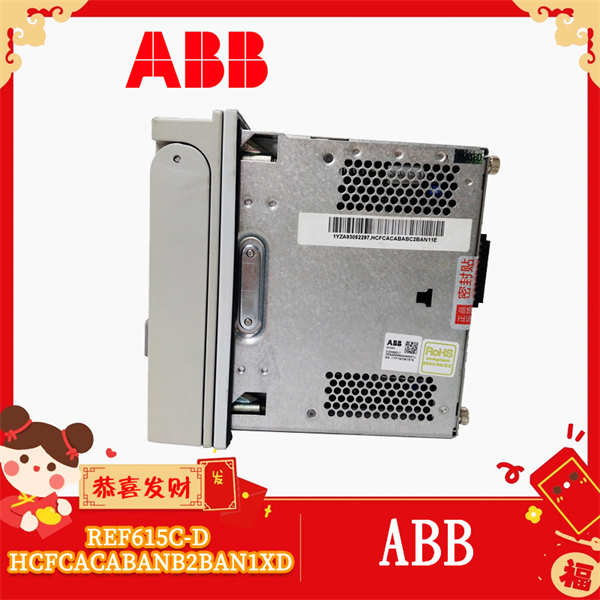

ABB REF615C-D-HCFCACABANB2BAN1XD Control Relay

Product Description:

The ABB REF615C-D-HCFCACABANB2BAN1XD control relay is a high-performance device designed for the protection and control of electrical systems. It offers a range of features and functions to ensure the reliable and safe operation of power systems in various industrial and commercial applications.

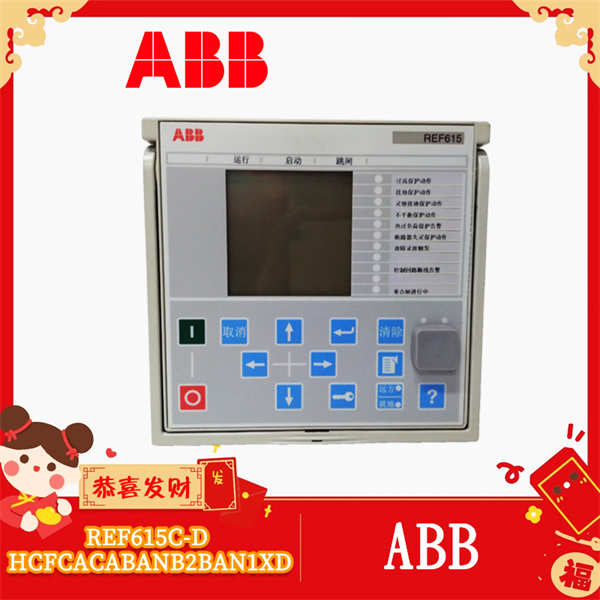

ABB REF615C-D-HCFCACABANB2BAN1XD Control Relay

Product Parameters:

Type: Control Relay

Voltage Rating: Depends on the specific model and configuration

Current Rating: Depends on the specific model and configuration

Operating Temperature: -25°C to +70°C

Storage Temperature: -40°C to +85°C

Humidity: Up to 95% non-condensing

Product Specifications:

Dimensions: Compact design for easy installation and integration

Weight: Lightweight for convenient handling and transportation

Protection Class: IP20 (Indoor use)

Series:

The REF615C-D-HCFCACABANB2BAN1XD belongs to the ABB’s REF615 series of control relays. This series offers a wide range of relays, each designed to meet specific requirements in power system protection and control.

Features:

Compact Flash Memory and Internal Storage: Allows for the storage of event logs, settings, and other critical information

Network Capabilities: Built-in network server for remote monitoring and control from anywhere in the world

Large Display: Front-mounted LCD color display for easy reading of instantaneous values, event logs, and alarms

Versatile Communication: Supports various communication protocols, such as IEC 61850 and Modbus, for seamless integration with other devices and systems

Automation Functions: Provides advanced control operations, including automatic reclosing, current differential protection, and synchronized operations

High Reliability: Manufactured by ABB, a globally recognized leader in power and automation solutions

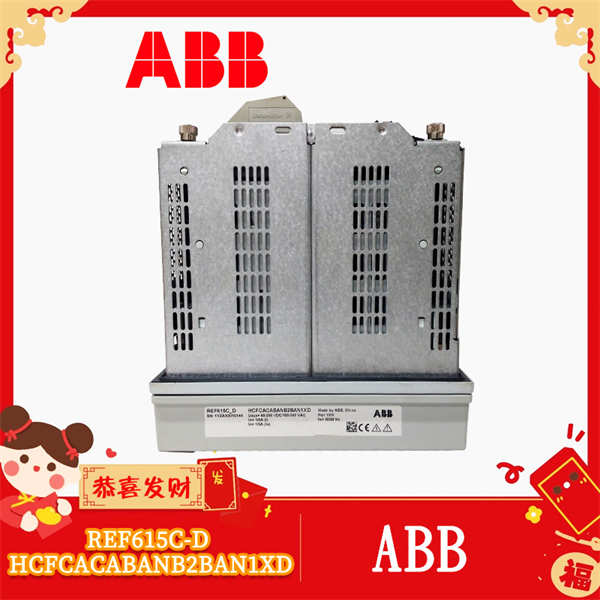

ABB REF615C-D-HCFCACABANB2BAN1XD Control Relay

Functions:

Monitoring and Protection: Continuously monitors the status of the power system, protecting it from faults and ensuring its reliable operation

Control Functions: Integrates with other devices and systems to provide automated control of electrical equipment and processes

Event Recording and Analysis: Records and stores event logs, alarms, and other critical information for subsequent analysis and troubleshooting

Applications and Uses:

The ABB REF615C-D-HCFCACABANB2BAN1XD control relay finds applications in various industries and power systems where reliable protection and control are crucial. It is suitable for use in power stations, industrial facilities, and other critical infrastructure, where it protects equipment from electrical faults and ensures the safe and efficient operation of the system
