　　Product Description

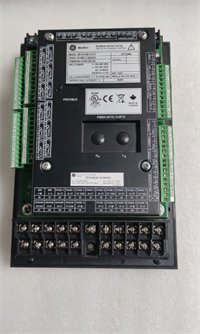

　　369-HI-R-M-0-0-0-E GE Motor Management Relay

　　Function:

　　Control motor start and stop

　　Provide protection for motor overload,short circuit,undervoltage,etc

　　Monitor the operation status of the motor

　　Usage:

　　Various industrial applications,such as motors,fans,pumps,compressors,etc

　　Renewable energy applications,such as photovoltaics and wind power

　　Transportation applications,such as electric vehicles and rail transit

　　Features:

　　High performance

　　High reliability

　　Easy to install and use

　　Product Description:

　　369-HI-R-M-0-0-E GE Motor Management Relay is a high-performance and highly reliable motor management relay that utilizes advanced control technology to provide comprehensive protection and monitoring of the motor.This relay has the characteristics of high performance and high reliability,and is suitable for various industrial applications.

　　Multilin’s 369-HI-RM-0-0-0-E aims to protect and control the motor and its accompanying components through functions such as pre trip alarms and over torque correction.

　　369-HI-RM-0-0-0-E is part of the General Electric Multilin 369 series motor management relays.The 369 and its upgraded versions and accessories of this model are about to be discontinued and are in the final purchase state.After the product line is discontinued,some upgrades can still be added,such as conformal coatings as protective layers against corrosion,high temperature,dust,and humidity.

　　Multilin’s 369-HI-RM-0-0-0-E is designed to protect and control the motor and its accompanying components.369 achieves this goal through various built-in features,including:

　　Measurement:369 can monitor voltage,wattage,frequency,and energy,and generate protection functions based on the generated value data.

　　Event recording:At the end of the trip,369 can immediately report the cause of the trip,as well as the temperature and data values during the trip,allowing users to analyze any issues that may arise in the system.

　　Pre trip alarm:When tripping is caused by grounding faults,mechanical blockages,RTD overheating,etc.,369 can notify the user before tripping.

　　Motor Health Report:Relays can use learned information and system trip history to determine when and where maintenance may be needed.

　　Oscillographic:When tripping,three waveform records are triggered and sixteen data cycles are captured.During this process,phase current,ground current,and contact input status will be captured.

　　The large amount of data generated by the 369-HI-RM-0-0-0-E relay and the protection functions used help reduce troubleshooting time and extend system life,making it an excellent choice for medium-sized motors.

　　Product Description:

　　369-HI-R-M-0-0-0-E GE Motor Management Relay is a multifunctional motor management relay that includes:

　　Motor start and stop control

　　Motor overload,short circuit,undervoltage protection,etc

　　Motor operation status monitoring

　　Product parameters:

　　Model 369-HI-R-M-0-0-0-0-E

　　Rated voltage 50-300 VDC/40-265 VAC

　　Rated current 30 A

　　Power 9000 VA

　　Control method three-phase AC

　　Protection functions overload,short circuit,undervoltage,overheating

　　Monitoring function current,voltage,power,frequency

　　Communication protocol Modbus RTU

　　Auxiliary output 1 relay output

　　369-HI-RM-0-0-0-E Technical Specifications

　　Digital/Switch Input Quantity 6 Optoelectronic Isolation

　　Maximum ambient humidity of up to 95%without condensation

　　Approximately:11.5 inches high x 5.5 inches wide x 8.5 inches long

　　Display Version Enhanced

　　Fuse 3.15 ampere hours 250 volts

　　Input power 110-250VDC 100-240VAC

　　Phase current input 1 A and 5 A secondary

　　Weight 8 pounds

　　Application field

　　The 369-HI-R-M-0-0-E GE motor management relay is widely used in the management of large and medium-sized motors in fields such as power,petrochemicals,metallurgy,water treatment,papermaking,and material transportation.

369-HI-R-M-0-0-0-E GE

369-HI-R-M-0-0-0-E GE Motor Management Relay
