Description
Technical Specifications for 2711-K3A17L1
| Status Indicators: | COMM: Green Fault: Red |
| Communication ports: | RS232 (DF1) |
| Application memory: | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Keypad Assembly: | 8 function keys (F1…F8); Cursor keys; Numeric entry keys |
| Resolution: | 128 x 64 Pixels |
| Display Area: | 73 mm (w) x 42 mm (h) 2.87 in. (w) x 1.67 in. (h) |
| Display Type: | Monochrome transflective LCD with LED backlight |
| Product Type: | PanelView 300 Standard Operator Terminals |
| Product Family: | PanelView Standard Operator Terminals |
| Manufacturer: | Rockwell Automation |
| Input Voltage range: | 18…32V DC (24V DC nom) |
| Enclosure: | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Brand | Allen-Bradley |
| Backlight | 100,000 hr LED backlight life |
| Part Number/Catalog No. | 2711-K3A17L1 |
| Product Line | Panelview 300 |
| Display Size | 3 inches |
| Display Color | Monochrome |
| Input Type | Keypad |
| Communication | RS-232 (DF1) Communication Port |
| Input Power | 24 Volts DC |
| Memory | 240 KB |
| Communication Cable | 1761-CBL-PM02 |
| Shipping Weight | 3 pounds |
| Shipping Dimensions | 11 x 8 x 6 inches |
| Series | A and B |
| UPC | 10611320275138 |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 2711-K3A17L1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-K3A17L1 units instead of migration.

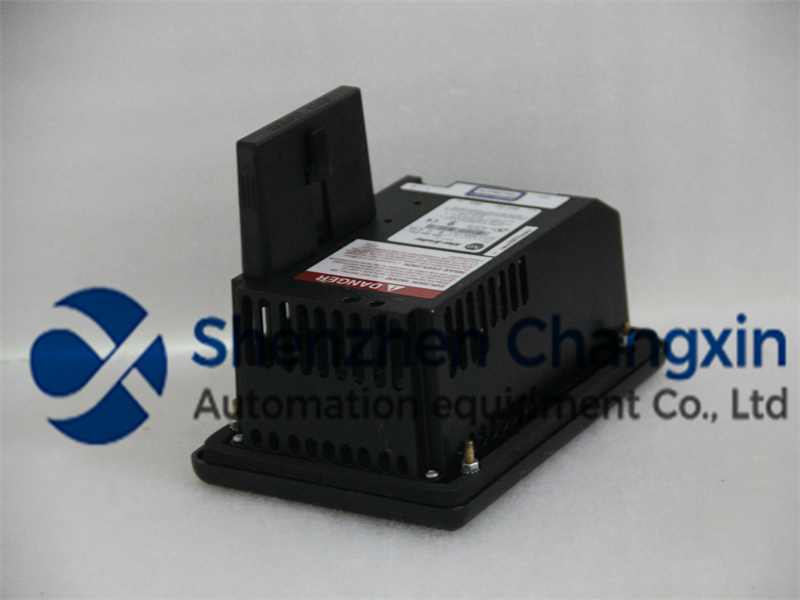

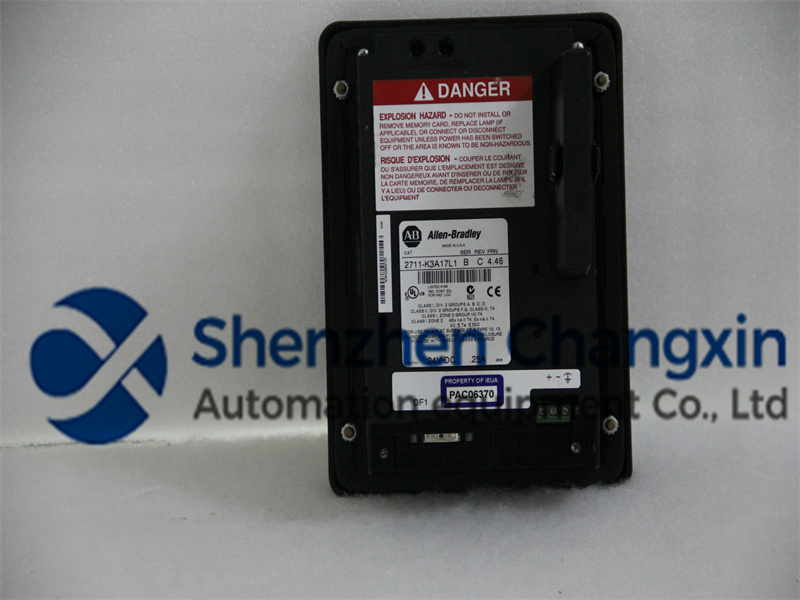

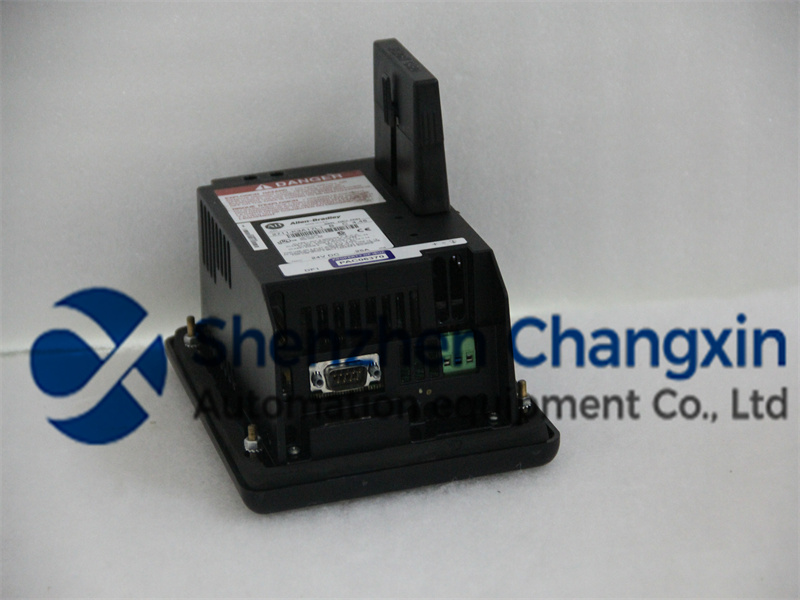

About 2711-K3A17L1
The Allen-Bradley 2711-K3A17L1 PanelView Standard 300 Terminal is part of the Allen-Bradley PanelView Standard terminal series. It is discontinued, but it can be used for controlling machines and applications with an ATA PC memory card for storing applications. It has a 3-inch monochrome transflective LCD with an LED backlight display with a resolution of 128 x 64 pixels, which makes it ideal for applications in brightly lit locations. The LED backlight of the display lasts for up to 100,000 hours. In addition, it features 8 function keys (F1-F8) which are used for initiating functions on the display. The 2711-K3A17L1’s features also include 4 arrow keys (up, down, left, and right) and a numeric keypad. The 2711-K3A17L1 has an RS-232 port which enables point-to-point communication when it is connected to Channel 0 of an SLC 5/03, SLC 5/04, or an SLC 5/05 controller. In addition, this port allows for application transfer between a personal computer and the PanelView terminal. The RS-232 port enables the PanelView terminal to connect to a printer to print alarm and triggered messages, alarm lists, and the triggered states of a multi-state indicator. This device requires a 24 Volts DC of power with a maximum power consumption of 10 Watts (0.42 Amps at 24 Volts DC). The PanelBuilder32 software works with the 2711-K3A17L1 PanelView Terminal. This software makes it possible to convert and reuse existing applications and the software is compatible with the Microsoft Windows 2000, ME, XP, or Vista operating systems.
