Description
Technical Specifications for 1794-OE4
| Manufacturer | Rockwell Automation |
| Wire Size: | Determined by installed terminal base |
| External DC supply, nom: | 24V DC |
| Indicators: | 1 green/red power/status indicator |
| Terminal base: | 1794-TB2, -TB3, -TB3S, -TB3T, -TB3TS, and -TBN |
| Conversion Rate: | 1.024ms maximum all channels |
| Output type: | 0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC |
| No. of inputs: | Four (4) Single Ended |
| Product Description: | Flex IO High Density Analog Output Module |
| External DC supply range: | 10.0…31.2V DC (includes 5% AC ripple) |
| Mounting: | DIN Rail |
| Brand | Allen-Bradley |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Storage Temperature: | –40…85 °C (–40…185 °F) |
| Resolution | 12 bits plus sign Voltage: 2.56mV/cnt Current: 5.13µA/cnt |
| Data Format | left justified, 16 bit 2s complement |
| Conversion Type | Pulse Width modulation |
| Vibration: | 5g @ 10 to 500 Hz |
| Part Number/Catalog No. | 1794-OE4 |
| Product Type | Flex I/O Output Analog Module |
| Outputs | 4 Single-ended |
| Output Current Terminal | 4 to 20 mA |
| Output Voltage Terminal | +/- 10 Volts |
| Current Load on Voltage Output | 3 mA maximum |
| Flexbus Current | 20 mA |
| Power Dissipation | 4.5 W at 31.2 Volts DC maximum |
| Thermal Dissipation | 13.6 BTU/hour at 31.2 Volts DC maximum |
| UPC | 10612598137876 |
| UNSPSC | 32151602 |

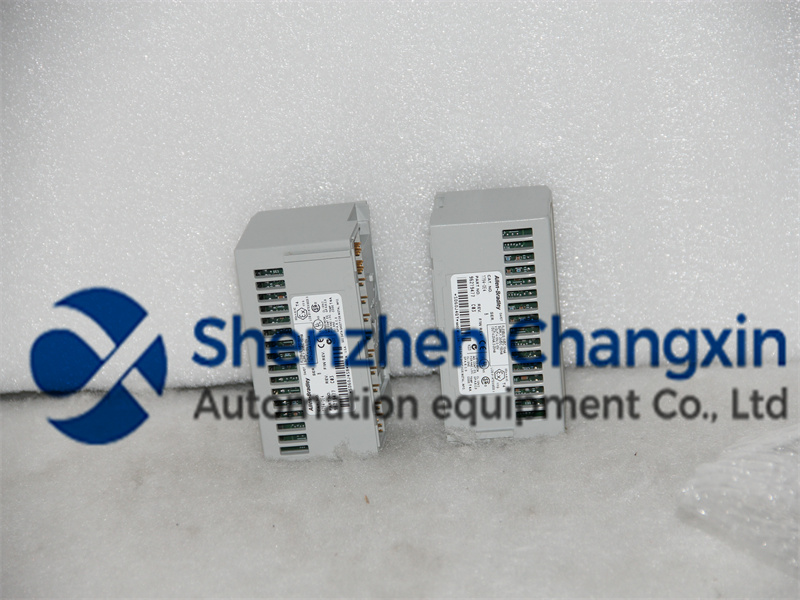

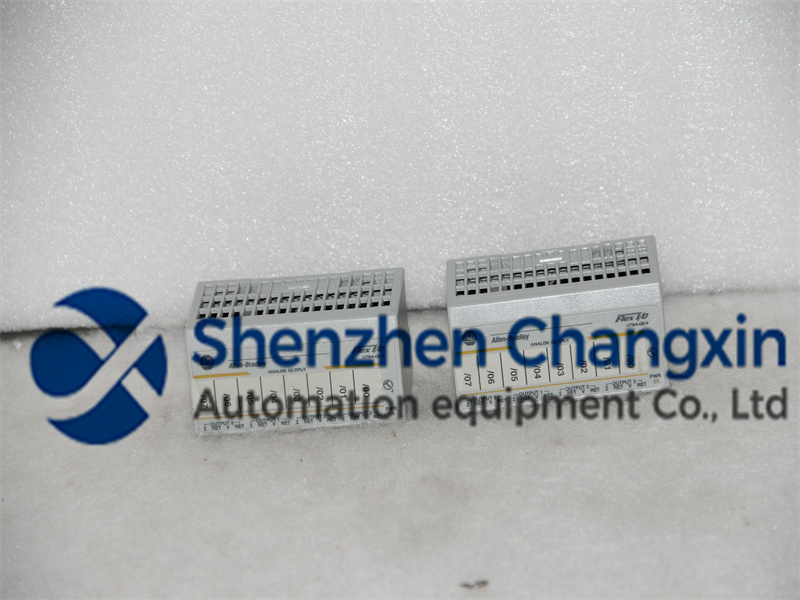

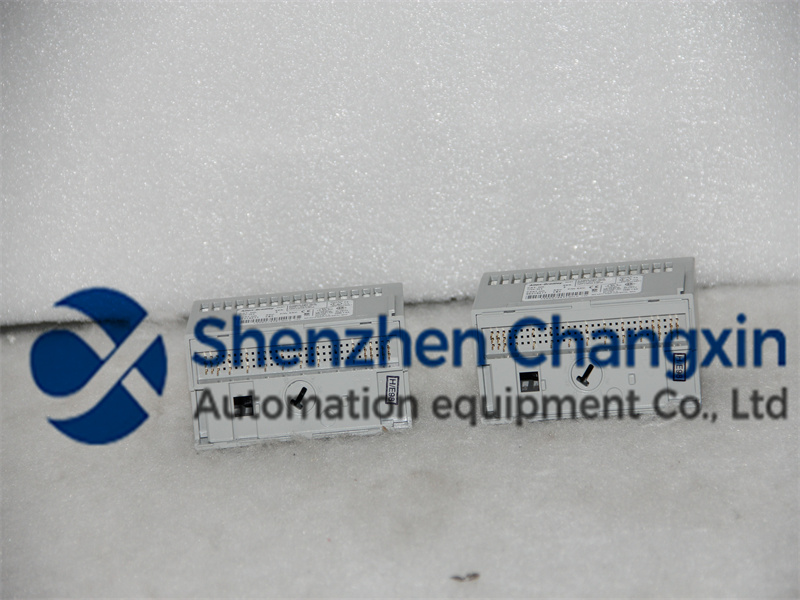

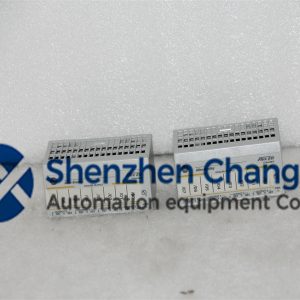

About 1794-OE4
The Allen-Bradley 1794-OE4 is an analog output module from the Flex IO product family. This module is used as a component of Distributed I/O node, compatible with Flex I/O communication adapters such as Ethernet, ControlNet, Profibus and Remote I/O. This module features Four (4) user configurable output channels, designed to provide 0 to 20mA, 4 to 20 mA current signals and, +/- 10VDC and 0 to 10 VDC voltage signals signals. Use this module to implement automatic and manual control of modulating devices such as Variable Frequency Drives (VFD), modulating control valves, converters, transducers, dampers, louvers and other Final Control Elements (FCE). The output channels of this module support non-isolated, single ended configuration.
The 1794-OE4 has a resolution of 12 bits plus sign with specific increments and decrements of 2.56mV/cnt for voltage and 5.13µA/cnt for Current. The module’s analog data is stored to a registered formatted as left justified, 16 bit 2’s complement. This register is converted using pulse width modulation method.
