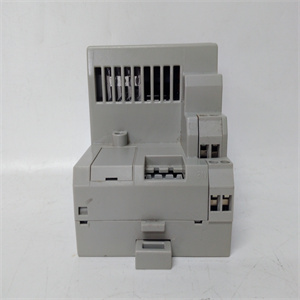

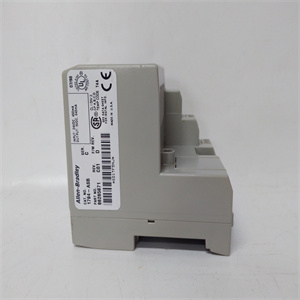

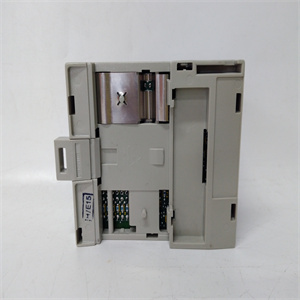

1794-ASB

Product Model: 1794-ASB | US – Rockwell

Product Parameters:

• Brand: Allen-Bradley (Rockwell Automation)
• Product Type: Flex I/O Communication Adapter
•

  1794-ASB

Product Specifications:

• Input/Output Capacity: 8 modules⁴⁷
• Rated Input Voltage: 24 VDC nominal¹²
• Input Voltage Range: 11.0 – 31.2 V DC¹²
• Communication Rates: 57.6 kbps, 115.2 kbps, 230.4 kbps¹²
• Flexible Bus Output Current: Max 640 mA⁴⁷
• Isolation Voltage between User Power and Flexible Bus: 500 V AC¹²
• Power Consumption: 24 V at 330 mA; 12 V at 730 mA¹²
• Maximum Power Dissipation: 4.6 W¹²
• Operating Temperature: 32 to 131°F⁴⁷
• Operating Humidity: 5% to 95%, non-condensing¹²
• Vibration: 5g @ 10-500 Hz¹²

Dimensions:

• External Dimensions: Not explicitly stated in the search results, but typically such modules are compact and designed for DIN rail mounting.

Weight:

• Approximate weight is 800g (as stated in search result [3]), but this may vary depending on the actual configuration and accessories.

Features:

• Flexibility: Supports installation of up to 8 flexible I/O modules¹².
• Communication Flexibility: Supports multiple communication rates (57.6 kbps, 115.2 kbps, 230.4 kbps) for connecting to controllers with RIO function⁴⁷.
• DIN Rail Mounting: Designed for easy installation on standard 35mm DIN rails³⁴⁷.
• Isolation: Provides isolation between user power and the flexible bus for safety¹².

Functions:

• Communication Adapter: Serves as an interface between flexible I/O racks and controllers with RIO function, enabling data exchange¹².
• Flexible I/O Connectivity: Allows for the connection of various flexible I/O modules to expand system capabilities¹².
•

  1794-ASB

Application Areas:

• Industrial Automation: Used in various industrial automation systems to provide communication and control capabilities³.
• Process Control: Suitable for process control applications requiring reliable and flexible communication³.
• Distributed Control Systems: Part of distributed control systems, enabling data exchange and control between distributed components⁴.

Please note that the specifications and information provided are based on the search results available at the time of writing and may vary depending on the actual product configuration and manufacturer’s specifications. Always refer to the official product documentation for the most accurate and up-to-date information.
