Description
Technical Specifications for 1785-L20B
| Manufacturer | Rockwell Automation |
| Product Type: | Programmable Logic Controller |
| Backplane current load: | 2.3 A |
| Embedded Communication interfaces: | 1 DH+ (Fixed) 1 DH+/Remote I/O (Adapter or Scanner) 1 serial port, configurable for RS-232 and 423 and RS-422A standards |
| Memory: | 16 Kwords |
| Battery: | 1770-XYC |
| Maximum Number of I/O Racks: | 4 (0-3) |
| Remote I/O: | 12 chassis |
| Operating Temperature: | EC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0…60 o C (32…140 o F) |
| Non-Operating Temperature: | IEC 60068-2-1 (Test Ab, Un-packaged Nonoperating Cold), IEC 60068-2-2 (Test Bc, Un-packaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Un- packaged Nonoperating Thermal Shock): –40…85 o C (– 40…185 o F) |
| Brand | Allen-Bradley |
| Power Dissipation: | 12 W |
| Power Supply: | 1771-P4S, -P6S, -P4S1, -P6S1 |
| Part Number/Catalog No. | 1785-L20B |
| Product Family: | PLC5 |
| Module Type | Standard Processor |
| Processor | PLC-5/20 |
| Max User Memory Words | 16 Kilowords |
| Battery-Backed Static RAM | Yes |
| EEPROM Program Backup Option (using 1785-ME16, -ME32, -ME64, and -M100) | Yes |
| Protected Memory | No |
| Max Total I/O | 512 (any mix) or 512 in + 512 out (complementary) |
| Max Analog I/O | 512 |
| I/O Scan Time Per Rack | 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s |
| Max I/O Chassis Total | 13 |
| Max I/O Chassis Extended Local | 0 |
| Max I/O Chassis Universal Remote | 12 |
| RS-232-C/422-A/423- A Ports | 1 |
| Control Coprocessor Expansion Port | Yes |
| UPC | 10612598123978 |
About 1785-L20B

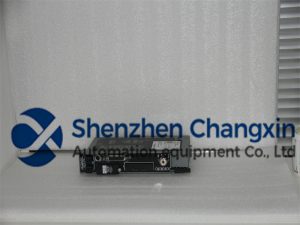

1785-L20B.2018.07.16
The Allen-Bradley 1785-L20B is a Programmable Logic Controller (PLC) module. This product is a PLC controller that belongs to the legacy PLC5 product family.
The 1785-L20B features a variety of embedded communication ports such as One (1) DH+ (Fixed), One (1) DH+/Remote I/O (Adapter or Scanner) One (1) serial port, configurable for RS-232 and 423 and RS-422A standards. These communications ports support individual configuration and independently functions from each other, They can be used simultaneously to implement the intended functions such as communication to compatible partner devices for data exchanges, communication with visualization devices and interaction with programming workstation.
The 1785-L20B’s embedded memory amounts to 16Kwords. This memory is a volatile memory, maintained by a lithium battery with catalog number 1770-XYC. This controller supports implementation of distributed I/O architecture via the DH+ or Remote I/O protocol. It may also be optionally installed with an Ethernet interface module for implementation of distributed I/O system over Ethernet. Up to Twelve (12) remote I/O chassis may be installed with this controller.

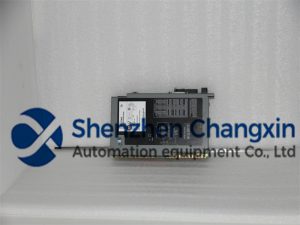

1785-L20B.2018.07.16

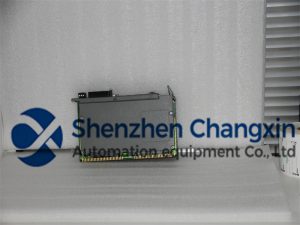

1785-L20B.2018.07.16
