1756-IF16 Allen-Bradley

Description

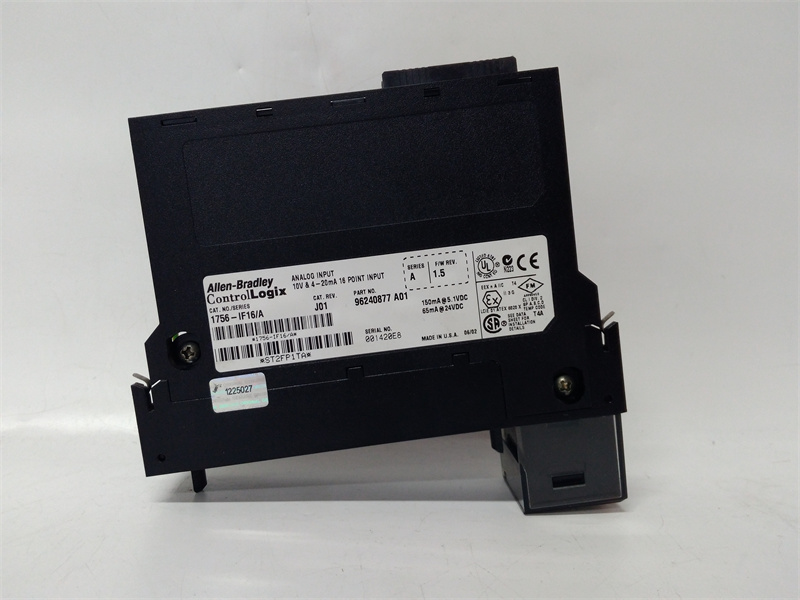

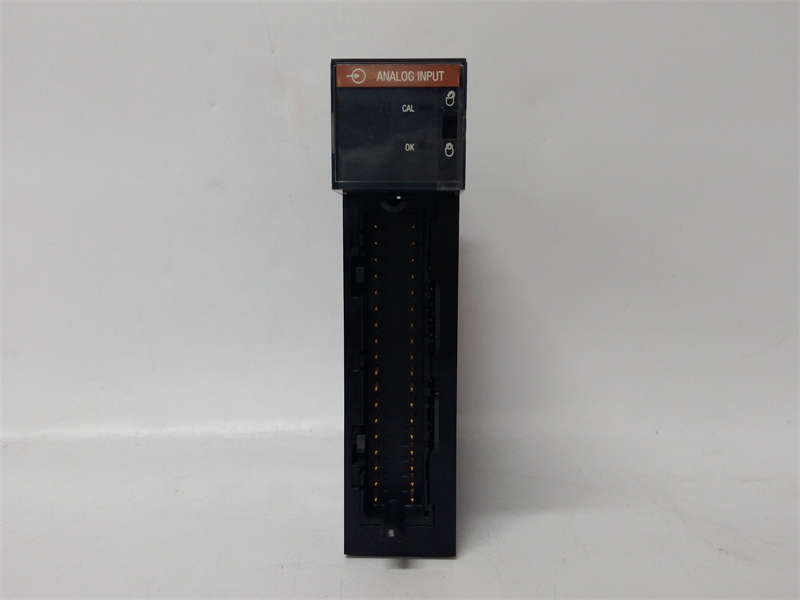

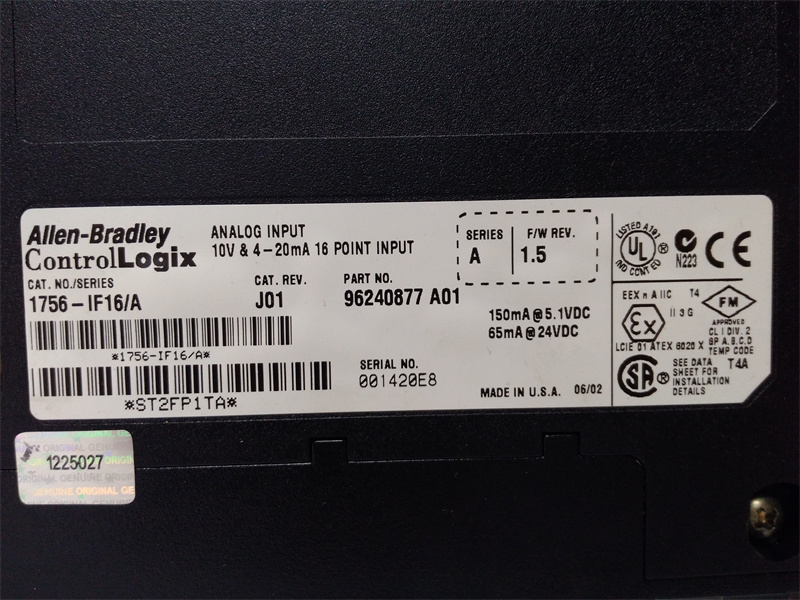

　　The 1756-IF16 Allen-Bradley is a ControlLogix analog input module.

　　1756-IF16

　　Allen-Bradley Product Description:This module accepts current and voltage signals such as±10V,0-10V,0-5V,and 0-20mA.

　　The module supports three types of signal wiring configurations,such as single-ended,differential,and high-speed differential wiring.Of the supported wiring configurations,single-ended wiring is the most noise sensitive and must be used with signals that have a common ground.To increase noise sensitivity,differential wiring methods are used,while high-speed differential wiring is used in systems that require fast data updates relative to the input signal.

　　1756-IF16

　　Allen-Bradley Product Function:This module can be used as a four-channel analog input module.

　　1756-IF16

　　Allen-Bradley product features:With high resolution,e.g.,320μV/count(15-bit+signed bipolar)

　　±10.25V input range;160μV/count(16-bit)0-10.25V input range;80μV/count(16-bit)0-5.125V input range;and

　　(16-bit)0-5.125V input range and 0.32μA/count(16-bit)0-20.5 mA.

　　1756-IF16

　　Allen-Bradley Product Application Areas:The modules are widely used in areas where current and voltage signals need to be accepted.
