125840-02

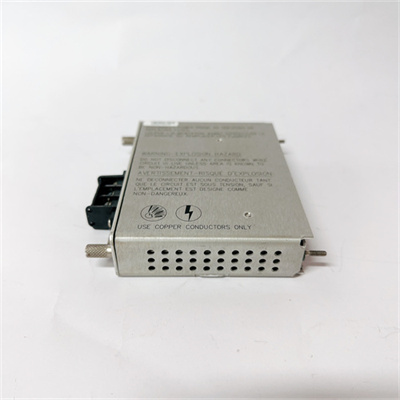

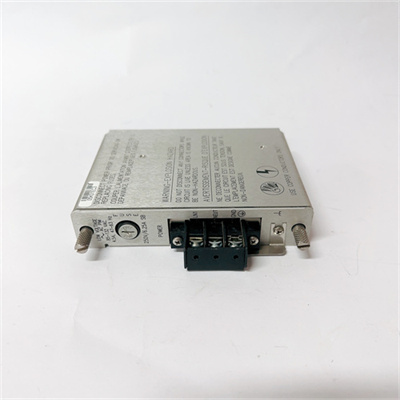

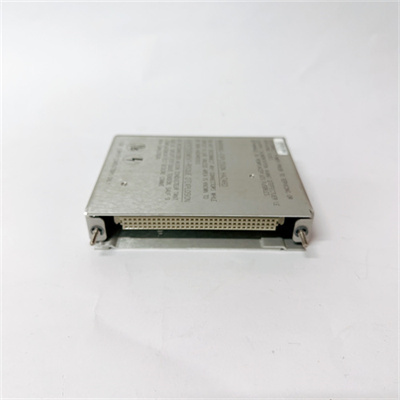

Bently Nevada 125840-02 Low Voltage AC Power Input Module Specifications

Overview

The Bently Nevada 125840-02 is a low voltage AC power input module, designed to provide power to various components within the Bently Nevada 3500 series vibration monitoring and protection system. It acts as a power supply interface, converting the incoming AC voltage to the required DC voltage for the system’s operation.

Key Features

• AC to DC Conversion: Converts incoming AC voltage to DC voltage for powering system components.
• Modularity: Can be easily integrated into the Bently Nevada 3500 system.
• Reliability: Designed for harsh industrial environments and offers high reliability.
• Protection: Includes overcurrent and overvoltage protection features.
• Compatibility: Compatible with other Bently Nevada 3500 series components.

Technical Specifications

• Dimensions: [Specific dimensions in mm or inches, e.g., length, width, height] – Refer to the product datasheet for exact dimensions.
• Weight: Approximately 0.5 kg
• Input Voltage: Typically 85-132 VAC, 47-63 Hz
• Output Voltage and Current: Varies depending on the specific model but typically provides multiple DC outputs for powering different components.
• Mounting: Typically rack-mounted.
• Certifications: Meets various industry standards for safety and EMC.

Functions

• Power Supply: Provides power to the connected system components.
• Voltage Regulation: Maintains a stable output voltage under varying load conditions.
• Overcurrent Protection: Protects the module and connected components from overcurrent conditions.
• Overvoltage Protection: Protects the module and connected components from overvoltage conditions.

Applications

• Vibration Monitoring: Used in vibration monitoring systems to power various sensors, transducers, and control modules.
• Protection: Part of protection systems to provide power to the protection logic and actuators.
• Data Acquisition: Used to power data acquisition modules.

Additional Information

• Manufacturer: Bently Nevada (now part of Baker Hughes)
• Series: Bently Nevada 3500 series
• Warranty: Typically 12 months (depending on the distributor)

For more detailed information, please refer to the official product datasheet.

Please note that specific specifications may vary depending on the exact configuration and options selected.
