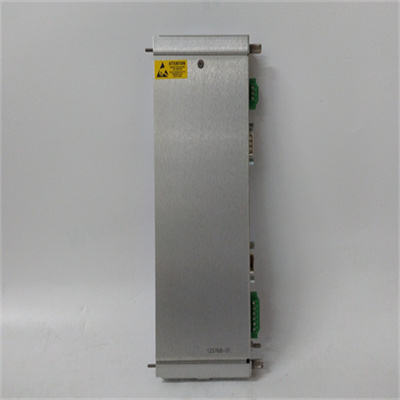

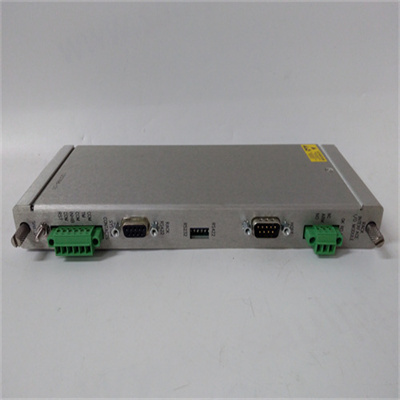

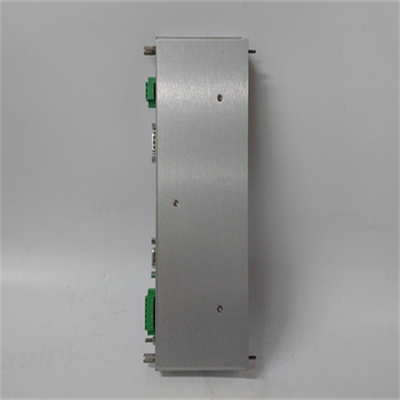

Bently Nevada 125768-01 Remote Interface Module (RIM) Specifications

Overview

The Bently Nevada 125768-01 is a Remote Interface Module (RIM) designed to interface with various sensors and transducers in vibration monitoring and protection systems. It is a key component in the Bently Nevada 3500 series.

Key Features

• RS232/RS422 Interface: Provides serial communication for connecting to a variety of sensors and transducers.
• Modularity: Can be easily integrated into the Bently Nevada 3500 system.
• Reliability: Designed for harsh industrial environments and offers high reliability.
• Compatibility: Compatible with other Bently Nevada 3500 series components.

Technical Specifications

• Dimensions: Approximately 2.5 x 11.2 x 24.2 cm
• Weight: Approximately 0.5 kg
• Number of Ports: Depends on the specific configuration, but typically includes multiple RS232/RS422 ports.
• Power Requirements: Powered by the main system.
• Operating Temperature: Designed for industrial environments, can withstand a wide temperature range.
• Mounting: Typically rack-mounted.
• Certifications: Meets various industry standards for safety and EMC.

Functions

• Signal Acquisition: Acquires analog and digital signals from connected sensors and transducers.
• Signal Conditioning: Conditions signals for processing by the control system.
• Communication: Communicates with the main control system via the RS232/RS422 interface.
• Isolation: Provides electrical isolation between the module and other system components.

Applications

• Vibration Monitoring: Used in vibration monitoring systems to collect data from accelerometers and other vibration sensors.
• Protection: Part of protection systems to detect abnormal vibration conditions and initiate protective actions.
• Data Acquisition: Used to gather data for analysis and condition monitoring.

Additional Information

• Manufacturer: Bently Nevada (now part of Baker Hughes)
• Series: Bently Nevada 3500 series
• Warranty: Typically 12 months (depending on the distributor)

For more detailed information, please refer to the official product datasheet.

Please note that specific specifications may vary depending on the exact configuration and options selected.
