Extend Your Fieldbus: ABB TK811V050 Plastic Optical Fiber Cable for Noisy Plants

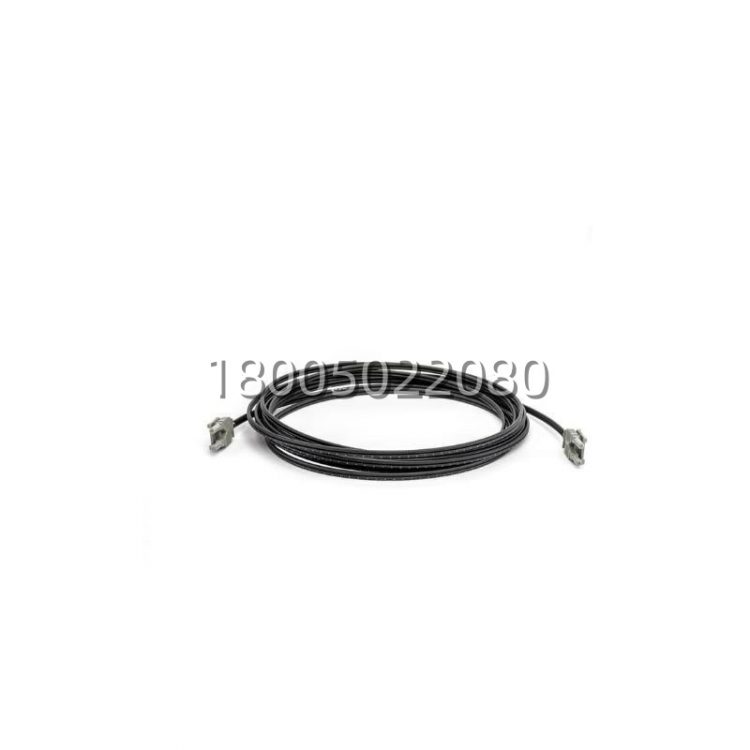

Description The ABB TK811V050 (Order Number: 3BSC950107R2) is a pre-assembled, high-quality 5-meter duplex Plastic Optical Fiber (POF) cable specifically designed for ABB’s S800 distributed I/O systems and AC 800M controllers. This cable utilizes durable plastic fiber optics to transmit data via light pulses, providing complete galvanic isolation and immunity to electromagnetic interference (EMI), radio frequency interference (RFI), and ground potential differences. In harsh industrial environments where…

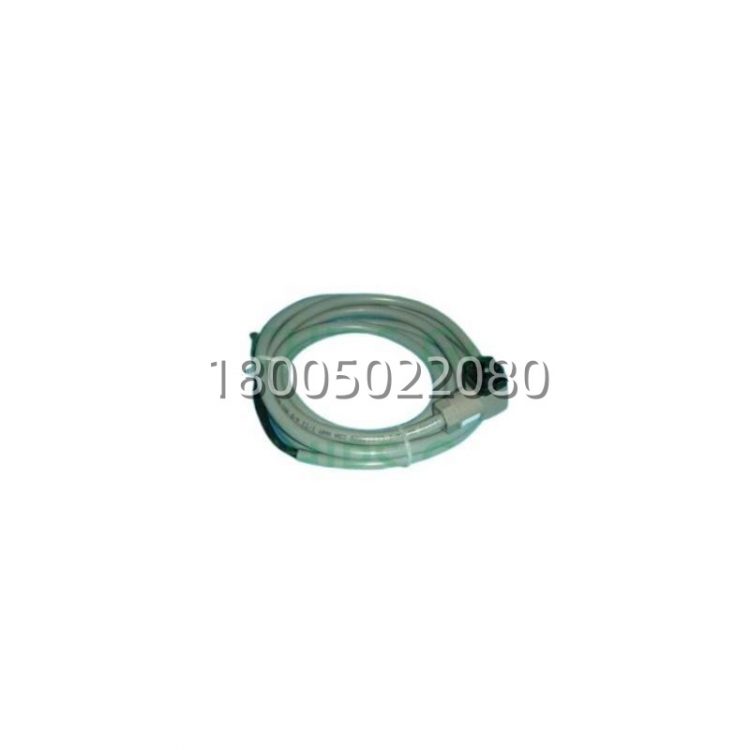

ABB TK807F: Essential Spare for Reliable S800 I/O Station Power Distribution

Description The ABB TK807F is a specialized Supply Cable engineered for the ABB Freelance DCS ecosystem, serving as the critical power link between 24 VDC Power Supply Units (e.g., SA801F, SD802F) and the S800 I/O Station backplanes. Designed with high-quality conductors and robust electromagnetic shielding, the TK807F ensures stable, noise-free power delivery to sensitive I/O modules and communication processors in harsh industrial environments. Its pre-molded, keyed connectors guarantee…

ABB TK802F – Official Power Supply Cable for SD802F & SD812F Modules

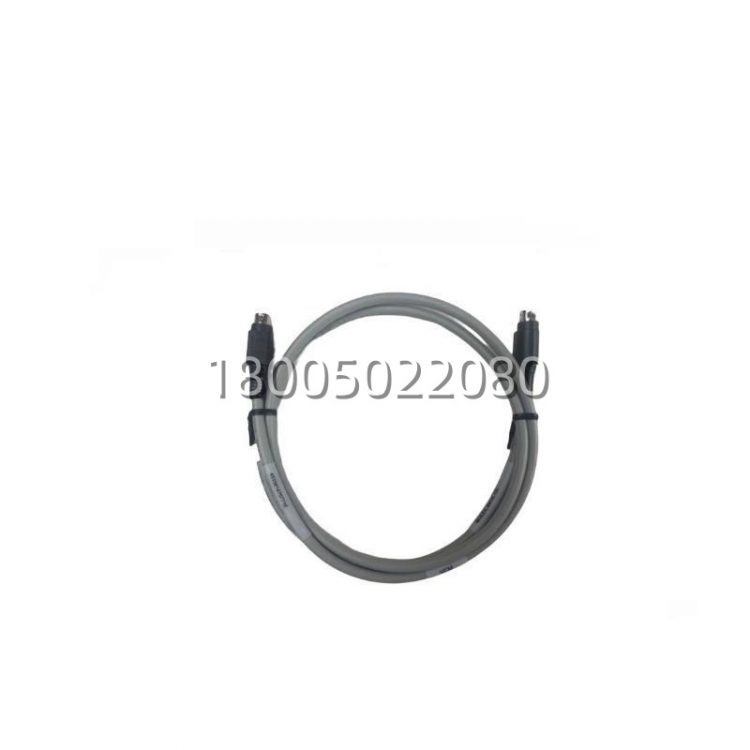

Description The ABB TK802F is a specialized Power Supply Cable engineered specifically for use with ABB SD802F (5A) and SD812F (10A) power supply units within the AC 800F (Freelance) Distributed Control System. This pre-assembled cable harness provides a secure, low-resistance electrical path to deliver stable 24V DC power from the source terminal block to the power supply module inputs. Designed for high reliability, the TK802F features robust connectors that…

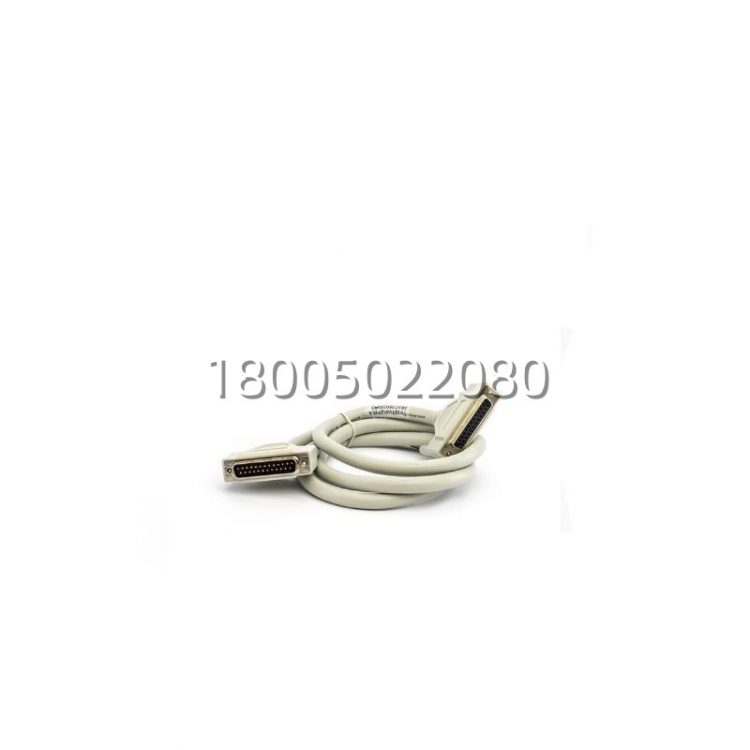

Clarification: ABB TK801V012 (3BSC950089R3): The Genuine 12m Modulebus Shielded Extension Cable for AC 800M

Description The ABB TK801V012 (Order No: 3BSC950089R3) is a specialized 12-meter Modulebus Extension Shielded Cable designed exclusively for the ABB AC 800M control system and its associated S800 I/O platform. This high-quality cable serves as the vital physical link that extends the Modulebus communication protocol (based on robust RS-485 technology) from the controller’s communication interface (e.g., CI854. CI867. or integrated ports on PM86x) to remote…

TK801V006 by ABB: Fast Installation & Maintenance for S800 I/O Racks

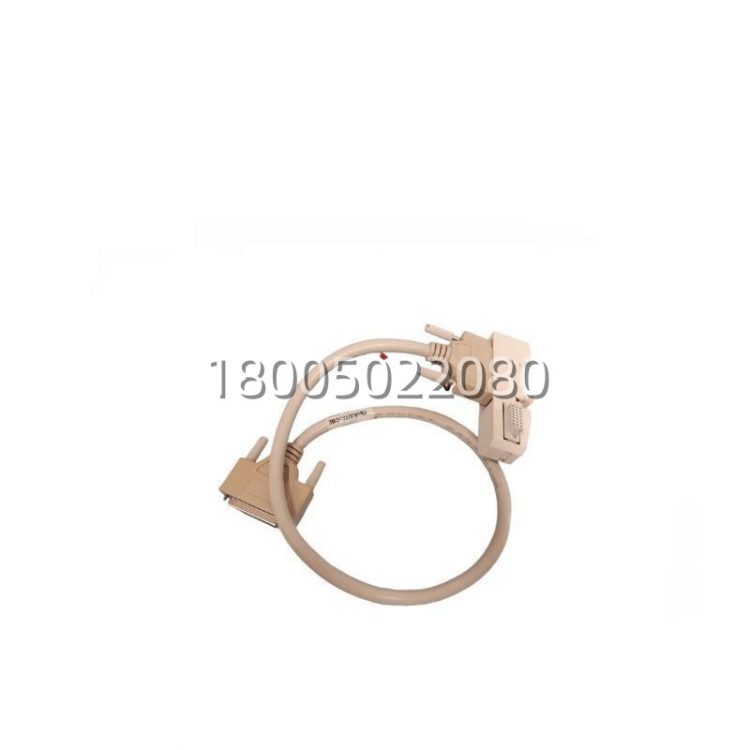

Description The ABB TK801V006 is a specialized Module Bus Connection Cable designed exclusively for the ABB S800 I/O system. This 0.6-meter long, pre-assembled flat ribbon cable serves as the critical link between an S800 I/O Module (e.g., DI801. DO801. AI801) and its corresponding Terminal Unit (TU8xx) (e.g., TU810. TU811. TU830). In the S800 architecture, the I/O module plugs into the backplane of the terminal unit,…

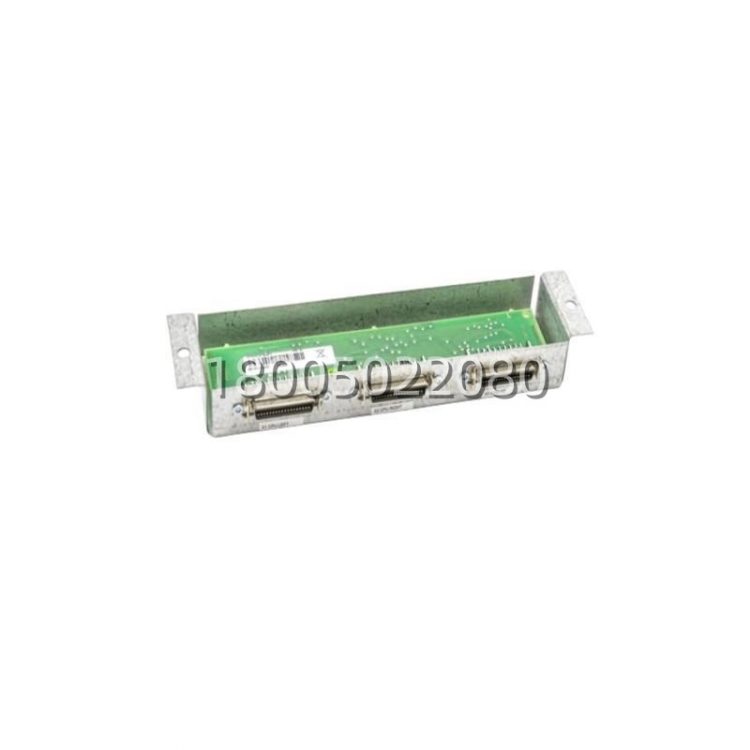

Secure Your Plant Uptime: Authentic ABB TK566 Interconnector Assembly

Description The ABB TK566 (Order Code: 3BSE012153R1) is a specialized Interconnector Kit designed specifically for the ABB S800 I/O system, widely used in conjunction with AC 800M and other ABB controllers. This kit serves as a critical physical link, enabling the daisy-chain connection of multiple S800 I/O modules within a rack or between adjacent racks without the need for complex external wiring for the…

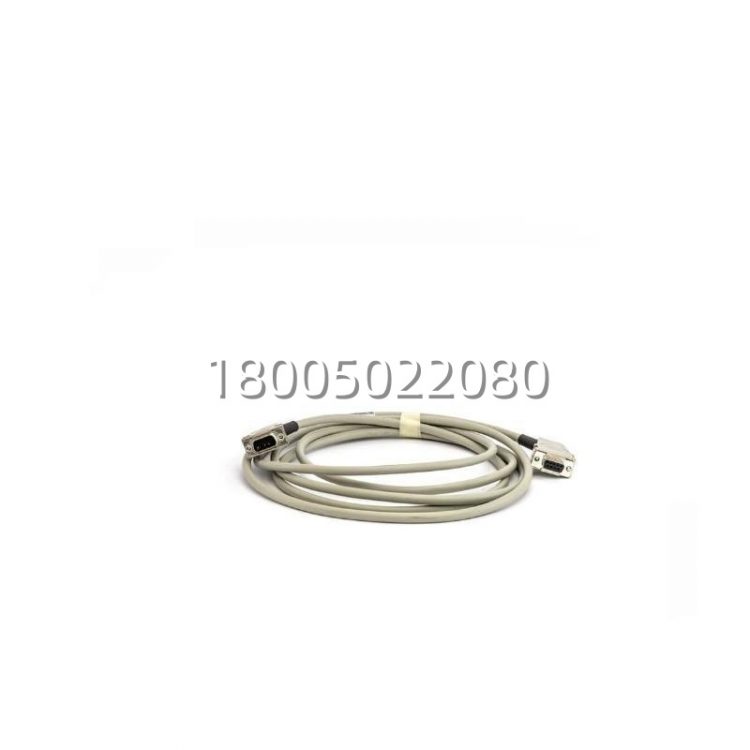

ABB TK527V030 Interface Cable – Genuine S800 I/O Field Wiring Solution

Description The ABB TK527V030 is a high-quality, shielded Interface Cable engineered specifically for the ABB S800 I/O system. It provides the physical connection between the S800 Termination Units (TU) mounted on DIN rails inside the control cabinet and the external field instruments located in the plant. The TK527V030 is designed with robust shielding (typically foil and braid) to protect low-level analog signals and high-speed digital…

Critical Tooling: ABB TK212A for Direct Access to AC 800M Controllers via Control Builder

Description The ABB TK212A (Order No. 3BSC630197R1) is a specialized tool cable designed explicitly for engineering, commissioning, and maintenance tasks on ABB AC 800M controllers and S800 I/O systems. Featuring standard RJ45 8P8C plugs on both ends, the TK212A serves as the physical bridge between an engineer’s laptop (running configuration software like Control Builder M) and the service port of the ABB controller. Unlike…

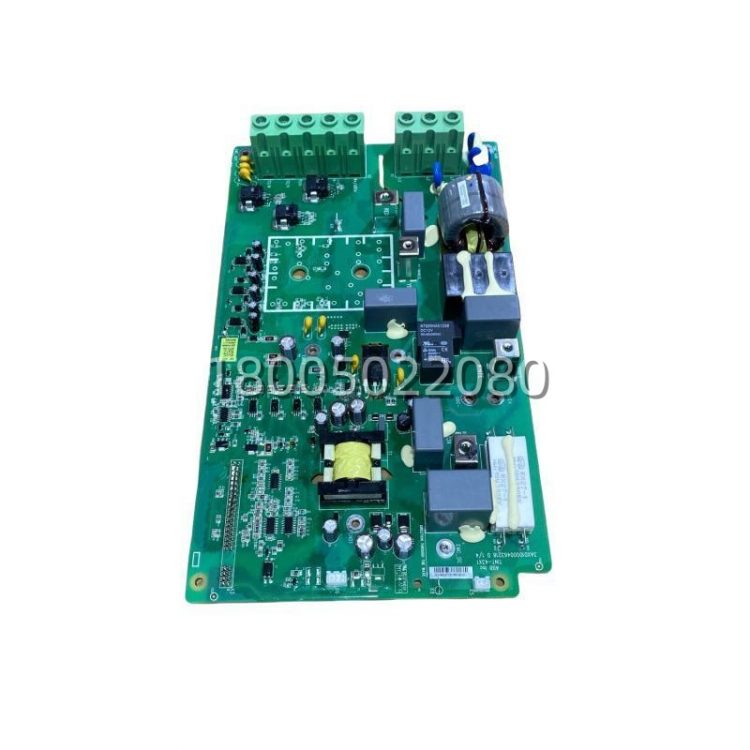

ABB TINT-6511: Critical Spare for Continuous Operation in Pulp, Paper, and Utility Sectors

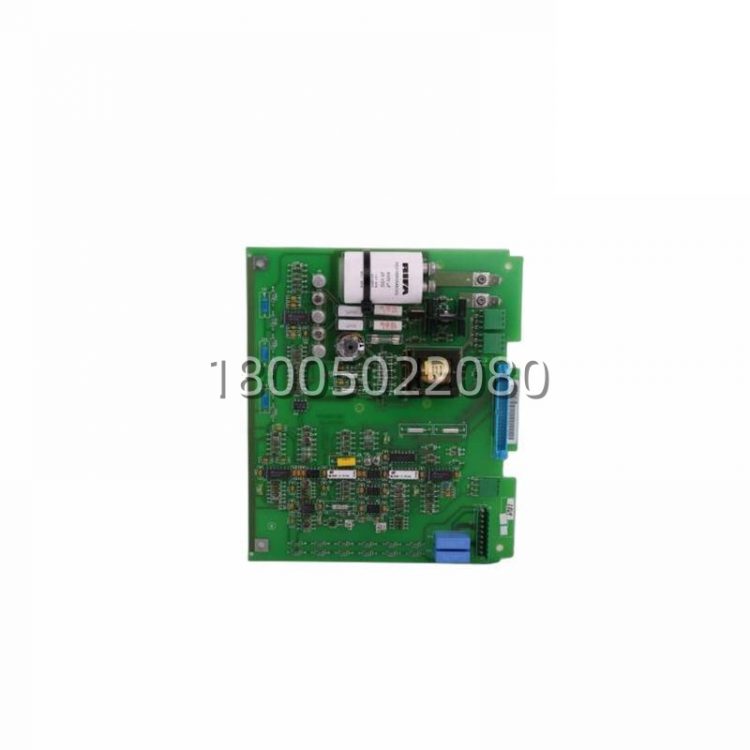

Description The TINT-6511 is a specialized Interface Circuit Board manufactured by ABB, historically utilized within high-power ACS800 and potentially ACS600 series variable frequency drives (VFDs). While specific public documentation is scarce due to its nature as an internal component, the naming convention (“INT” for Interface, “T” often implying Thyristor, Trigger, or Terminal functions) suggests it serves as a critical link between the drive’s…

Keep Your Drive Running: ABB THB1724BG Replacement Fan (172mm Square)

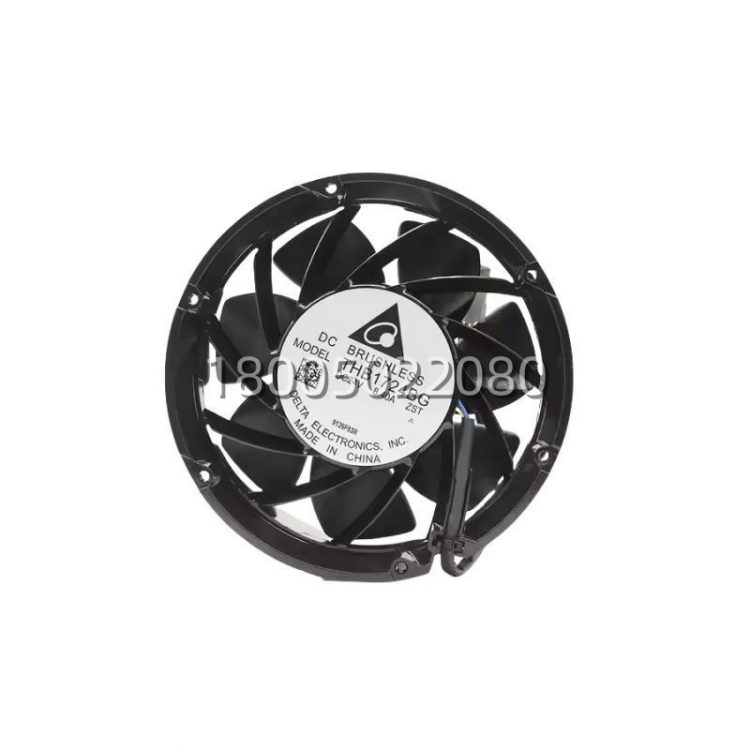

Description The ABB THB1724BG (often referenced with revision codes like R9 or part numbers linked to 17251) is a high-performance DC 24V cooling fan specifically engineered for ABB industrial inverters, most notably the ACS580. ACS880. and legacy ACS800 series. With dimensions of approximately 172mm x 172mm x 51mm (often referred to as 17cm square), this fan provides the critical airflow required to dissipate heat from power modules (IGBTs) and DC…
