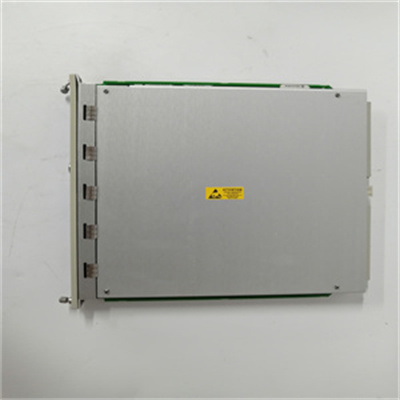

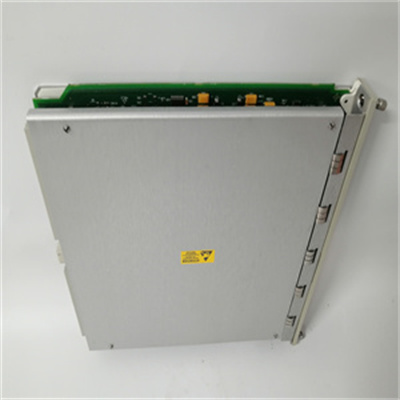

BENTLY 3500 22M-01-01-01 is a high-performance condition monitoring module launched by Bently Nevada.It belongs to the 3500 series and is widely used in vibration monitoring and protection of rotating machinery(such as turbines,compressors,generators,etc.).The following is a detailed analysis of this model:

1.Product Overview

Brand and Series:Bently Nevada,3500 Series

Type:Condition Monitoring Module(Vibration Monitoring and Protection)

Positioning:Protection and Condition Monitoring of Key Rotating Machinery

2.Model Analysis

According to the naming rules of Bently Nevada,model 3500 22M-01-01-01 can be decomposed as follows:

Part Meaning

3500 Product series code,indicating the 3500 series monitoring system.

22M Module type code,22M indicates radial vibration monitoring module(Transducer Supply and Keyphasor Module).

01 Version or configuration code,please refer to the product manual for its specific meaning(may indicate hardware version or specific feature set).

01 Channel configuration code,may indicate the number or type of channels supported by the module(such as 1 channel).

01 Output or function extension code,may indicate a specific output type or additional function(such as alarm output).

III.Technical parameters and functions

Monitoring capabilities:

Vibration measurement:supports radial vibration monitoring and provides displacement,velocity and acceleration signals.

Keyphasor measurement:integrated keyphasor function for phase reference and speed measurement.

Sensor interface:supports eddy current probes and velocity sensors.

Signal processing:

Alarm and danger settings:programmable alarm and danger thresholds,supporting multiple alarm levels.

Signal conditioning:built-in signal conditioning circuit,providing anti-aliasing filtering and gain adjustment.

Data output:supports analog output(4-20mA)and digital output(relay contacts).

Communication and integration:

3500 rack:modular design,can be inserted into the 3500 series rack,supports hot swapping.

System communication:communicate with other modules(such as power module,display module)through the 3500 frame bus.

External interface:supports Modbus,HART and other protocols,and can be integrated with DCS/PLC system.

Environmental adaptability:

Operating temperature:-20°C to+70°C(standard),optional wide temperature range.

Protection level:IP20(standard),optional IP54/IP65.

Electromagnetic compatibility:complies with IEC 61000 standard,suitable for industrial environment.

IV.Application scenarios

Power industry:

Vibration monitoring and protection of key equipment such as steam turbines,generators,and water turbines.

Petrochemical:

Condition monitoring and fault diagnosis of rotating machinery such as compressors,pumps,and fans.

Steel and metallurgy:

Vibration protection and performance optimization of equipment such as blast furnace fans and rolling mills.

Other fields:

Aerospace,shipbuilding,rail transportation and other occasions that require high reliability monitoring.
