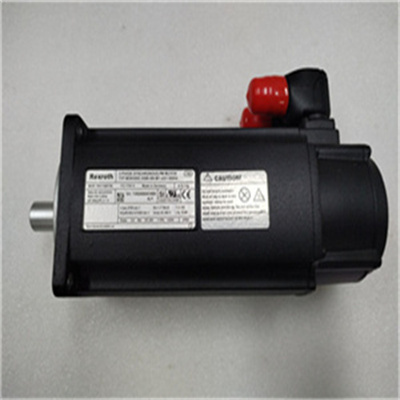

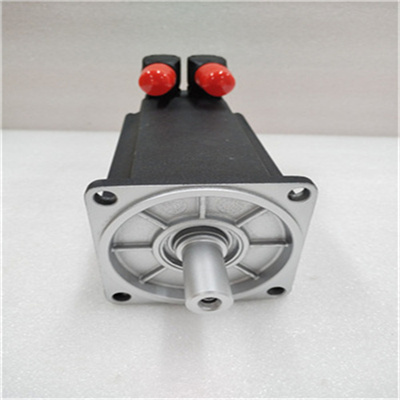

MSK101D-0200-NN-M1-AG2-NNNN is a high-performance servo drive produced by SEW-EURODRIVE in Germany,belonging to the MOVITRAC®MSK series.This series of products is widely used in industrial automation,robotics,CNC machine tools and other fields,and is known for its high precision,high reliability and flexibility.The following is a detailed analysis of this model:

1.Product Overview

Brand and Series:SEW-EURODRIVE,MOVITRAC®MSK Series

Type:Servo Drive

Positioning:Medium and high precision motion control applications

2.Model Analysis

According to SEW’s naming rules,the model MSK101D-0200-NN-M1-AG2-NNNN can be decomposed as follows:

Part Meaning

MSK101D product series code,indicating the MOVITRAC®MSK series,101 is the specific model identification,and D represents the digital interface.

0200 Power specification,usually indicating the rated current or power level(here it may be 200A or equivalent power).

NN Power supply voltage specification,NN may indicate standard three-phase 380-480V power supply(please refer to the manual for specific confirmation).

M1 Interface type,M1 indicates basic interface configuration,which may include pulse input/output,analog interface,etc.

AG2 Encoder type,AG2 may indicate support for specific types of incremental or absolute encoders.

NNNN Custom options or special functions,NNNN is a placeholder,which may actually include extensions such as safety functions and communication protocols.

III.Technical parameters and functions

Drive performance:

Power range:Depending on the model,it supports motor drives from tens of watts to several kilowatts.

Control mode:supports position control,speed control and torque control.

Dynamic response:high acceleration/deceleration capability,suitable for fast positioning and high-speed movement.

Interface and communication:

Digital interface:supports pulse input/output,digital I/O,for connecting PLC,sensors,etc.

Analog interface:supports voltage/current input/output,for speed or torque setting.

Communication protocol:Supports industrial bus protocols such as CANopen,EtherCAT,PROFINET,etc.

Encoder support:

Type:Compatible with incremental and absolute encoders with a resolution of up to 20 bits.

Feedback accuracy:Provides high-precision position feedback to ensure the accuracy of motion control.

Safety function:

STO(Safe Torque Off):Safe torque off function,in line with SIL 3/PLe standards.

SS1(Safe Stop 1):Safe stop function to ensure safe braking in emergency situations.

Environmental adaptability:

Protection level:IP20(standard),optional IP54/IP65.

Operating temperature:-10°C to+50°C(standard),optional wide temperature range.

IV.Application scenarios

Industrial automation:

Packaging machinery,printing machinery,textile machinery and other equipment that require high-precision motion control.

Robotics:

Industrial robot joint drive,providing precise position and speed control.

CNC machine tools:

Spindle drive and feed axis drive to achieve high-precision processing.

Other fields:

Semiconductor manufacturing,medical equipment,logistics automation,etc.
