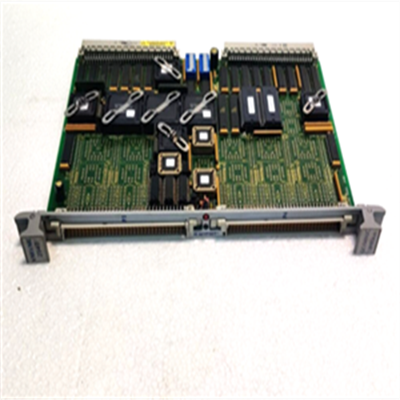

GE VMIVME-2540 is a high-performance,multi-function intelligent counter/controller launched by General Electric(GE),designed to meet the needs of various applications in the field of industrial automation.The following is a detailed introduction of the product:

1.Product Overview

Model:VMIVME-2540

Manufacturer:General Electric(GE),later acquired and continued to be supported by Abaco Systems.

Type:VME bus intelligent counter/controller with digital signal measurement and generation capabilities.

Application areas:rotating axis instruments,automotive testing,medical equipment,robots,telescope control,elevators,bridge cranes,etc.

2.Main functions

Measurement functions:

Event counting:up to 4 Giga events.

Frequency measurement:range from 1.16×10⁻³Hz to 2.5 MHz.

Period/Pulse Width Measurement:400 ns to 8.5899×10⁶s(32-bit floating point),or 400 ns to 858 s(32-bit unsigned integer).

Quadrature Position Measurement:Sine/Cosine up to 1 MHz,32-bit counter,limit/modulo checking.

Generation Capabilities:

Pulse Train/Square Wave Generation:Frequency range 0.0076 Hz to 2.5 MHz.

Timer/Periodic Interrupt Generation:0.0076 to 1,000 Hz.

Frequency Division:Multiple frequency division modes supported.

Quadrature Position Control:±1/4 wave control resolution,up to 1.25 MHz step rate.

Other Features:

Programmable Outputs:Up to 24 discrete outputs.

Event Triggered Timer Delay:Interrupts up to 131.1 seconds after event edge input.

Continuous measurement mode:Compatible with ANSI/IEEE 1014-1987 standard.

3.Technical Specifications

Interfaces:

24 control/measurement interfaces:24 clocks,24 gates,24 outputs.

RS-422 differential interface,supports single-ended TTL inputs.

Options allow configuration of 4,8,16,and 24 interfaces.

Processor:

Onboard 15 MHz 68HC000 CPU.

Memory:

A32/A24/D32/D16/D8(EO)VME slave interface,64 Kbyte VMEbus memory window.

Data Exchange:

Supports ANSI/IEEE Standard 754-1985 for 32-bit floating-point operations.

4.Advantages and Features

High Precision:Provides high-precision digital measurement and generation capabilities,suitable for industrial applications with high precision requirements.

Flexibility:supports a variety of measurement and generation functions,and users can flexibly configure according to their needs.

Scalability:through the VME bus interface,it can be easily integrated with other industrial equipment.

Reliability:designed for industrial environments,with high reliability and stability.

5.Application scenarios

Rotary axis instrument:used for angular position,speed,acceleration measurement.

Automotive industry testing:used for brake,gearbox,tachometer testing.

Medical equipment:used for medical/laboratory instrument control and measurement.

Robotics:used for robot position control and motion control.

Telescope/Observatory:used for astronomical observation equipment control and measurement.

Linear position measurement:used for distance,speed,acceleration measurement.
