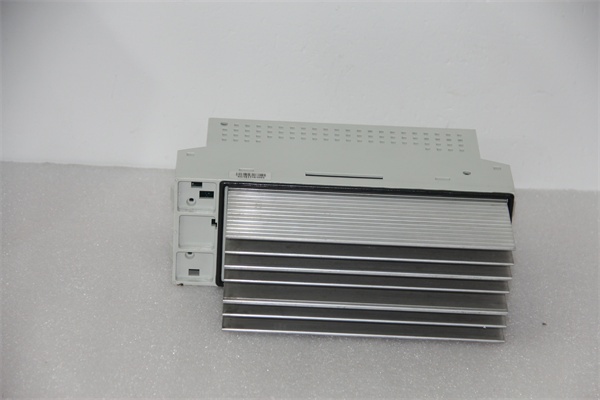

ABB DSQC346G is an industrial robot controller.Here is a detailed introduction to it:
1.Main features
Power supply voltage and current:usually 24V DC,the best current is 2.5A.But there are also data indicating that its working voltage is AC220V.
Working temperature and storage temperature:
Working temperature range:0~50℃(there are also data indicating that its working environment temperature is-20~45℃).
Storage temperature range:-40~85℃.
Dimensions:Common dimensions are 100mm x 50mm x 30mm,but there are also data indicating that its dimensions are 76mm high,152mm wide,and 250mm thick(this may vary depending on the specific model or application scenario).
Control accuracy and algorithm:Using advanced control algorithms,high-precision robot motion control can be achieved.
Communication protocol:Supports multiple communication protocols,such as CAN,Ethernet,etc.,which is convenient for data exchange and collaborative work with other devices.
Protection function:Multiple protection functions are built-in,such as overheat protection,overload protection,etc.,to ensure safe and stable operation of the equipment.
2.Function description
Braking and overload handling:
When the average power or peak power of the energy fed back from the motor exceeds the preset level of the braking rated power,the servo amplifier generates a warning and turns off the braking circuit.
At the next internal check of the DC bus link voltage,if overvoltage is detected,the output stage is turned off and an error message is displayed.
DC bus link coupling:
Several servo amplifiers(DC+,DC-)coupled via a DC bus link can use the built-in braking circuit.
Multiple amplifiers(even with different rated currents)can be operated via a common DC bus link without any additional measures.
Input phase loss response:
The servo amplifier uses an integrated circuit to detect whether one or more input phases(power feed)fail.
The behavior of the servo amplifier,such as issuing a warning or stopping the drive,can be set by setting the software.
Undervoltage and overvoltage handling:
If the undervoltage threshold in the DC bus link is insufficient(the threshold depends on the type of servo amplifier),an error message is displayed.
The drive response depends on the relevant settings.
Emergency stop and safety functions:
The emergency stop function is used to shut down a machine in a dangerous situation as quickly as possible.
The safety function STO(Safe Torque Off)is specifically used to provide functional safety by preventing the system from restarting.
III.Application fields
DSQC346G is widely used in industrial robots,automated production lines and other fields.Its high-precision control capabilities and multiple protection functions make it an important part of the industrial automation field.
Choose Shenzhen Changxin, choose with confidence, worry-free after-sales service Large quantities of stock, shipped by SF Express on the same day!!!
The company mainly imports PLC modules, programmable controllers, servo control systems and DCS spare parts, such as: ABB, AB (Rockwell), GE (General Electric), Bentley, Honeywell, Emerson, Motorola, Invensys, Westinghouse, etc. The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers, and can directly purchase from abroad, providing equipment and spare parts from different countries and manufacturers.
We supply directly from abroad, without middlemen, reducing the cost of use.
There is really no middleman who can make a price difference! !
If you have any defects or need to import PLC, DCS spare parts, please contact our team, we will help you find reliable and high-quality products super quickly, while shortening the delivery time to ensure that your equipment can operate normally in the right environment. On time.
Professionally provide: PLC programmable control system, distributed control system (DCS), safety instrument system (SIS), ESD system, vibration monitoring system, turbine compressor control system (CCS) and other PLC modules, various industrial control systems, system modules, CPU, IO module, DO module, AI module, DI module, network communication module, Ethernet module, motion controller, analog input module, analog output module, switch input module, switch output module, module redundancy, power supply module, relay output unit, relay input unit, processing unit.
Products are widely used in: electricity, petroleum, mine hoisting, ports, heating, gas, water supply, sewage treatment, metallurgy, papermaking, textile, chemical industry, water conservancy and other modern industrial fields!
