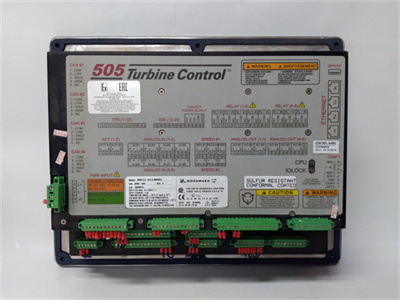

WOODWARD 8200-1302 is a high-performance digital speed governor.The following is a detailed introduction to the product:

1.Product Overview

Model:8200-1302

Purpose:Used to control steam turbines,it is a model in the Woodward 505 digital speed governor series.

2.Technical Features

Integrated graphic front panel HMI:Provides an intuitive operating interface that allows operators to adjust and communicate with the turbine.

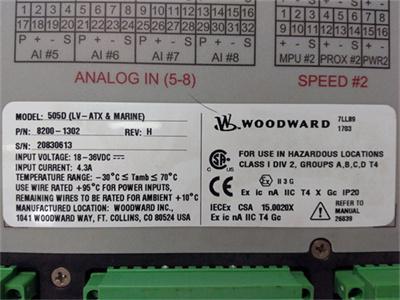

Multiple power supply options:With Marine/ATEX compliant LVDC(18-32Vdc)power supply,it can adapt to different application requirements.

High-precision control:Supports closed-loop position control and uses high-resolution feedback mechanisms to ensure high-precision motion positioning.

Multiple input/output options:

Analog inputs(8),which can be configured as any of a variety of functions.

10 external alarm inputs and DI trip inputs each.

Two 4-20mA control outputs and eight C-type relay contact outputs.

Redundant speed input:Accepts magnetic pickup units,eddy current probes or proximity probes to improve system reliability and accuracy.

Multiple operating modes:Provides three normal operating modes of configuration,operation and calibration to meet the needs of different application scenarios.

III.Functional characteristics

Automatic start sequencing:Supports automatic start sequence for hot start and cold start,with temperature input option.

Critical speed avoidance:With critical speed avoidance function on three-speed band,it protects the turbine from damage.

Trip and alarm function:Provides trip indication of trip and alarm events and related RTC timestamps for easy troubleshooting and recording.

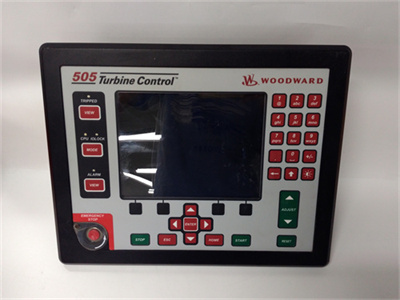

Front panel design:Includes emergency trip key,backspace/delete key,shift key,as well as view,mode,ESC and home keys,etc.,for easy operation.

IV.Application field

WOODWARD 8200-1302 is widely used in power generation,oil and gas and industrial automation,etc.,to adjust the position of servo valves,actuators or other mechanical components for precision control.

V.Product advantages

High performance:Adopts advanced control algorithms and hardware design to achieve high-precision and high-reliability control.

Easy to operate:integrated graphic front panel HMI and intuitive operation interface to reduce the difficulty of operation.

Flexible configuration:supports multiple input/output options and redundant speed input to meet the needs of different application scenarios.

Complete protection:provides functions such as automatic start sequencing,critical speed avoidance and trip alarm to protect the turbine from damage.

In summary,WOODWARD 8200-1302 is a high-performance,easy-to-operate,flexible configuration and complete protection digital speed regulator suitable for precision control applications in various industrial and energy fields.
