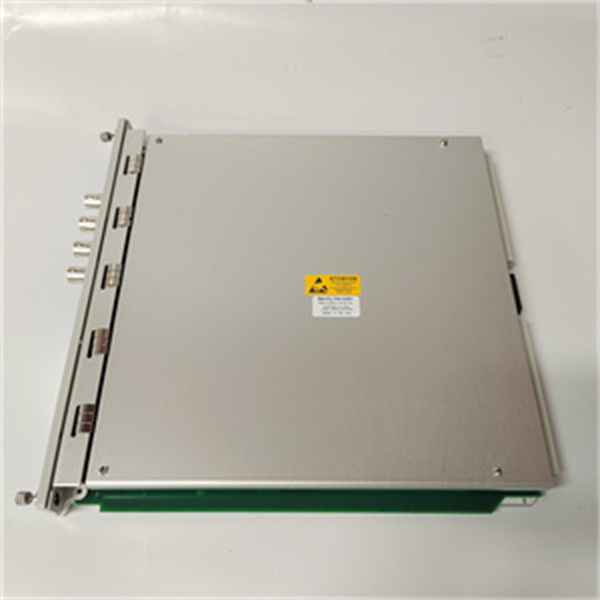

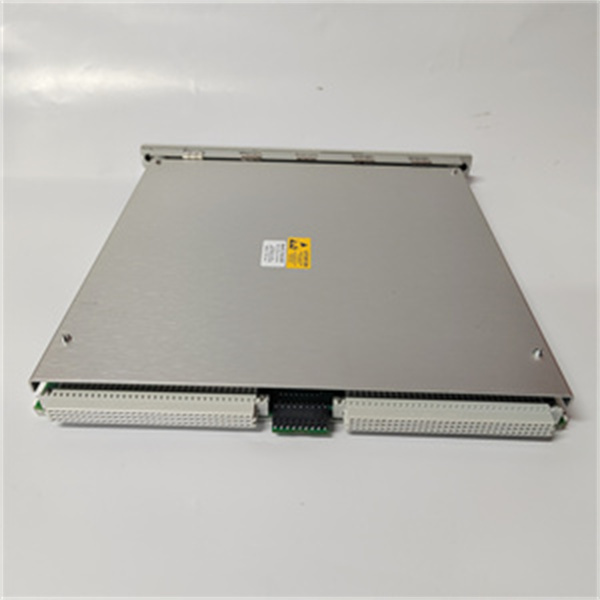

Bently Nevada 3500/42M 176449-02 Vibration Monitoring Module

Product Overview

Bently Nevada 3500/42M 176449-02 is a high-performance vibration monitoring module,which belongs to the Bently Nevada 3500 series mechanical condition monitoring system.It is mainly used to measure and monitor the vibration signals of rotating machinery,and is suitable for health monitoring and fault diagnosis of industrial equipment.

Main functions

Multi-channel vibration monitoring

Provides 4 independent monitoring channels,which can simultaneously measure multiple vibration parameters,such as radial vibration,axial displacement,eccentricity,etc.

High-precision measurement

Supports a variety of input signal types,including eddy current sensors,velocity sensors and accelerometers.

Provides high-precision signal processing capabilities to ensure data accuracy and reliability.

Signal conditioning and processing

Built-in signal conditioning functions,support filtering,integration and other processing,and can extract key information from complex signals.

Supports differential signal processing,which can extract housing vibration signals from shaft relative vibration.

Automatic calibration function

Equipped with automatic calibration function to ensure measurement accuracy and reliability.

Support standard calibration procedures to facilitate users to perform regular maintenance and calibration.

High-speed data transmission

Support high-speed data transmission to ensure that monitoring data can be transmitted to the host computer or monitoring system in real time.

Technical specifications

Input signal type:eddy current sensor,velocity sensor,acceleration sensor.

Input range:4-20 mA,0-10 V,±10 V.

Measurement accuracy:±0.5%.

Sampling rate:up to 10 kHz.

Output signal:4-20 mA,RS-485.

Operating temperature range:-40℃to+85℃.

Protection level:IP66.

Dimensions:in line with the standard module size of the 3500 series.

Weight:about 0.5 kg.

Application scenarios

Bently Nevada 3500/42M 176449-02 is widely used in the following fields:

Power industry:used for vibration monitoring of steam turbines and generators.

Petrochemical industry:used for vibration monitoring of compressors,pumps and other equipment.

Aerospace:used for vibration monitoring of gas turbines and engines.

Steel and metallurgy:used for vibration monitoring of rolling mills,fans and other equipment.

Papermaking industry:used for vibration monitoring of pulp machines,paper machines and other equipment.
