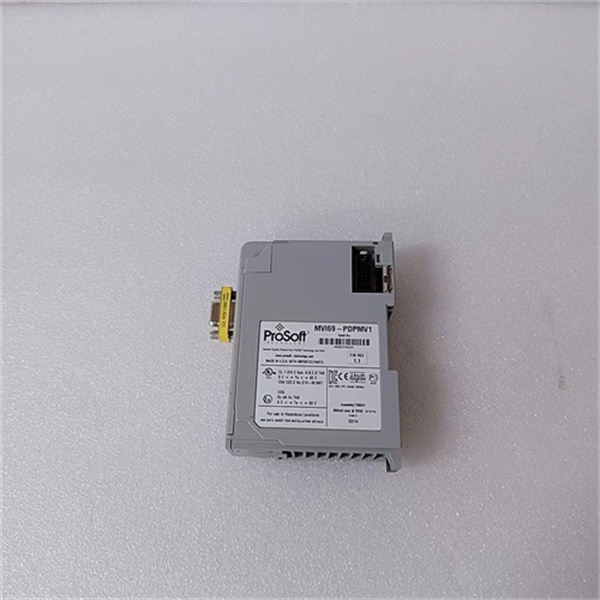

PROSOFT MVI69-PDPMV1 is a powerful master communication module designed by Prosoft Technology,designed for application scenarios that require high-performance,high-reliability communication solutions.The following is a detailed introduction to MVI69-PDPMV1:

I.Product Overview

The MVI69-PDPMV1 module is part of the inRAx sub-brand and has won market recognition for its outstanding performance and flexibility.It supports a variety of communication protocols,including Ethernet/IP,Modbus TCP/IP and DeviceNet,and is able to communicate with a variety of devices and controllers.

II.Main Features

Communication protocol support:

Supports multiple communication protocols such as Ethernet/IP,Modbus TCP/IP,DeviceNet,etc.

Supports full master station specifications in accordance with the IEC 61158 standard,and can transmit non-cyclic parameter data through Class 1 or Class 2 DPV1 services.

PLC compatibility:

Compatible with multiple PLC brands and models,especially Rockwell Automation’s ControlLogix and CompactLogix series controllers.

Supports most MicroLogix 1500 LRP controllers.

Data exchange and mapping:

With data mapping function,data can be quickly mapped and converted between different communication protocols to ensure the correct transmission and interpretation of data.

Ladder logic is used for data transmission between module memory and processor controller tags,and sample ladder files are included to facilitate users to quickly get started.

Configuration and monitoring:

Usually comes with a configuration tool(such as ProSoft Configuration Builder software),which can be used to configure and set parameters of the module to meet the needs of specific applications.

Support real-time monitoring and diagnostic functions to help users quickly detect and solve communication problems and improve system availability.

Physical characteristics and installation:

Using the CFG port as the main interface,equipped with bright LED indicators,clearly displaying information such as module status,power status,application status,terminal and error status.

Works with RJ45 to DB-9 M and 6-foot RS-232 cables to ensure stable and reliable data transmission.

The backplane is rated for 800 mA and a maximum voltage of 5 V DC to meet the needs of various industrial environments.

Single-slot design,compatible with 1769 backplane,can be directly installed on the 1769 CompactLogix controller.

Scalability and diagnostics:

Supports stacking and expansion of modules to connect more devices and communication channels to meet growing needs.

Supports extended diagnostic data(DPV1),providing detailed diagnostic information to help users quickly locate and solve problems.

3.Application scenarios

The MVI69-PDPMV1 module is particularly suitable for application scenarios that require high-performance and high-reliability communication solutions,such as industrial automation,process control,remote monitoring,etc.It can realize data acquisition and control of remote devices,control and decision-making through PLC to achieve automation and process control.

4.Certification and standards

The MVI69-PDPMV1 module is standardized and has passed a number of international certifications and safety standards,such as explosion-proof certificates(ATEX directive),CE,CB safety,Lloyd’s Register,C/UL Class 1,Class 2,etc.These certifications ensure the safe and reliable operation of the module in various industrial environments.

V.Environmental conditions

The MVI69-PDPMV1 module is suitable for the following environmental conditions:

Relative humidity:5%to 95%(non-condensing)

Operating temperature:0°C to 60°C(32°F to 140°F)

Storage temperature:-40°C to 85°C(-40°F to 185°F)
