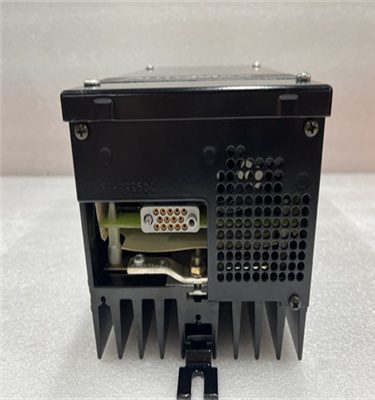

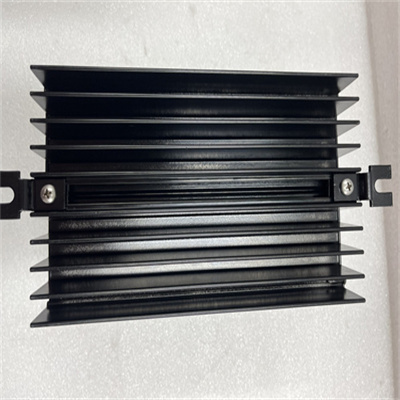

HIMA 805405-1R Single-Phase Field Power Module

The HIMA 805405-1R is a high-performance single-phase field power module designed to provide controlled power to DC motors in industrial automation applications.It is capable of converting AC input power to regulated DC output power and is suitable for a variety of industrial scenarios.

Product Features

Wide Input Voltage Range

Supports AC input voltages from 120 to 460V AC to adapt to different power supply configurations.

High Efficiency

Provides up to 95%conversion efficiency,reducing power consumption and heat generation.

Comprehensive protection functions

Includes overcurrent protection,undervoltage protection,and short-circuit protection to ensure safe operation of the motor and module.

Non-reversing Bridge Design

Adopts a non-reversing(S2)bridge design for applications that do not require commutation.

Adjustable Output Current

Allows fine-tuning of the motor current to meet specific application requirements.

Technical Specifications

Input Voltage:120 to 460V AC,50/60 Hz.

Output Voltage:500V DC.

Output Current:15A.

Control mode:non-reversing(S2)bridge type.

Efficiency:up to 95%.

Dimensions:200 mm×130 mm×80 mm.

Weight:about 2 kg.

Application areas

Industrial automation production line:used to control the speed and direction of conveyor belts.

Material handling equipment:such as cranes,hoists and lifts,used to control the movement of materials.

Machine tools:integrated into machine tools such as milling machines,lathes and drills to control the speed and torque of cutting tools.

Pump and fan control:used to regulate the flow of liquids and gases.
