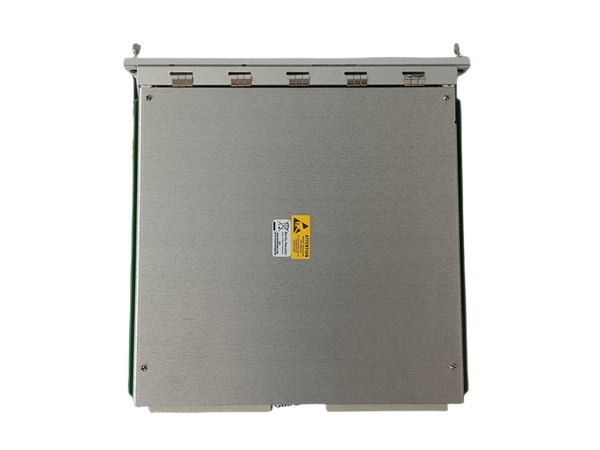

BENTLY 3500 92(also often written as 3500/92)is a communication gateway module produced by Bently Nevada.This product is widely used in industrial automation systems.The following is a detailed introduction to BENTLY 3500 92:

I.Product Overview

As a communication gateway,the BENTLY 3500 92 module has powerful communication capabilities,supports multiple communication protocols and interfaces,and can integrate all rack monitoring values​​and status with process control and other automation systems.

II.Main Features

Extensive communication capabilities:

Supports Ethernet TCP/IP and serial(RS232/RS422/RS485)communication.

Can be integrated with process control and other automation systems.

Supports multiple communication protocols:

Modicon Modbus protocol(via serial communication).

Modbus/TCP protocol(serial Modbus variant for TCP/IP Ethernet communication).

Proprietary Bently Nevada protocol(used to communicate with 3500 rack configuration software and data acquisition software).

Flexible Ethernet connectivity:

Using RJ45 connector,supports 10BASE-T star configuration Ethernet.

Easy configuration and fast data exchange.

Configurable Modbus registry:

Provides a configurable Modbus registry utility that provides the same functionality as the original 3500/90 module.

Communication through Modbus registers increases configuration flexibility.

Designed for industrial environments:

Supports dual power supply slots to improve power supply reliability.

Equipped with NEMA 4X waterproof housing,suitable for use in environmental protection or air purification applications.

System configuration protection:

System configuration is protected by software passwords to prevent unauthorized changes or tampering with the configuration,ensuring system security.

Versatility:

In addition to communication functions,it can also be used with other Bently Nevada monitoring modules.

Provides a comprehensive mechanical protection and condition monitoring solution.

III.Technical specifications

Power consumption:

The typical power consumption of the Modbus RS232/RS422 I/O module is 5.0 watts.

The typical power consumption of Modbus RS485 I/O modules is 5.6 watts.

Data acquisition rate:

The data acquisition rate of all modules in the 3500 rack will not be greater than 1 second,depending on the design of the rack.

Data type:

Data collected from other modules in the rack through the high-speed internal network,including current measurement values​​with timestamps,module status,and current alarm status.The exact data type returned depends on the channel configuration and module type.

IV.Application field

The BENTLY 3500 92 module is suitable for various industrial environments,especially in industrial automation systems that require high-precision and reliable communication.It is often used to monitor and control key equipment to ensure the stability and safety of the production process.
