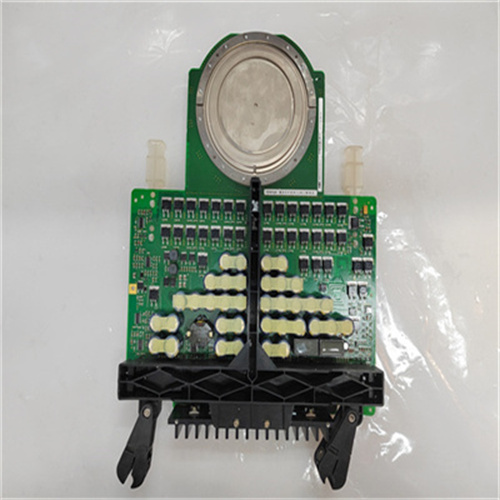

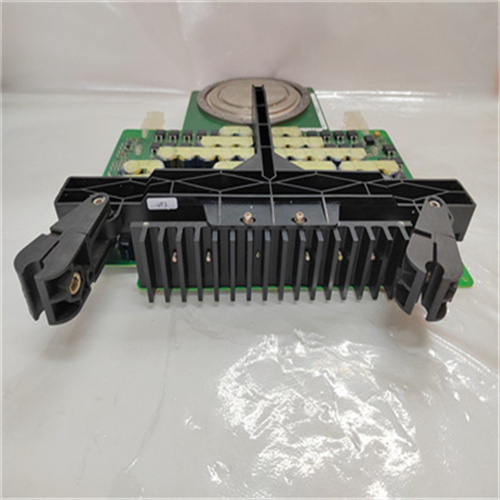

ABB 5SHY3545L0010 is a high-performance power electronic module produced by ABB, which is widely used in industrial automation and power systems. The following are the details of the module:

Product Overview

Model: 5SHY3545L0010

Type: IGCT module (insulated gate bipolar transistor)

Application areas: industrial automation, power transmission, frequency converter, inverter, etc.

Technical specifications

Rated voltage: 3500V.

Rated current: 4500A.

Switching frequency: 20kHz.

Loss: less than 2.5%.

Operating temperature range: -40℃ to +125℃.

Package: TO-247.

Dimensions: 100mm x 150mm x 50mm.

Weight: 2.5kg.

Product Features

High voltage, high current: Able to withstand high voltage and high current, suitable for high voltage and high power applications.

Fast switching: fast switching speed, suitable for high-frequency applications.

Low on-state voltage drop: low on-state voltage drop, low power consumption and high efficiency.

High reliability: using advanced packaging technology, with high reliability and long service life.

Wide temperature range: can work stably in a wide temperature range.

Easy to integrate and install: modular design, easy to install and maintain.

Application areas

Industrial automation: used to control and monitor industrial production processes.

Power system: used for power transmission and distribution systems.

Frequency converter and inverter: suitable for high-voltage and high-power power electronic equipment.
