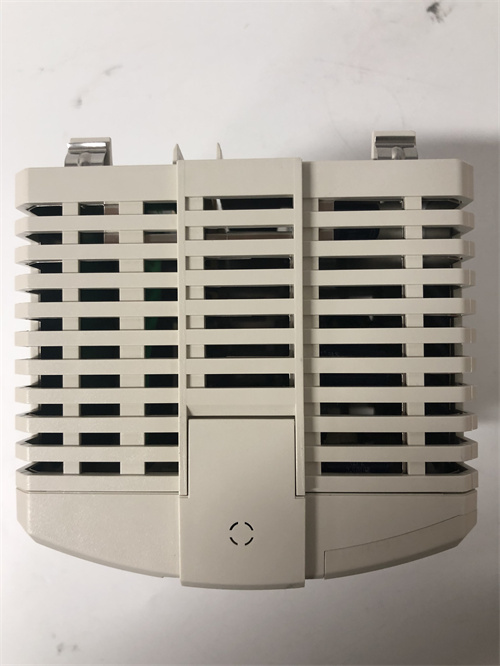

ABB PM864 may refer to a product series of ABB,of which PM864AK01 is a specific model in the series.The following is a detailed introduction to ABB PM864AK01:

1.Product Features

Application flexibility:PM864AK01 can form a variety of optical fiber networks,suitable for different industrial automation scenarios.

Logically independent dual bus electrical interface:It can realize the backup of electrical interface or single device access to dual redundant bus system,which improves the reliability and stability of the system.

Dual optical port redundancy function:Dual optical ports are used to realize dual fiber ring network redundancy function.When a certain optical fiber fails,the system can rebuild the network link within 10ms to ensure the normal communication of the system.

Proprietary ring network protocol:It adopts Ci-ring,a proprietary ring network protocol developed by ABB.It does not require settings or root nodes,and quickly completes the network ring and de-ring functions.

Plug and play:This series of products is plug and play,no configuration is required,which simplifies the user’s installation and debugging process.

2.Performance indicators

Data electrical interface:9-pin Sub_D jack connector,the pin definition complies with the protocol specification of Profibus DP.

Communication rate:supports multiple communication rates,including 9.6kBit/s,19.2kBit/s,45.45kBit/s,93.75kBit/s,187.5kBit/s,500kBit/s,1.5MBit/s,6MBit/s and 12MBit/s.

Signal delay(electrical port):≤11Bit.

Lightning protection and overcurrent protection:4000V lightning protection,1.5A overcurrent protection and 600W surge protection.

Fiber wavelength:multi-mode 850nm,1310nm;single-mode 1310nm,1550nm.

Transmission fiber:multi-mode 50/125um,62.5/125um,100/140um;single-mode 8.3/125um,9/125um,10/125um.

Transmission distance:multi-mode 2Km,single-mode 20Km,longer distance optional.

Fiber interface type:SC,FC,ST optional,SC optical interface standard.

Signal delay(optical port):≤1.6us/node.

3.Application scenarios

ABB PM864AK01 is suitable for various industrial automation systems,especially those that require high reliability and stability,such as petroleum,chemical,electric power,metallurgy and other industries.





The company mainly imports PLC modules,programmable controllers,servo control systems and DCS spare parts,such as:ABB,AB(Rockwell),GE(General Electric),Bentley,Honeywell Er),Emerson.),Motorola,Invensys,Westinghouse,etc.The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers.We can purchase goods directly from abroad and provide equipment and spare parts from different countries and manufacturers.

We supply goods directly from abroad,without intermediaries,reducing the cost of use.

There is really no medium that can make a difference!!

Shenzhen Changxin Automation-sufficient supply,large spot quantity,guaranteed quality,you can buy with confidence and use with peace of mind~!

If you have any defects or needs for imported PLC and DCS spare parts,please contact our team,we will help you find reliable and high-quality products super quickly,while shortening delivery time to ensure that your equipment can operate normally in the right environment.Just in time.

Professionally provide:PLC programmable control system,distributed control system(DCS),safety instrument system(SIS),ESD system,vibration monitoring system,turbo compressor unit control system(CCS)and other PLC modules,various industrial control systems,system modules,CPU,IO module,DO module,AI module,DI module,network communication module,Ethernet module,motion controller,analog input module,analog output module,digital input module,digital output module,module redundancy,power module,relay output unit,relay input unit,processor unit.

Products are widely used in:electricity,petroleum,mine hoisting,ports,heating,gas,water supply,sewage treatment,metallurgy,papermaking,textile,chemical industry,water conservancy and other modern industrial fields!
