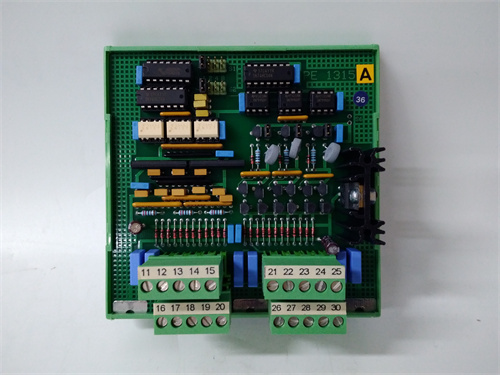

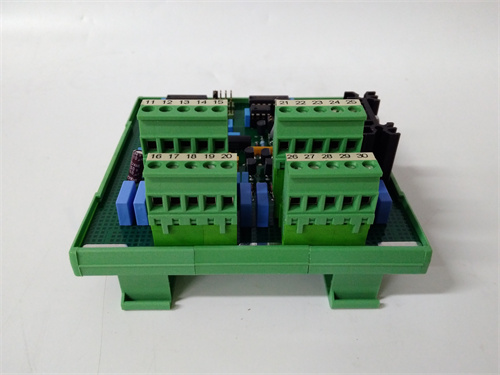

ABB PE1315A is an opto-isolated pulse amplifier produced by ABB.The following is a detailed introduction to it:

1.Basic information

Model:PE1315A

Type:Optically isolated pulse amplifier

Manufacturer:ABB(a leading global supplier of industrial automation and power technology)

2.Technical features

Opto-isolation technology:The use of opto-isolation technology can effectively isolate the electrical connection between the input and output signals,improving the anti-interference ability and safety of the system.Opto-isolation prevents interference and crosstalk between signals,ensuring accurate transmission and processing of signals.

Pulse signal amplification:The main function is to amplify the input pulse signal to the required amplitude to meet the requirements of specific applications.It can increase the amplitude of the pulse signal to ensure that important information is not lost during transmission or processing.

Multi-channel design:PE1315A can adopt a multi-channel design and can process multiple pulse signals at the same time,thereby improving the processing power and efficiency of the system.

High-performance circuit design:The use of high-performance circuit design and high-quality components ensures that the amplifier has the characteristics of low noise,high stability and long life.

Compact design:compact structure,easy installation,while providing complete fault diagnosis and alarm functions,convenient for users to maintain and troubleshoot.

3.Application scenarios

ABB PE1315A optical isolation pulse amplifier has a wide range of applications in many fields,including but not limited to:

Radar system:used to amplify the pulse signal emitted by the radar to provide sufficient power to detect targets and measure distances.

Laser technology:amplify the short pulse signal emitted by the laser to ensure that the laser pulse has the required power and specific pulse shape.

Communication system:In communication,pulse signals are used to enhance data transmission to improve the quality and reliability of the signal.

Laboratory application:plays a key role in various laboratory applications,such as physical experiments,particle accelerators,nuclear magnetic resonance,etc.

4.Technical parameters

Output voltage:5-24V

Current limit:13 mA

Number of channels:can include three channels of A,B and strobe lights

Installation method:manual installation

Program capacity:large capacity

Structure:module structure

Firmware version:V4.5
