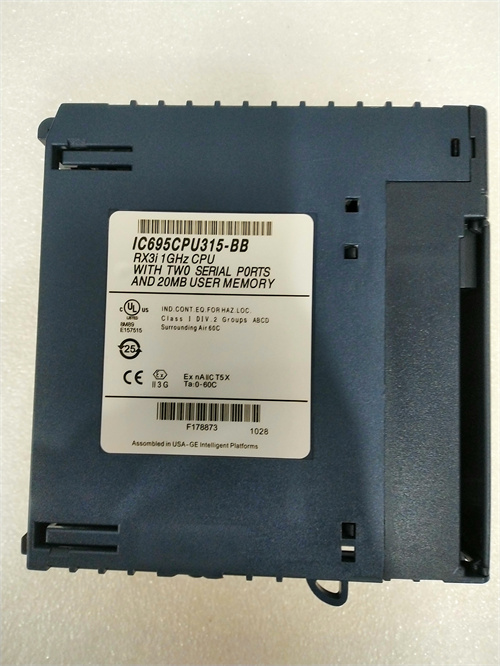

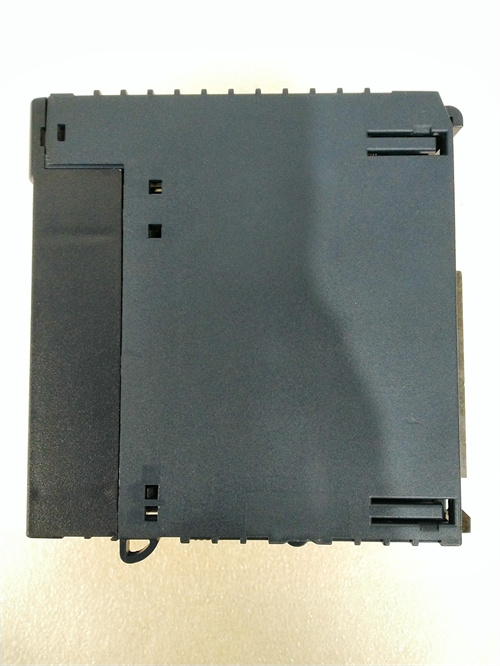

IC695CPU315 is a central processing unit(CPU)module of the PACSystems RX3i series produced by GE Fanuc(now part of GE Digital).The following is a detailed introduction to IC695CPU315:

I.Product OverviewZ

As the core component of the RX3i series,IC695CPU315 is designed to provide high performance,real-time control and scalability to meet the needs of complex control systems in multiple fields such as industrial automation,process control,and manufacturing.

II.Technical Specifications and Performance

Processor:

Adopts Intel Celeron-M microprocessor with a main frequency of 1 GHz.

Memory:

Equipped with 20MB of user memory(RAM)for storing runtime data and programs.

Another 20MB of flash memory is used for non-volatile storage.

I/O Operations:

Capable of up to 32K I/O operations per second to meet high-speed data processing needs.

Program Block Support:

Supports up to 512 program blocks,with a maximum size of 128KB per program block.

Communication interface:

Equipped with two serial ports:one RS-485 serial port and one RS-232 serial port.

Supports SNP,serial I/O,and Modbus slave and master serial protocols.

Backplane and bus:

Use dual backplane bus to communicate with I/O and intelligent option modules.

Supports RX3i PCI and high-speed serial bus.

Power requirements:

Power requirements of 3.3V DC,1A or 5V DC,1.2A.

Operating temperature:

Operating temperature range is 0 to 60 degrees Celsius.

III.Functions and features

Real-time control:

Designed for real-time control of machines,processes and material handling systems.

Programming flexibility:

Programmable in C language,or using IEC-approved ladder logic(ladder diagram),structured text or function block diagram language.

Modular expansion:

Supports modular design,which is convenient for users to flexibly configure and expand according to system requirements.

Ethernet communication:

Rack-based Ethernet interface modules can be used to establish Ethernet communication for remote monitoring and data exchange.

Compatibility:

Compatible with most 90-30 series modules,communication modules and expansion racks.

IV.Application fields

IC695CPU315 is widely used in the following fields:

Industrial automation:used to control and monitor various equipment on the production line to improve production efficiency and product quality.

Process control:regulate various parameters in processes such as chemical plants and refineries to ensure the stability and safety of the production process.

Manufacturing:control manufacturing equipment such as machine tools and production robots to improve manufacturing efficiency and flexibility.

Energy field:control power plants and power distribution systems in power systems and energy production to improve energy utilization efficiency.

Traffic system:used for applications such as traffic signal control and intelligent traffic management to improve traffic fluency and safety.
