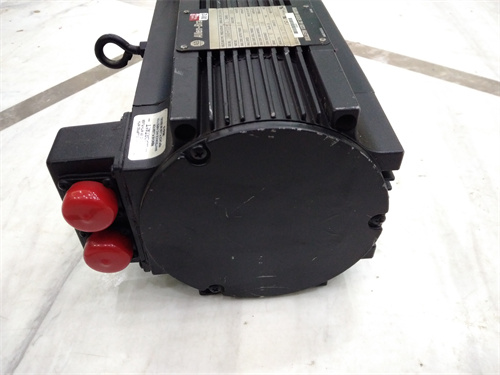

1326AB-B520E-M2L is a servo motor or servo drive produced by Allen-Bradley/Rockwell Automation(the specific name may vary depending on the context,but it is usually used with servo motors to achieve high-precision control).The following is a detailed introduction to the product:

1.Product Overview

Manufacturer:Allen-Bradley/Rockwell Automation

Product Series:Allen-Bradley Servo Motor Bulletin 1326 Series

Model:1326AB-B520E-M2L

2.Technical Features

Permanent magnet technology:The permanent magnet rotor contains a 2-inch long ferrite magnet stack,which allows the motor to operate with low inertia and high servo response.

High-precision control:It has high-precision position,speed and force control capabilities and can be used for precise motion control applications.

Dynamic response:It has fast dynamic response capabilities and can quickly adjust and control the motion system to adapt to changing work requirements.

Multiple control modes:Supports multiple control modes such as position control,speed control,force control,etc.,which can be selected and configured according to specific application requirements.

High-performance protection function:It has multiple protection functions such as overcurrent protection,overheating protection,overvoltage protection,etc.to ensure the safe operation of the system and prevent equipment damage.

Brushless rotary transformer:Provides position,commutation and speed feedback information to enhance the accuracy and stability of control.

Protection level:IP65(when used with shaft seal option),dustproof and can withstand pulse water flow,suitable for use in harsh environments.

III.Product parameters

Operating speed:Up to 3000 RPM.

Rated current:Supports rated current of 4.5 to 6.7 amperes.

Feedback:High-resolution multi-turn feedback.

Installation:Supports vertical shaft upward or downward installation.

Structure:TENV structure.

Encoder output:1391 A four B(optional),up to 2048 ppr,generated by rotary transformer feedback.

Continuous rated output torque:100%at stall(zero rpm).

Precision balanced:Total peak-to-peak displacement is 0.0005º(0.0127 mm).

4.Options and Accessories

Integral spring-retained brake:with 90 V DC coil(-A4,-A5,-A7)or 24 V DC coil(-K4,-K5,-K7).

Brake power supply:1326-MOD-BPS,converts 115 V AC to the voltage required for the 90 V DC brake.

Shaft seal kit:1326AB-MOD-SSV-xx,for field installation of fluoroelastomer shaft seals without disassembly of the motor.

Flange mounting:NEMA imperial(-11)or IEC metric flange mounting(-21)with metric shaft options are available.

5.Applications

The 1326AB-B520E-M2L servo drives are widely used in industrial fields,including manufacturing,automation,robotics,material handling,printing,packaging,and medical equipment.They are used to control various motion equipment such as machines,robotic arms,conveyors,rotary tables,etc.
