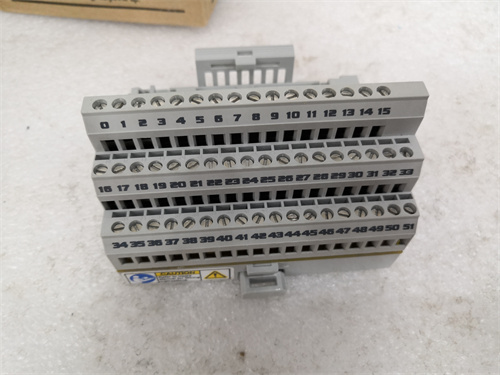

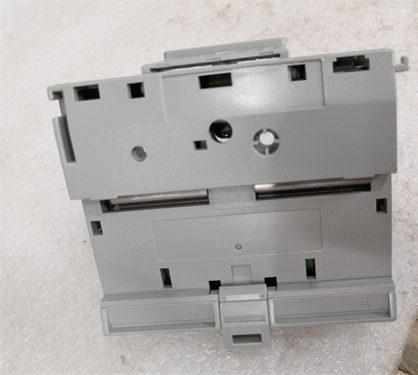

ALLEN BRADLEY 1440-TB-H is a standard dynamic measurement module.Here is a detailed introduction to it:

1.Product Overview

ALLEN BRADLEY 1440-TB-H(sometimes also referred to as 1440-TB-A,both may belong to the same series or have similar functions)is part of the Allen-Bradley XM series and is a device for distributed machine condition protection and monitoring.It is mainly used to measure dynamic inputs such as pressure,vibration,position and strain,and is particularly suitable for monitoring housing,shaft and base vibration in rotating equipment.

2.Product Features

Multi-channel monitoring:

The module usually has multiple channels and can connect multiple sensors to monitor multiple parameters simultaneously.

Wide input compatibility:

Acceptable inputs include non-contact eddy current probes,velocity sensors,standard integrated electronic piezoelectric(IEPE)accelerometers,and DC or AC voltage output measurement devices.

Tachometer input and support:

Supports tachometer input,provides speed measurement and order analysis functions,and is compatible with most tachometer signal sources,such as passive magnetic probes,eddy current probes,and other tachometer sensors(active and passive).

Digital and analog outputs:

Outputs include digital measurements that can communicate over the DeviceNet network,two 4 to 20 mA analog outputs,and an onboard relay.

Advanced alarm and processing capabilities:

Supports advanced alarm relay logic and onboard processing of key vibration parameters.

Stand-alone operation and integration capabilities:

Can operate independently or distribute data to integrated control and automation systems to protect machines or notify operators when machines fail.

III.Application areas

ALLEN BRADLEY 1440-TB-H dynamic measurement module is widely used in various industrial fields,especially in scenarios where accurate monitoring of the status of rotating equipment is required,such as manufacturing,energy,chemical,oil,natural gas and other industries.It can help users detect potential problems with equipment in a timely manner and improve the reliability and safety of equipment.

IV.Operation and Supporting Equipment

Operation Requirements:

The operation of this module usually requires an XM-940 Dynamic Measurement Module Terminal Unit,but this unit is not included in the module packaging.

Supporting Equipment:

The XM-940 Module Base Unit is a base unit mounted on a DIN rail that provides termination for the field wiring required for the XM Vibration Module,including the 1440-TB-H Standard Dynamic Measurement Module.
